Noise Diagnosis - Air Conditioning System

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

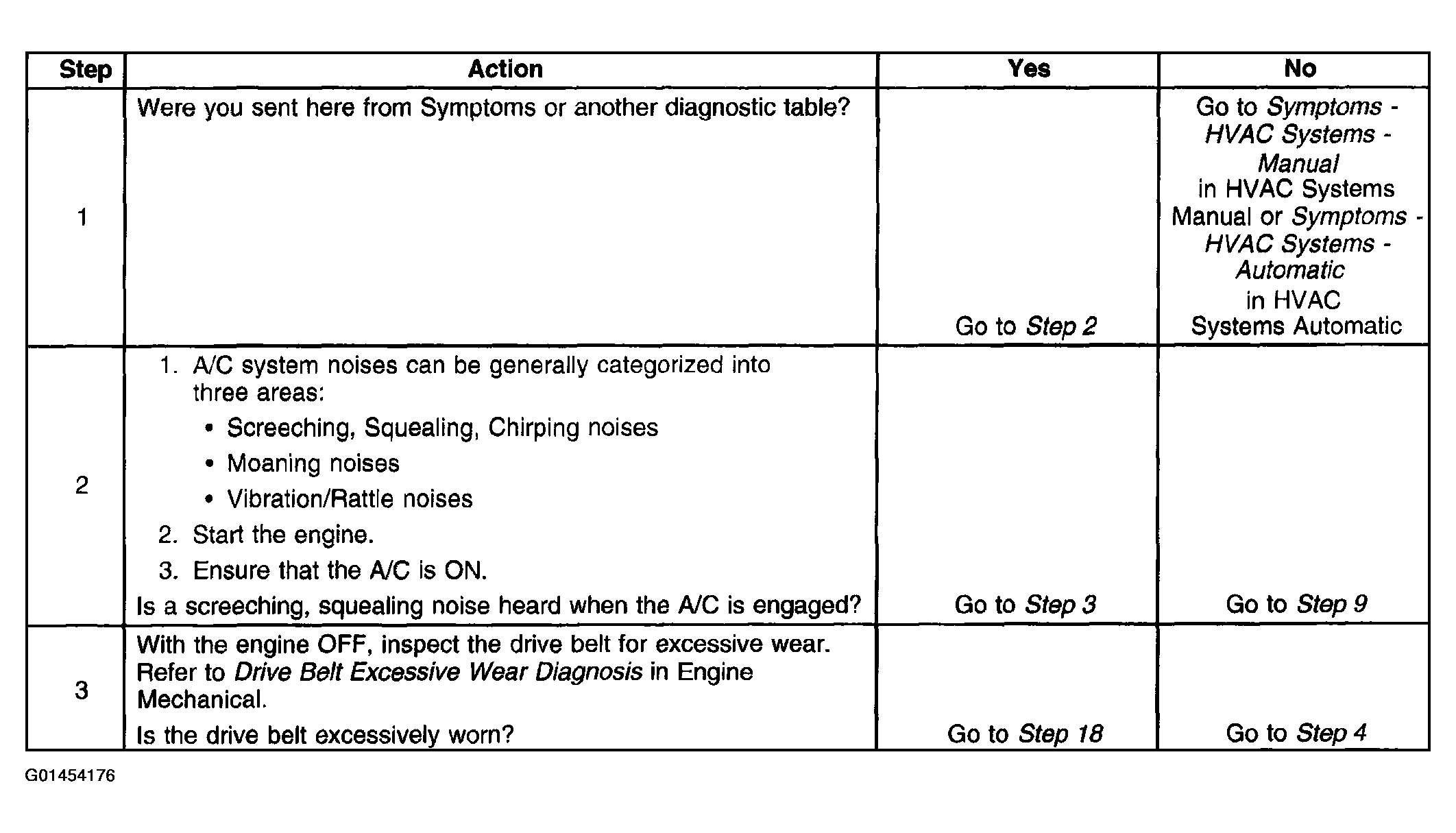

Fig 1: Diagnosis Procedure Noise - Air Conditioning System (Step 1 To 3)

Courtesy of GENERAL MOTORS CORP.

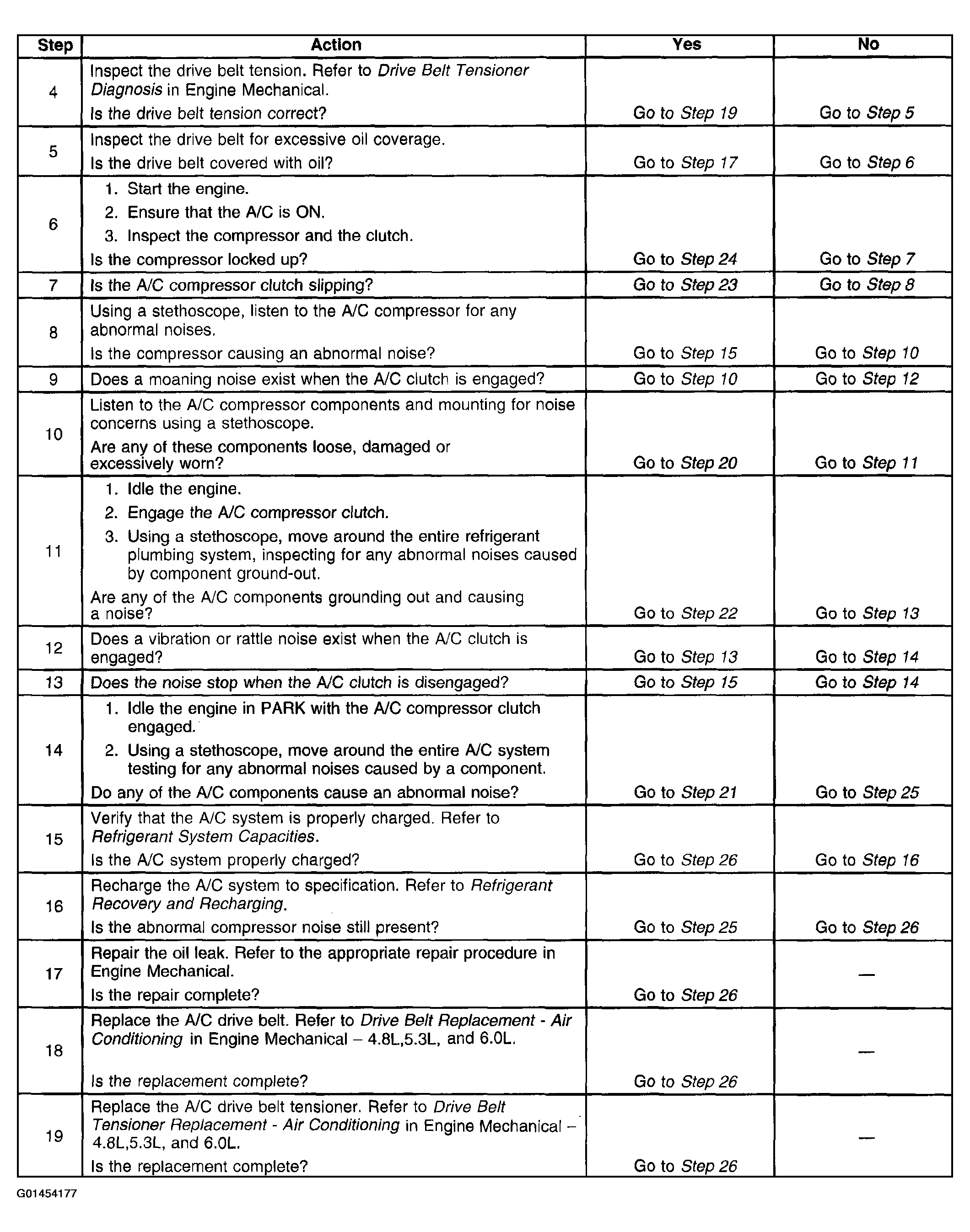

Fig 2: Diagnosis Procedure Noise - Air Conditioning System (Step 4 To 19)

Courtesy of GENERAL MOTORS CORP.

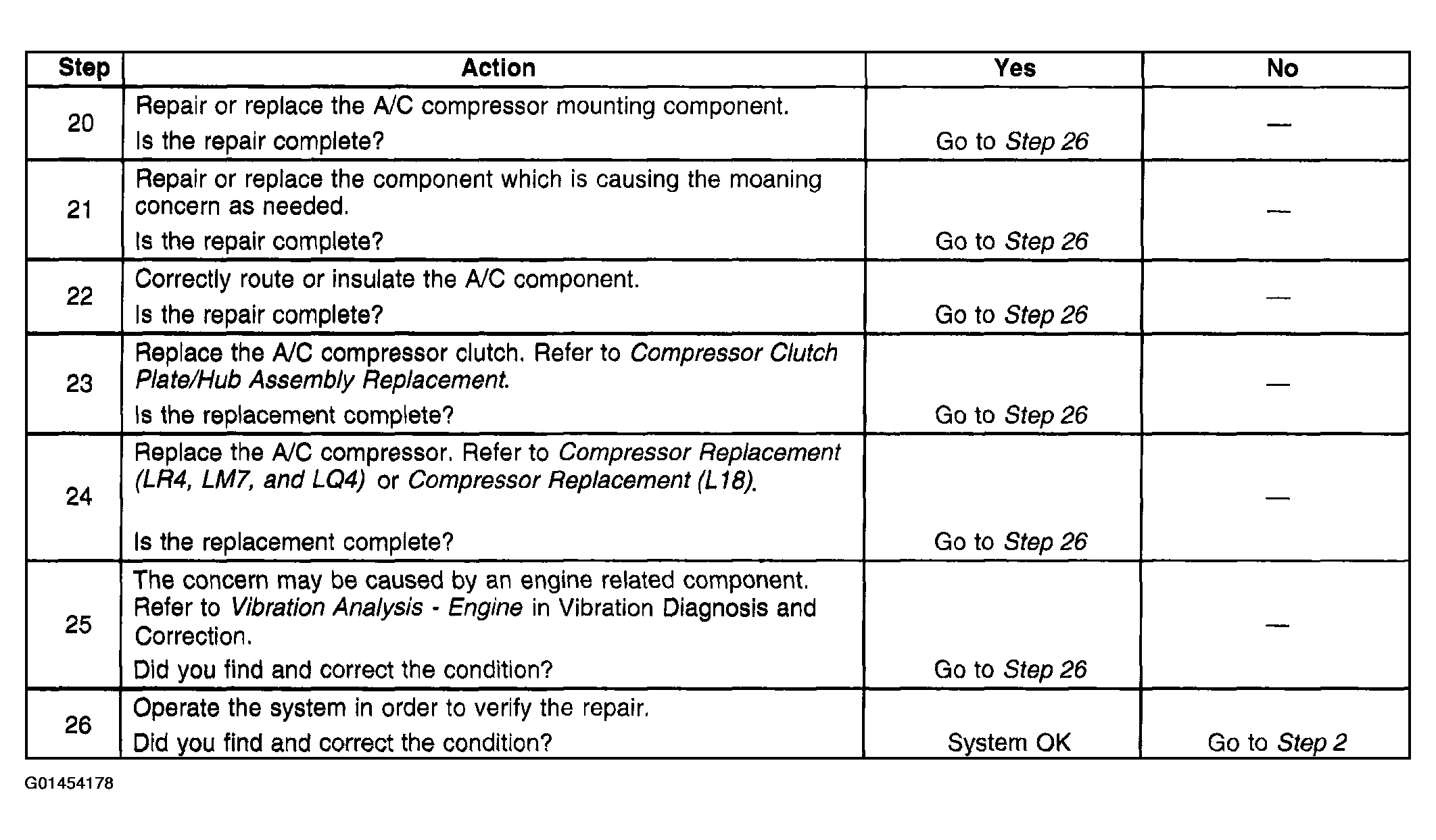

Fig 3: Diagnosis Procedure Noise - Air Conditioning System (Step 20 To 26)

Courtesy of GENERAL MOTORS CORP.
