Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move the front seat to the full forward position.

    Important:  Do not remove the seat back cover from the head restraint retainers.

  2. Remove the seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT - FRONT in SEAT SYSTEM .
  3. Separate the seat foam from the cardboard to gain access to the retainer on the seat belt side.
  4. Remove the seat belt side cardboard retainers.
  5. Move the cardboard outwards to gain access to the lower seat belt retractor bolt.
  6. Remove the retractor bolt.
  7. Remove the retractor tower retaining screw.
  8. Remove the retractor tower cover.

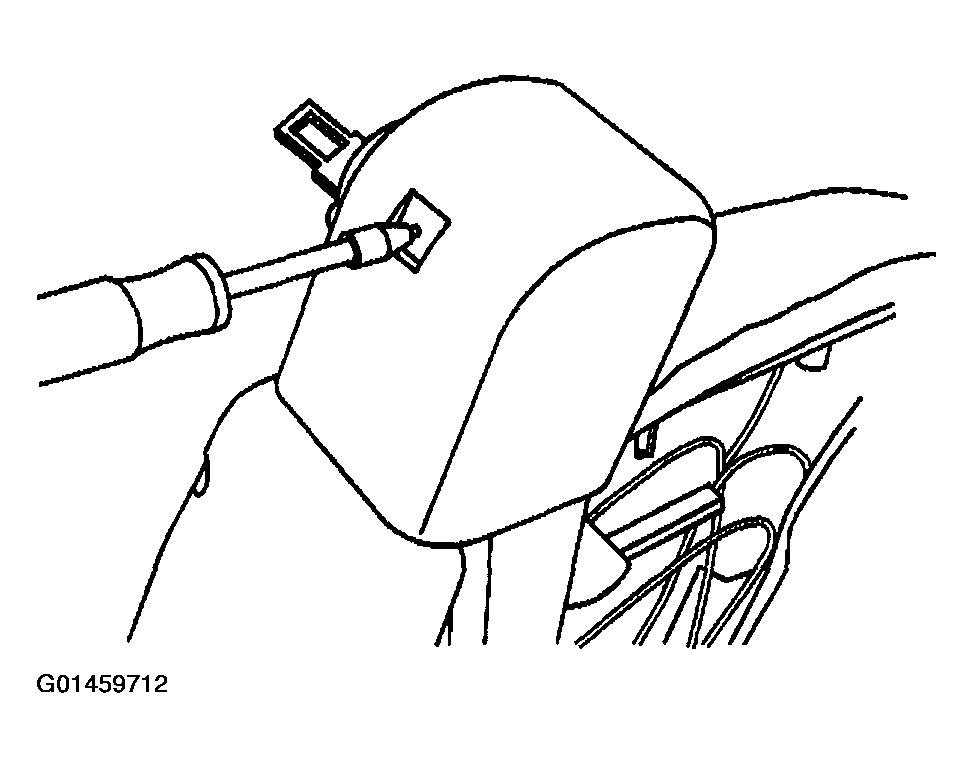

    Fig 1: Removing Retractor Tower Cover
    G01459712Courtesy of GENERAL MOTORS CORP.
  9. Remove the upper anchor bolt.
  10. Remove the retractor from the seat.

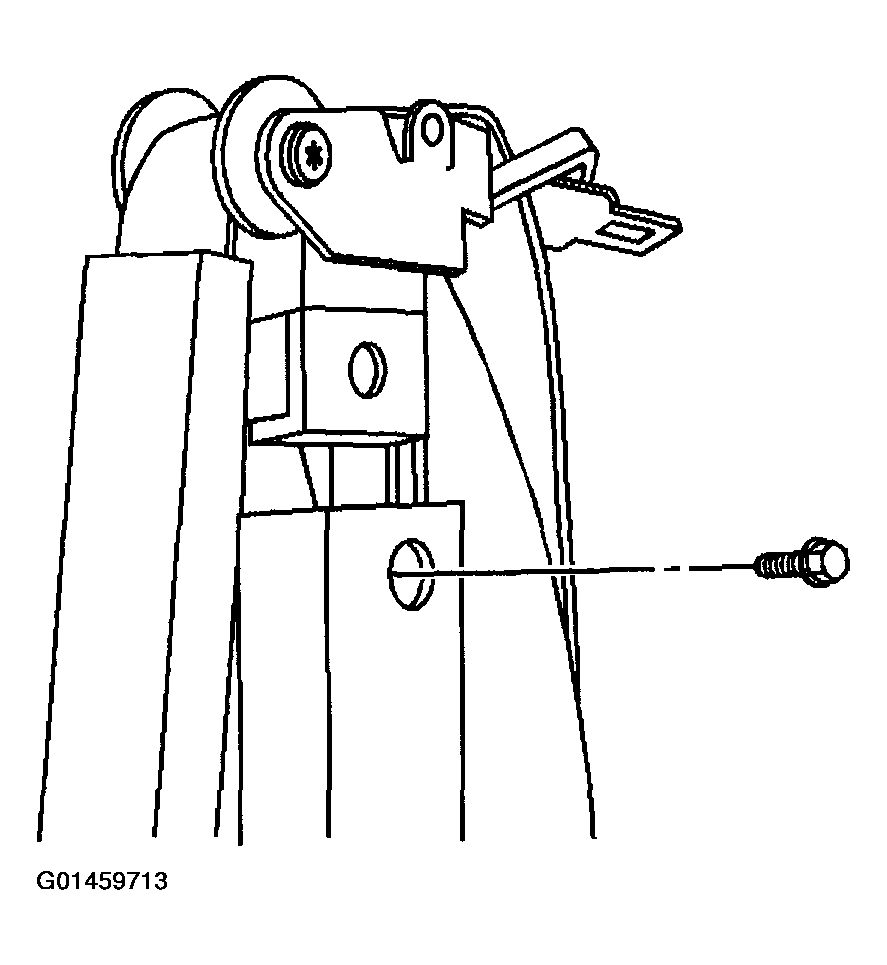

    Fig 2: Removing Upper Anchor Bolt
    G01459713Courtesy of GENERAL MOTORS CORP.
