Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the retractor.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the seat belt retractor bolt (1) to the seat frame.

    Tighten

    1. Tighten the bolt to 53 N.m (39 lb ft).
  3. Install the seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT - REAR (50/50 SPLIT - 60/40 SPLIT) or SEAT BACK COVER AND PAD REPLACEMENT - REAR (BENCH) in SEAT SYSTEM .

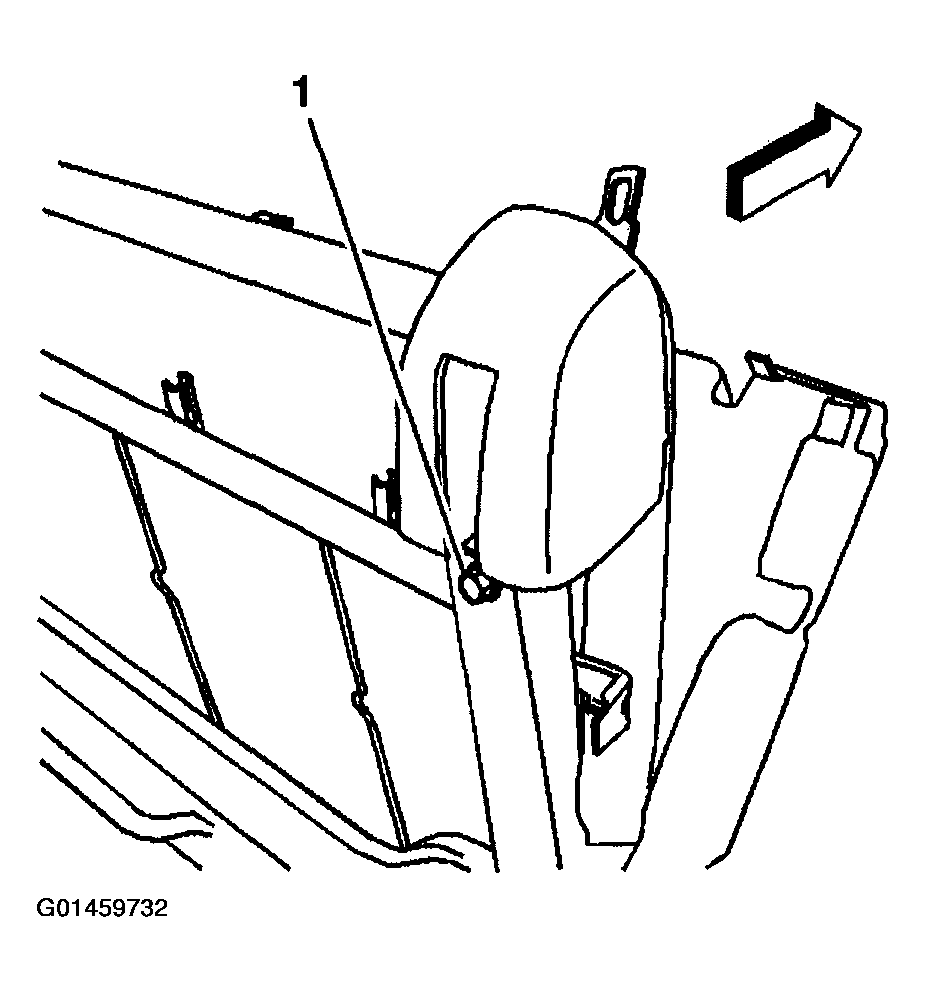

    Fig 1: Installing Seat Belt Retractor Bolt To Seat Frame
    G01459732Courtesy of GENERAL MOTORS CORP.
