Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the buckle and the latch to the seat frame.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the buckle bolts.

    Tighten

    1. Tighten the bolts to 53 N.m (39 lb ft).
  3. Connect the seat cushion cover by joining the cushion trim J-strips.

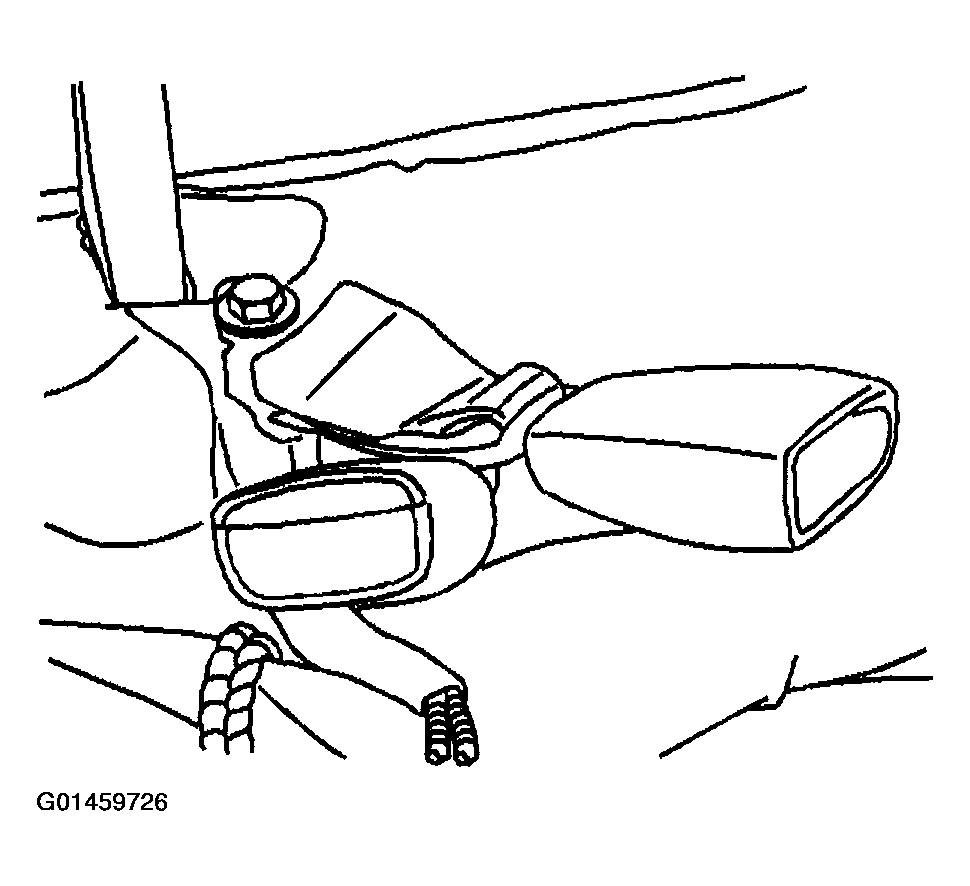

    Fig 1: Installing Buckle And Latch To Seat Frame
    G01459726Courtesy of GENERAL MOTORS CORP.
  4. Install the handle mounting screws (1).

    Tighten

    1. Tighten the screws to 7 N.m (61 lb in).
  5. Install the seat back frame. Refer to SEAT BACK FRAME REPLACEMENT - REAR (60/40 SPLIT - 50/50 SPLIT) or SEAT BACK FRAME REPLACEMENT - REAR (BENCH) in SEAT SYSTEM .

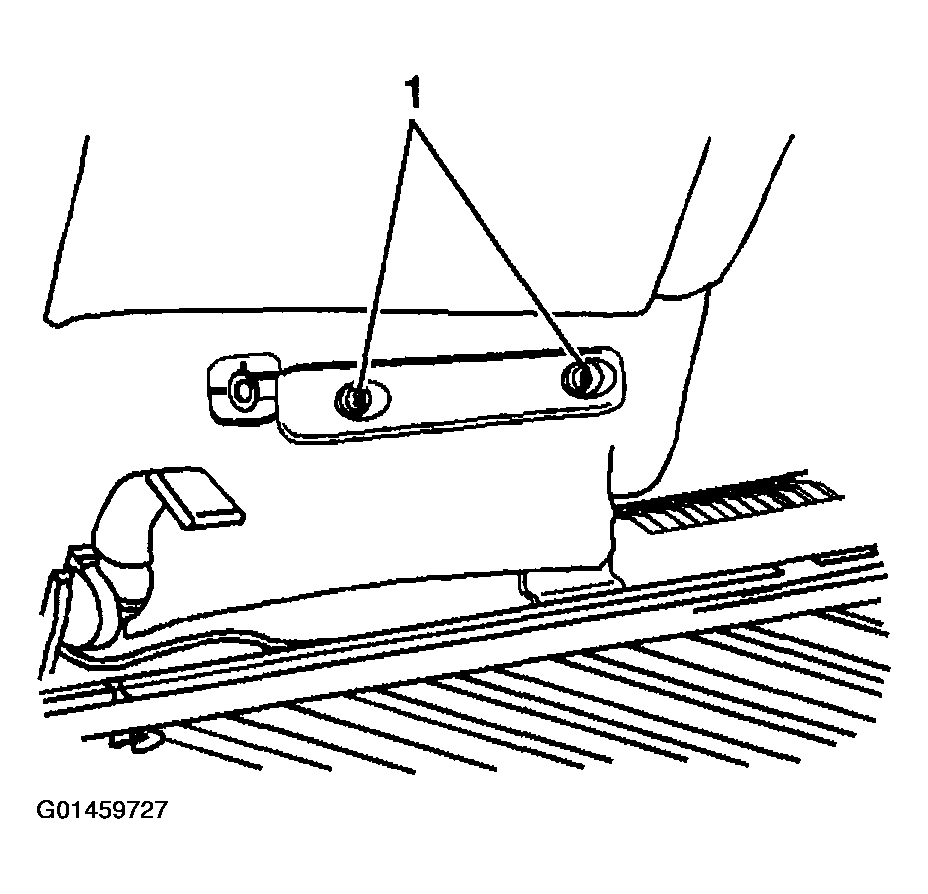

    Fig 2: Installing Handle Mounting Screws
    G01459727Courtesy of GENERAL MOTORS CORP.
  6. Install the retractor mounting bolt (2).

    Tighten

    1. Tighten the bolt to 53 N.m (39 lb ft).
  7. Install the seatbelt retractor bolt cover (1).
  8. Install the seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT - REAR (50/50 SPLIT - 60/40 SPLIT) or SEAT BACK COVER AND PAD REPLACEMENT - REAR (BENCH) .
  9. Install the headrests. Refer to HEAD RESTRAINT REPLACEMENT (CADILLAC) or HEAD RESTRAINT REPLACEMENT (NON-CADILLAC) or HEAD RESTRAINT REPLACEMENT (FOLDING) in SEAT SYSTEM .

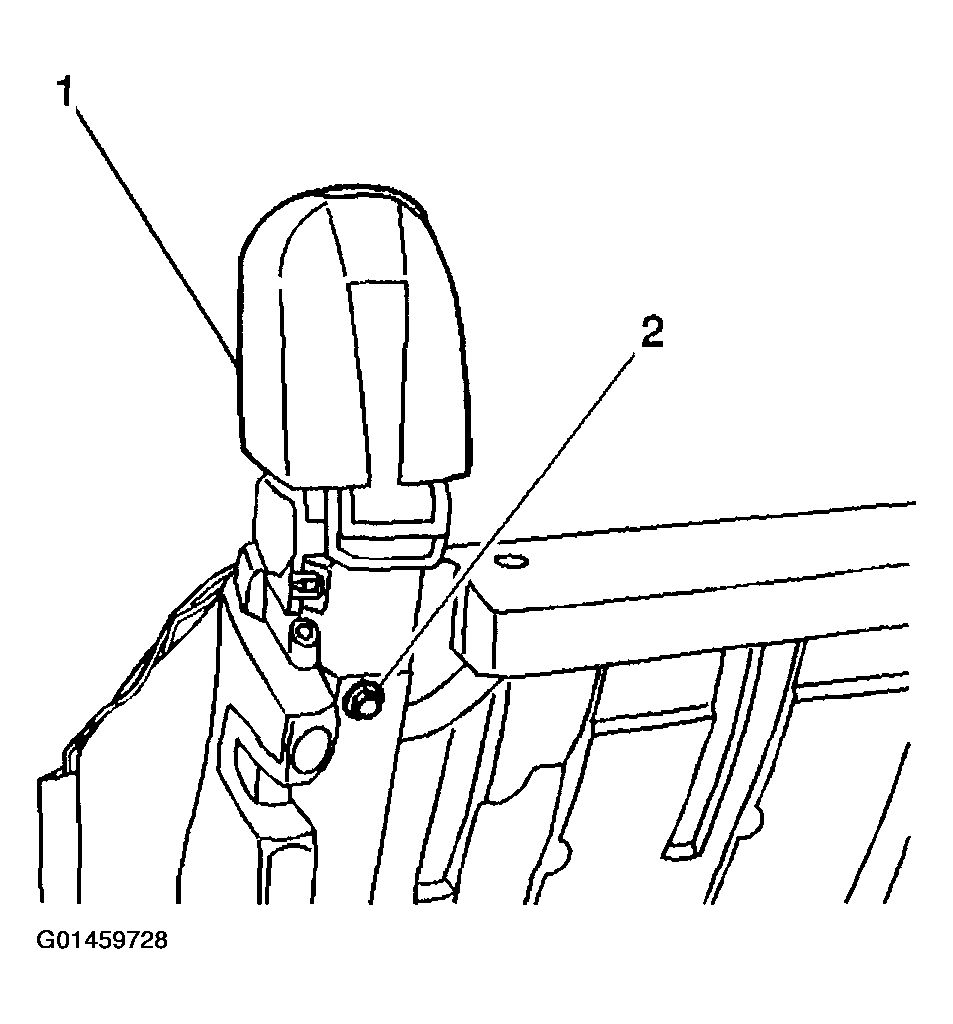

    Fig 3: Installing Retractor Mounting Bolt
    G01459728Courtesy of GENERAL MOTORS CORP.
  10. Install the seat belt anchor bolt (1) to the cushion frame.

    Tighten

    1. Tighten the bolt to 53 N.m (39 lb ft).

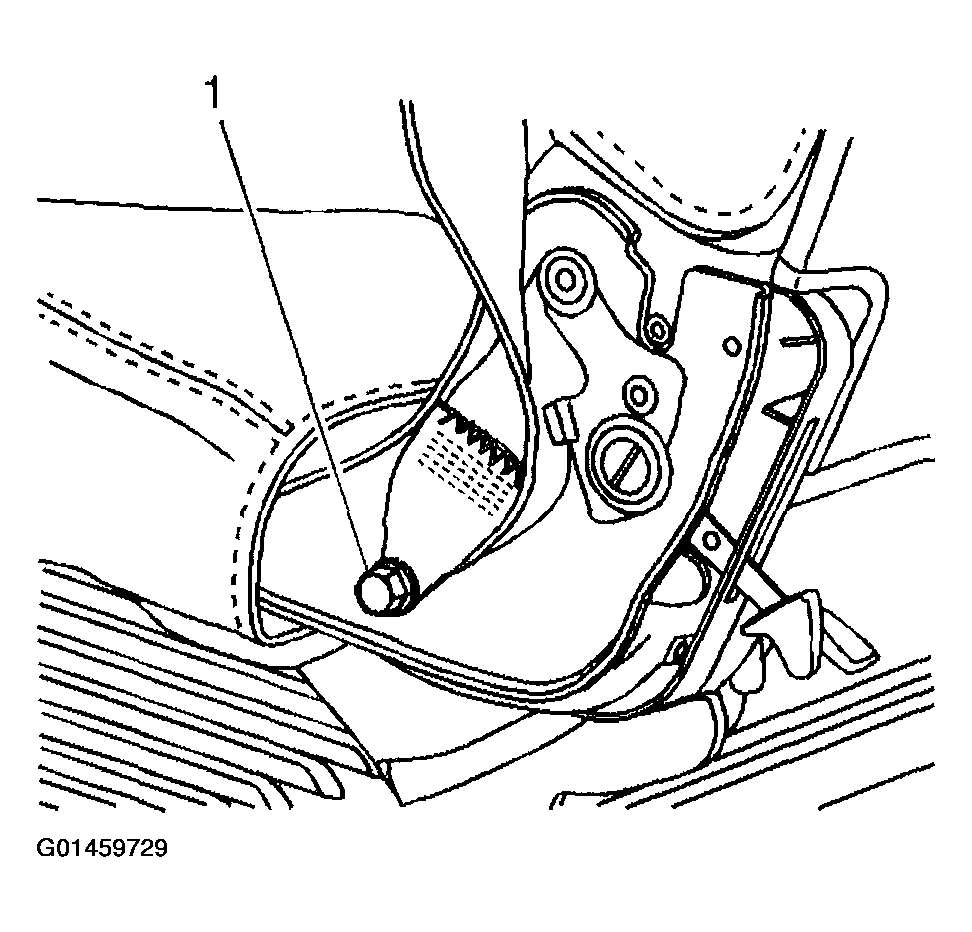

    Fig 4: Installing Seat Belt Anchor Bolt To Cushion Frame
    G01459729Courtesy of GENERAL MOTORS CORP.
  11. Install the latch cover (1) to the seat.

    Tighten

    1. Tighten the screw to 2 N.m (18 lb in).
  12. In order to secure the seat back, manually rotate the center latch. Rotate the latch until the seat back clicks into position.
  13. Install the seat to the vehicle. Refer to SEAT REPLACEMENT - REAR NO. 2 or SEAT REPLACEMENT - REAR NO. 2 - 50-50 in SEAT SYSTEM .

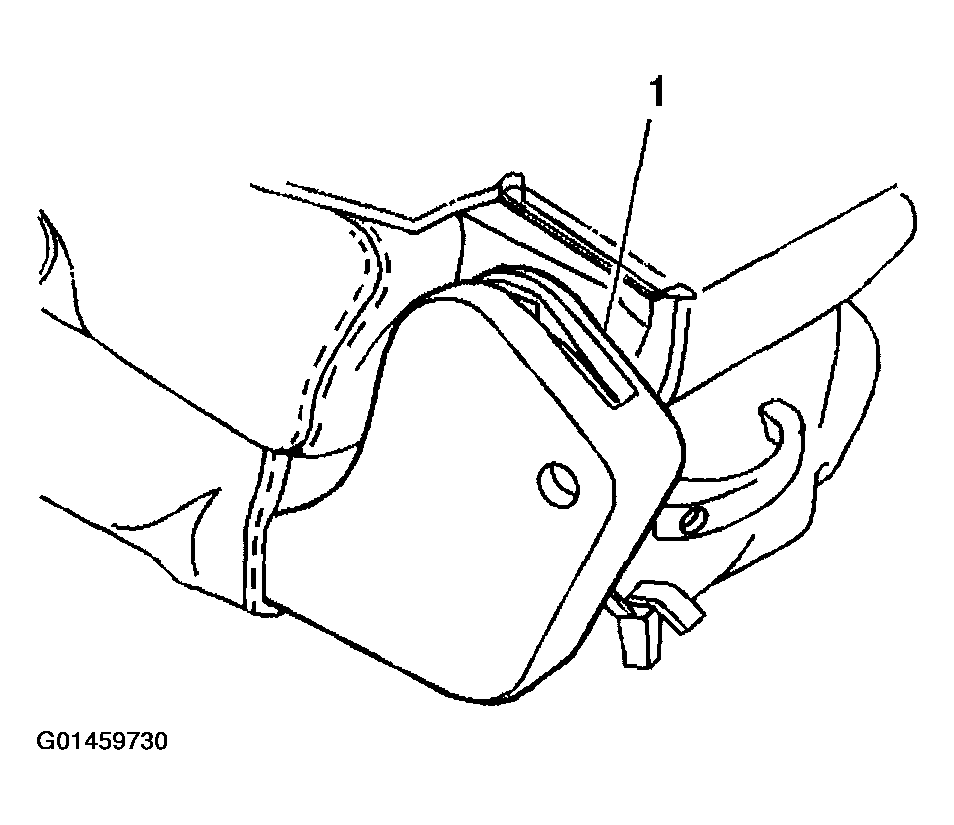

    Fig 5: Installing Latch Cover To Seat
    G01459730Courtesy of GENERAL MOTORS CORP.
