Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center front seat belt latch bolt.

    Remove the seat belt latch assembly from the vehicle.

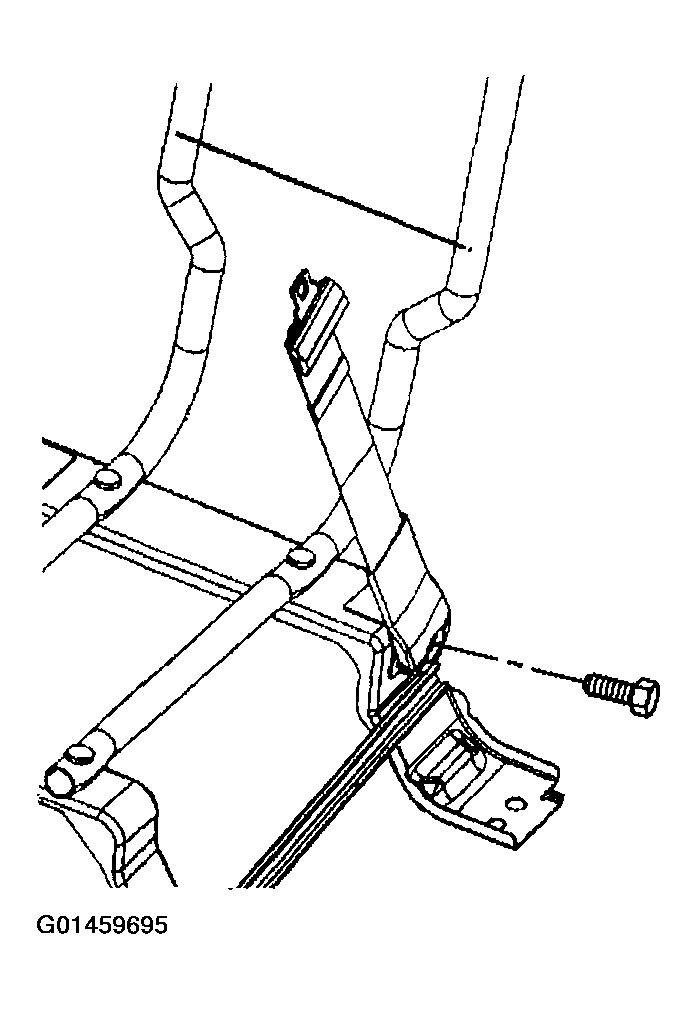

    Fig 1: Removing Center Front Seat Belt Latch Bolt
    G01459695Courtesy of GENERAL MOTORS CORP.
  2. Remove the center front seat belt buckle bolt.
  3. Remove the buckle assembly from the seat.

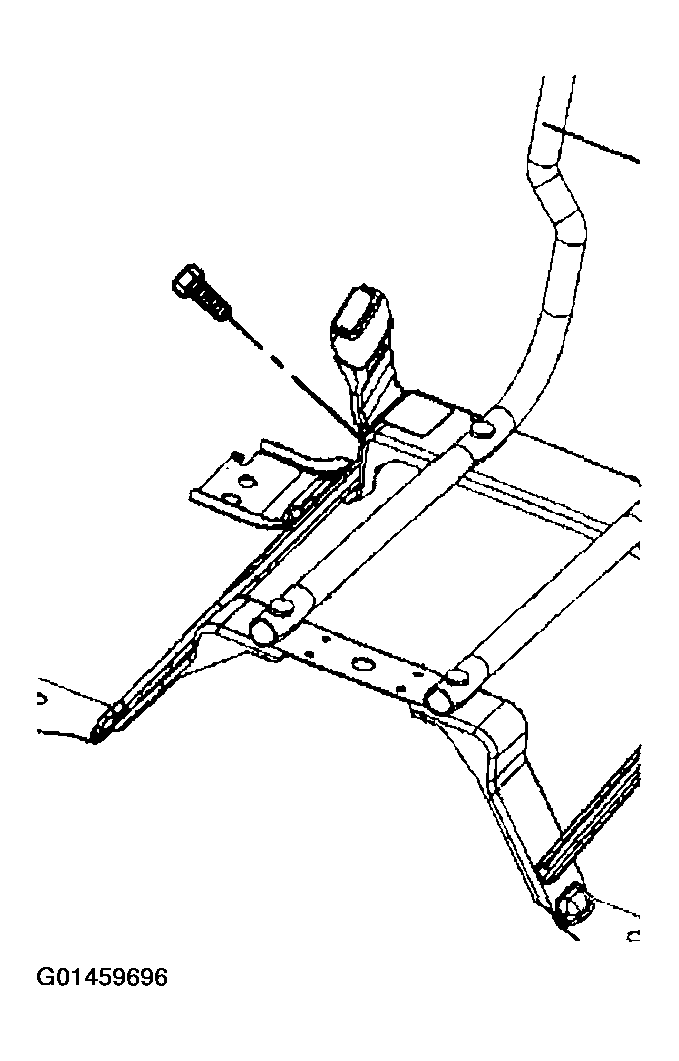

    Fig 2: Removing Center Front Seat Belt Buckle Bolt
    G01459696Courtesy of GENERAL MOTORS CORP.
