Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the buckles to the seat frame.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolt (1) to the buckle assembly.

    Tighten

    1. Tighten the bolt to 53 N.m (39 lb in).
  3. 3. Install the seat cushion cover. Refer to SEAT CUSHION COVER AND PAD REPLACEMENT - REAR (60/40 SPLIT - 50/50 SPLIT) or SEAT CUSHION COVER AND PAD REPLACEMENT - REAR (BENCH) in SEAT SYSTEM s.

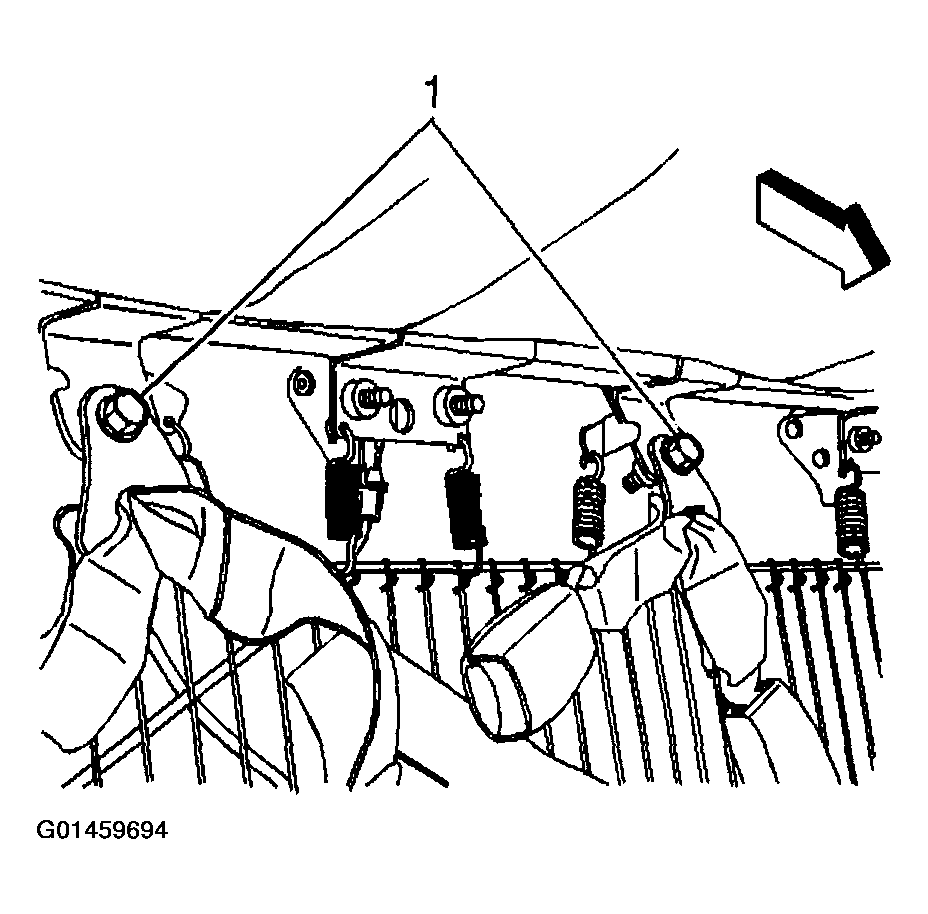

    Fig 1: Installing Bolt To Buckle Assembly
    G01459694Courtesy of GENERAL MOTORS CORP.
