Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disengage the J-Clips on the back of the seat cushion frame in order to gain access to the bolts.
  2. Remove the bolts (1) from the rear seat riser assembly (2).
  3. Disconnect the cable (3) from the riser assembly.
  4. Remove the riser assembly from the seat frame.

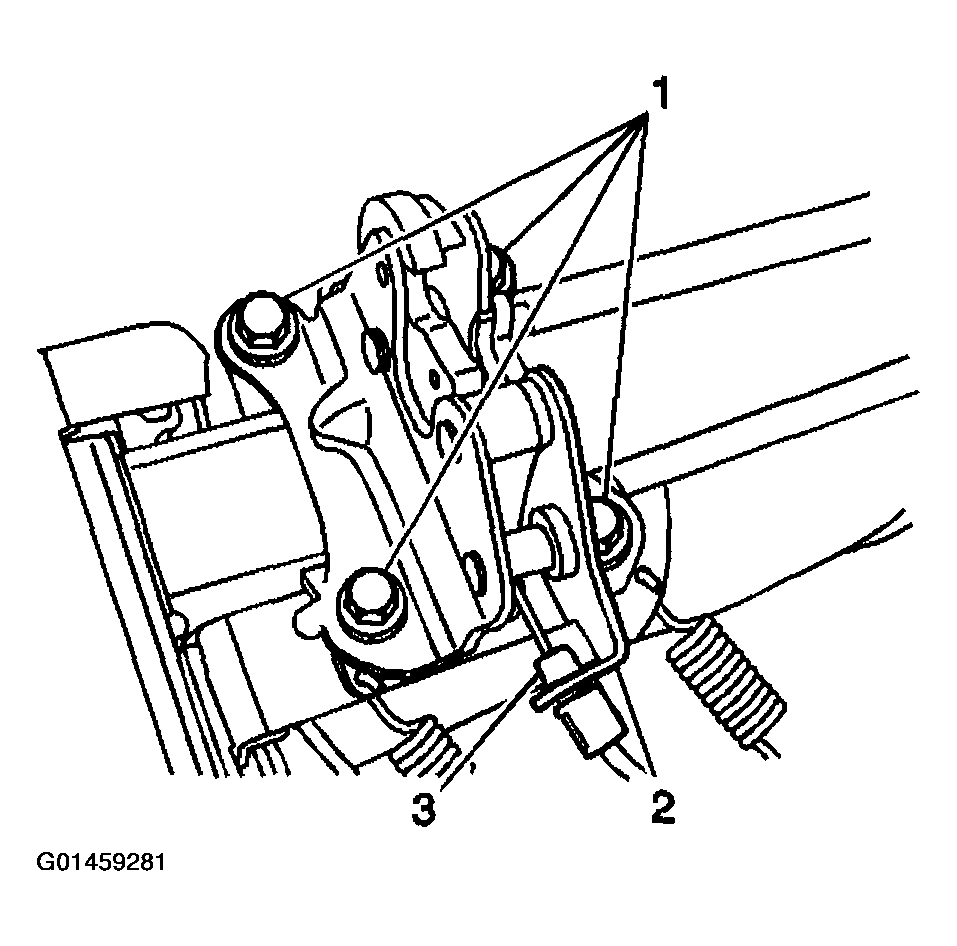

    Fig 1: Removing Bolts From Rear Seat Riser Assembly
    G01459281Courtesy of GENERAL MOTORS CORP.
