Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If the passenger seat cushion foam is damaged when you remove the heater element, replace the passenger presence system in order to prevent personal injury.
  1. Remove the seat trim panel. Refer to TRIM PANEL REPLACEMENT - FRONT SEAT  .
  2. Remove the seat cushion trim cover. Refer to SEAT CUSHION TRIM COVER AND PAD REPLACEMENT  .
  3. Peel the seat cushion heater off of the pad.
  4. Disconnect the seat cushion heater wiring harness.

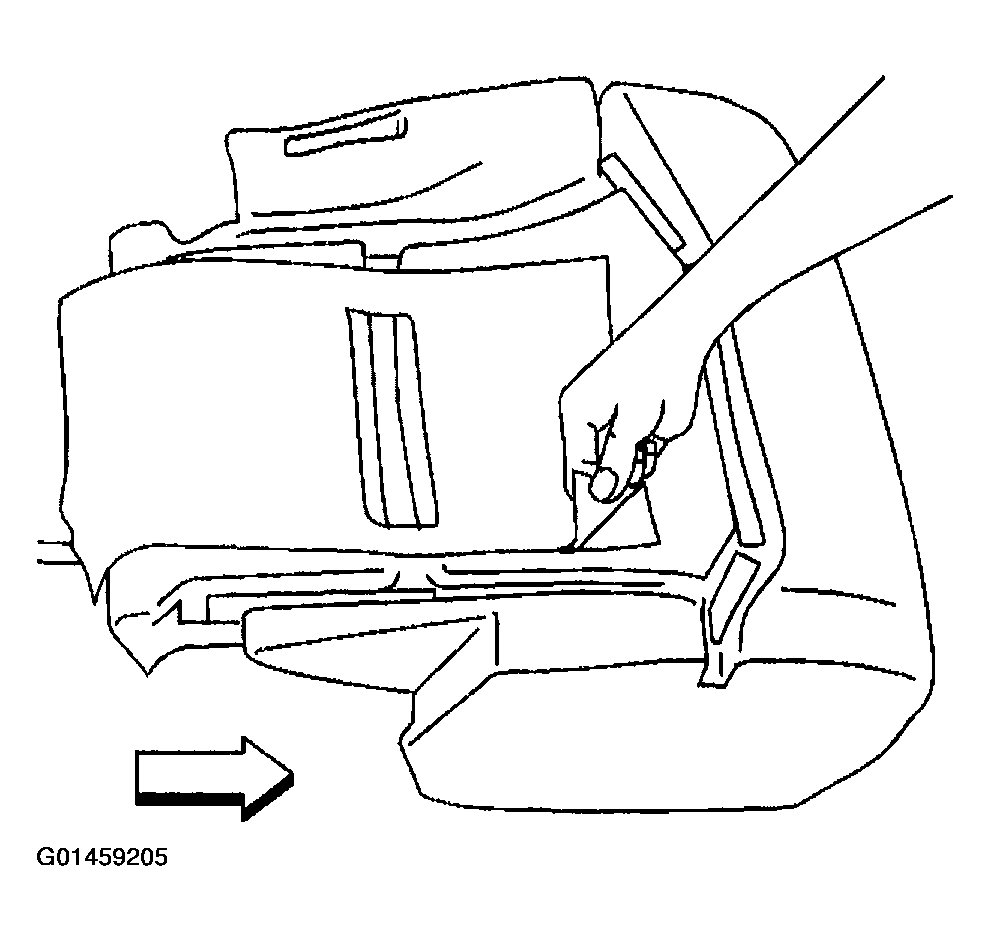

    Fig 1: Removing Seat Cushion Trim Cover
    G01459205Courtesy of GENERAL MOTORS CORP.
