Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat cushion frame (5).

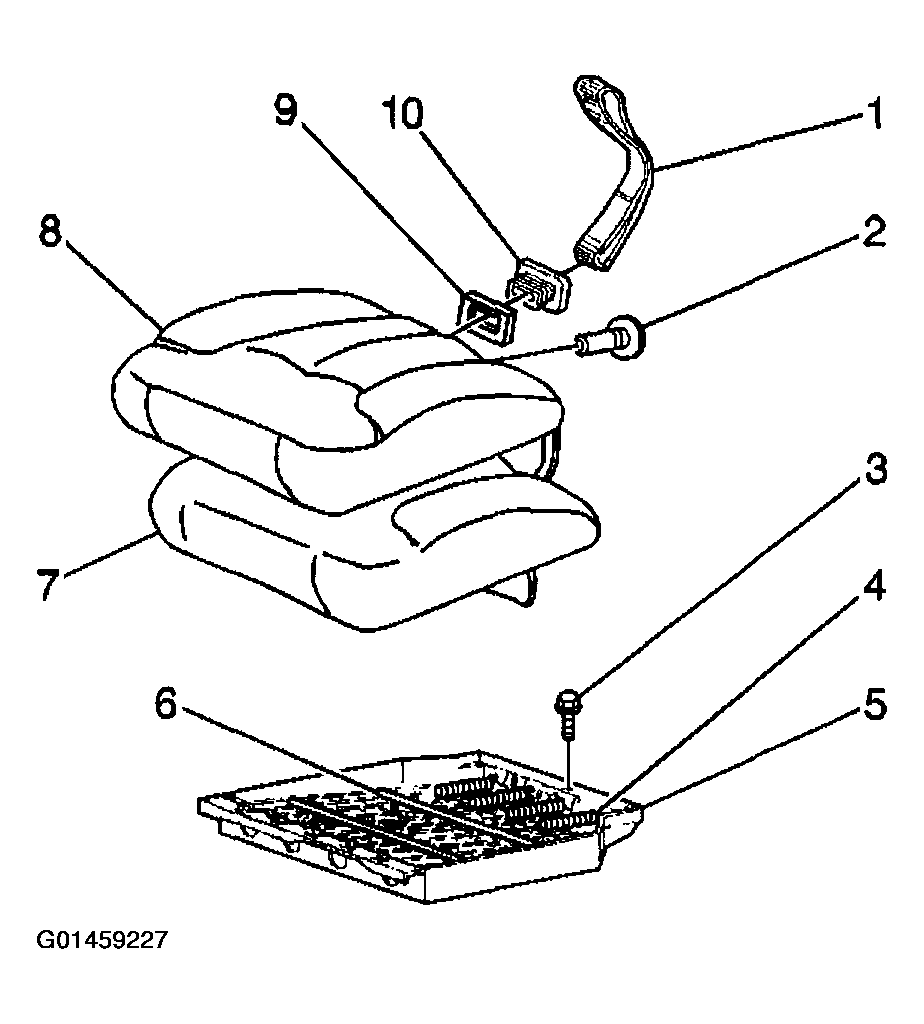

    Fig 1: Installing Seat Cushion Frame
    G01459227Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the bolts to the hinge assembly, if removed.

    Tighten

    1. Tighten to 7 N.m (61 lb in).
  3. Install the seat cushion trim cover (8) and the pad (7). Refer to SEAT CUSHION COVER AND PAD REPLACEMENT - REAR (60/40 SPLIT - 50/50 SPLIT)  or SEAT CUSHION COVER AND PAD REPLACEMENT - REAR (BENCH)  .

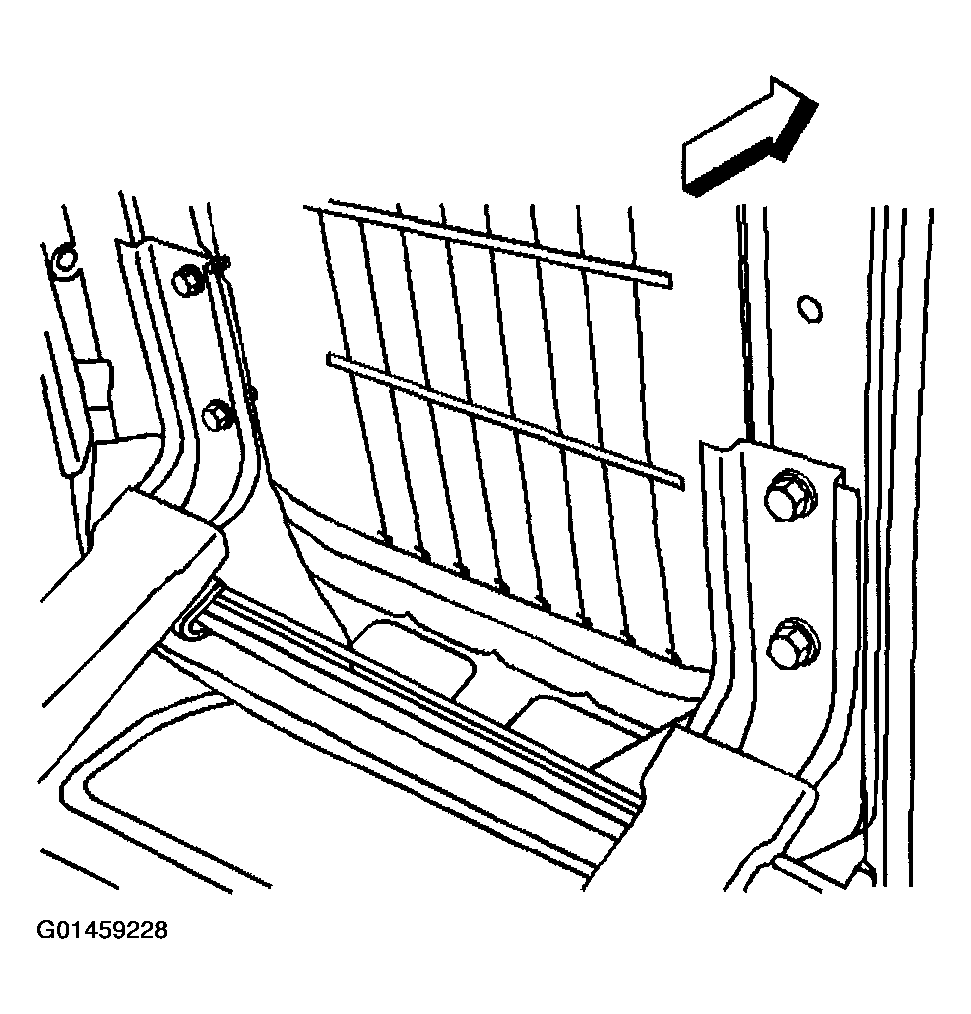

    Fig 2: Installing Seat Cushion Trim Cover And Pad
    G01459228Courtesy of GENERAL MOTORS CORP.
