Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat from the vehicle. Refer to SEAT REPLACEMENT - REAR NO. 2  .
  2. Remove the J-Clips from the back of the seat.
  3. Remove the bolts (2) from the grab handle (1).

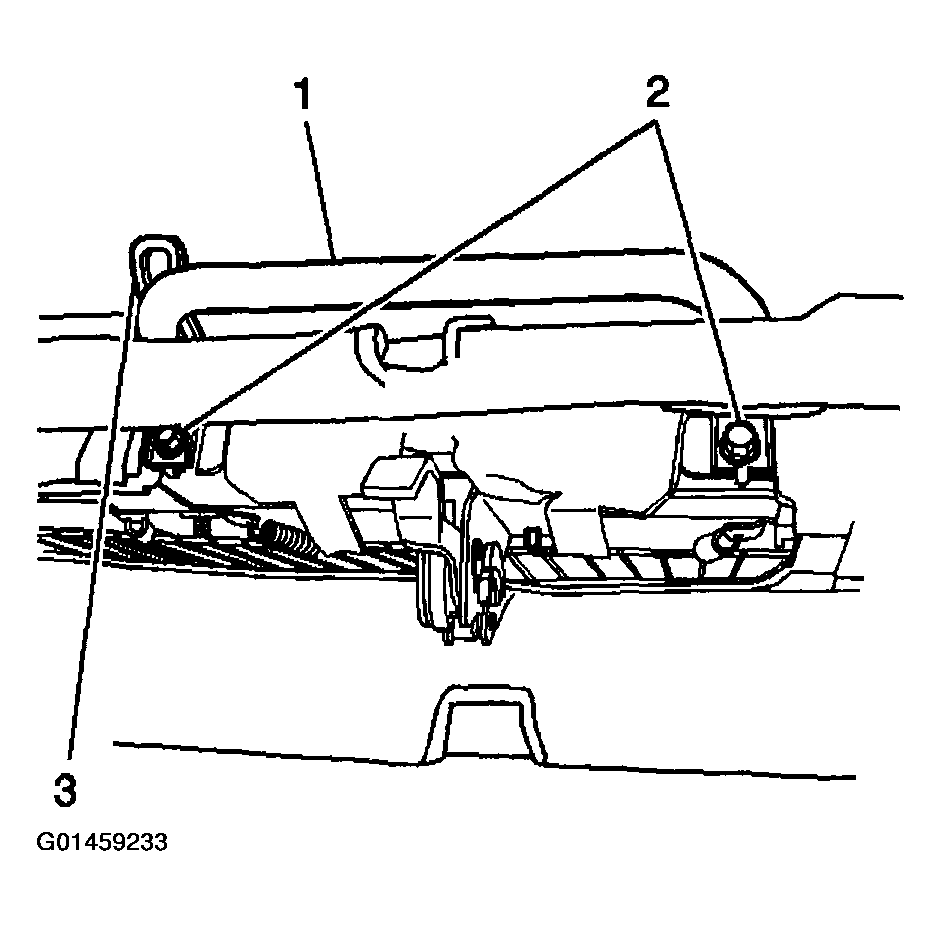

    Fig 1: Removing Bolts From Grab Handle
    G01459233Courtesy of GENERAL MOTORS CORP.
  4. Remove the support rod (1) from the bottom of the seat.

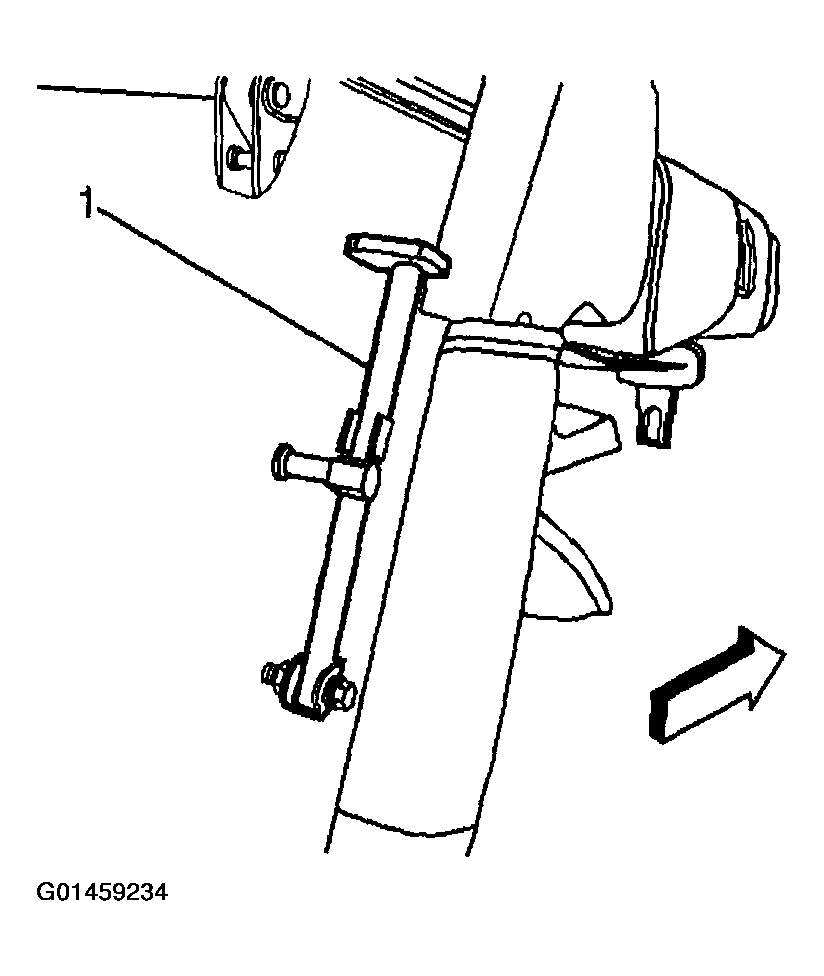

    Fig 2: Removing Support Rod From Bottom Of Seat
    G01459234Courtesy of GENERAL MOTORS CORP.
  5. Loosen the bolts (1) on the roller assembly (2) but do not remove.
  6. Remove the seat cushion cover and pad from the seat frame.

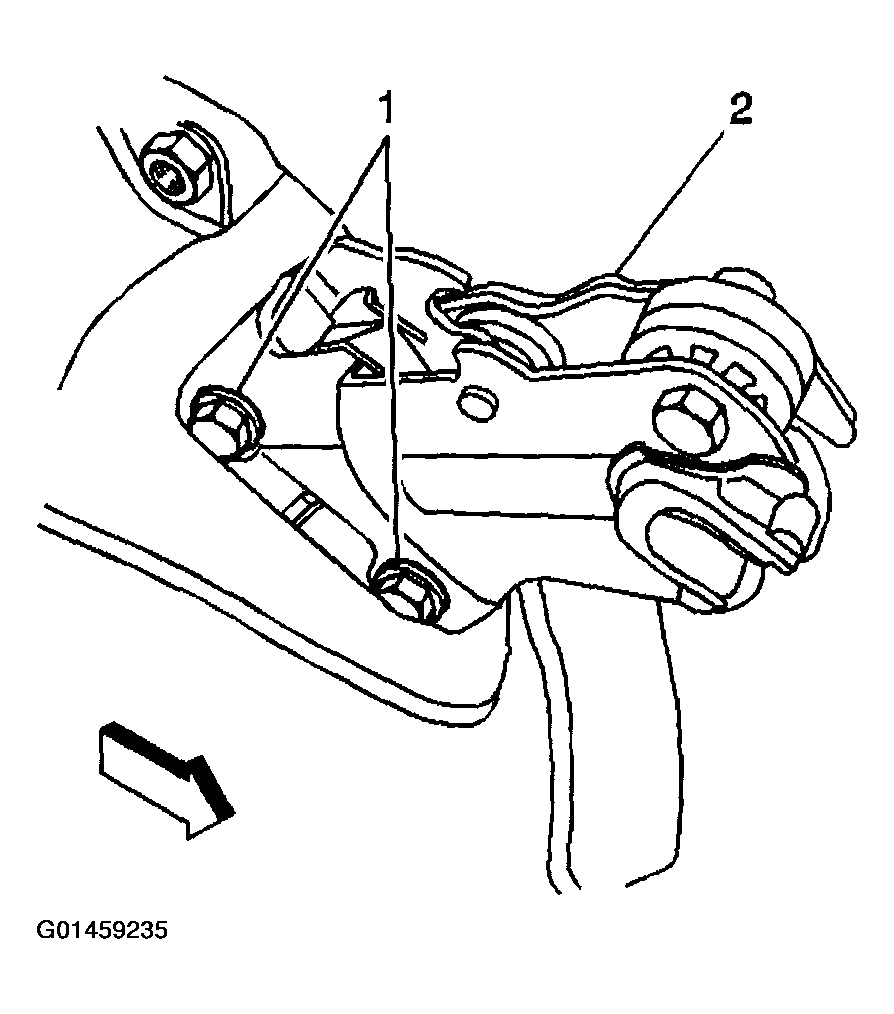

    Fig 3: Removing Bolts On Roller Assembly
    G01459235Courtesy of GENERAL MOTORS CORP.
