Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat from the vehicle. Refer to SEAT REPLACEMENT - REAR NO. 2  .
  2. Remove the headrests. Refer to HEAD RESTRAINT REPLACEMENT (CADILLAC)  or HEAD RESTRAINT REPLACEMENT (NON-CADILLAC)  or HEAD RESTRAINT REPLACEMENT (FOLDING)  .
  3. Remove the side trim plate and screws (1).
    Fig 1: Removing Side Trim Plate And Screws
    G01459241Courtesy of GENERAL MOTORS CORP.

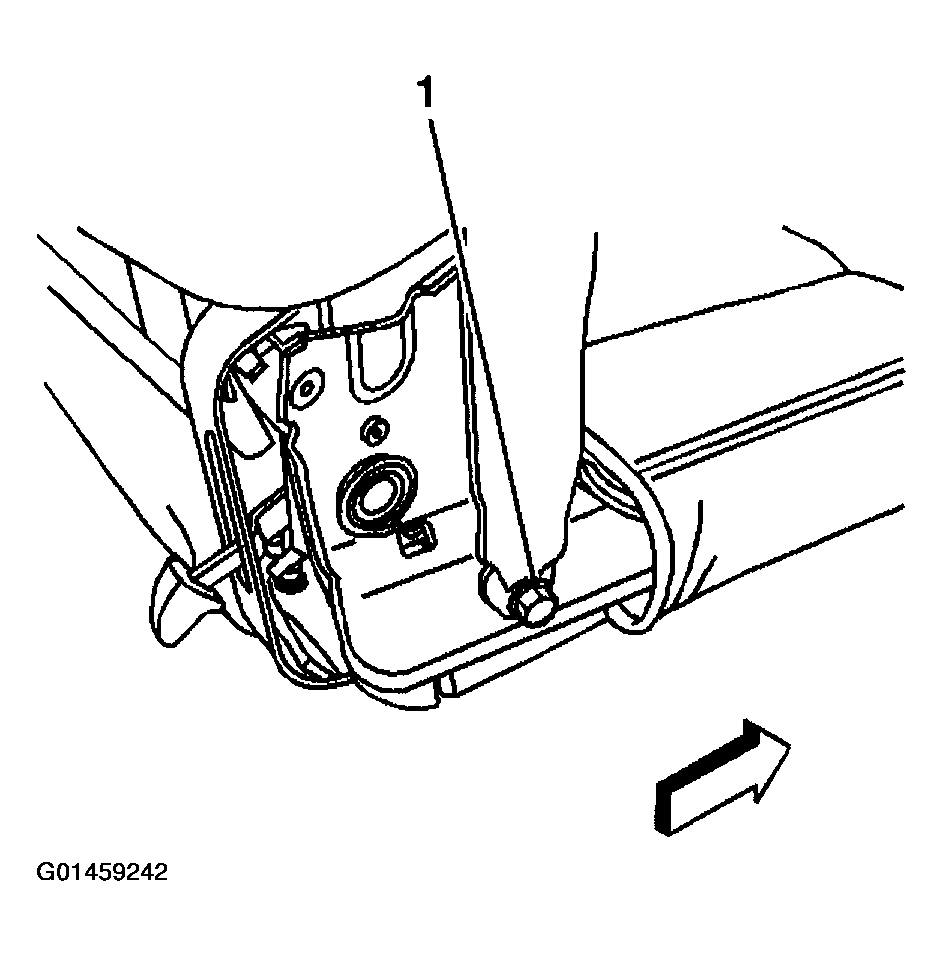

  4. Remove the seat belt anchor bolt (1).
    Fig 2: Removing Seat Belt Anchor Bolt
    G01459242Courtesy of GENERAL MOTORS CORP.

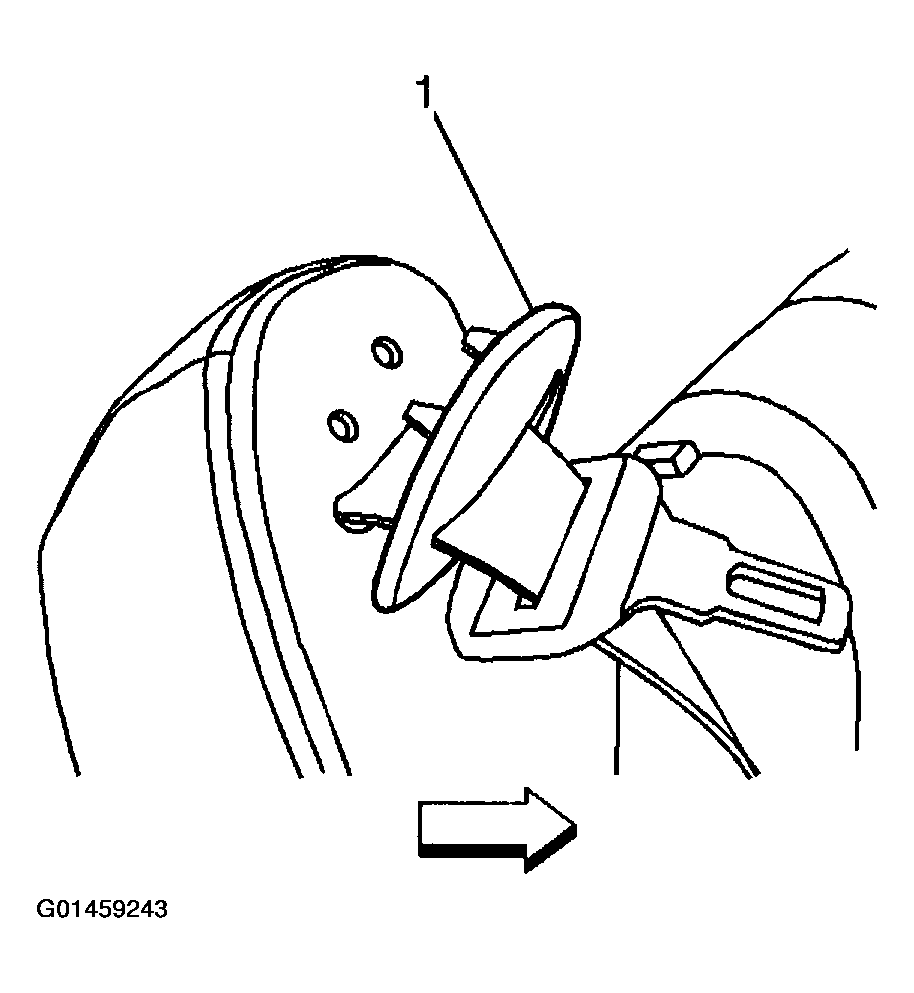

  5. Remove the plastic seat belt guides (1).
    Fig 3: Removing Plastic Seat Belt Guides
    G01459243Courtesy of GENERAL MOTORS CORP.
  6. Release the J-Clips from the trim.
  7. Remove the plastic pushpin (1) from the side seat belt guide.
  8. Remove the head restraint retainers.
  9. Remove the seat back cover and pad from the frame.
    Fig 4: Removing Plastic Pushpin From Side Seat Belt Guide
    G01459244Courtesy of GENERAL MOTORS CORP.
