Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Working from side to side, carefully install the seat back cover over the foam pad.
  2. Remove the cardboard from between the seat back cover and the foam pad.
  3. Engage the hook, and the loop strips that retain the seat back cover (2).
  4. Engage the J-clips that retain the seat back cover.
  5. Install the seat back plastic cover (10) to the seat back frame, if equipped.
  6. Install the head restraints (1) to the seat back. Refer to HEAD RESTRAINT REPLACEMENT (CADILLAC)  or HEAD RESTRAINT REPLACEMENT (NON-CADILLAC)  or HEAD RESTRAINT REPLACEMENT (FOLDING)  .
  7. Install the armrest to the seat back, if removed. Refer to ARMREST REPLACEMENT - REAR SEAT (BUCKET)  or ARMREST REPLACEMENT - REAR SEAT (60/40 SPLIT)  .
  8. Install the seat back folding cover, if removed. Refer to SEAT BACK COVER REPLACEMENT - REAR FOLDING  .
  9. Install the rear seat to the vehicle. Refer to SEAT REPLACEMENT - REAR NO. 1 (60/40 SPLIT)  or SEAT REPLACEMENT - REAR NO. 1 (BUCKET)  , SEAT REPLACEMENT - REAR NO. 1 (BUCKET)  or SEAT REPLACEMENT - REAR NO. 2 - 50-50  .

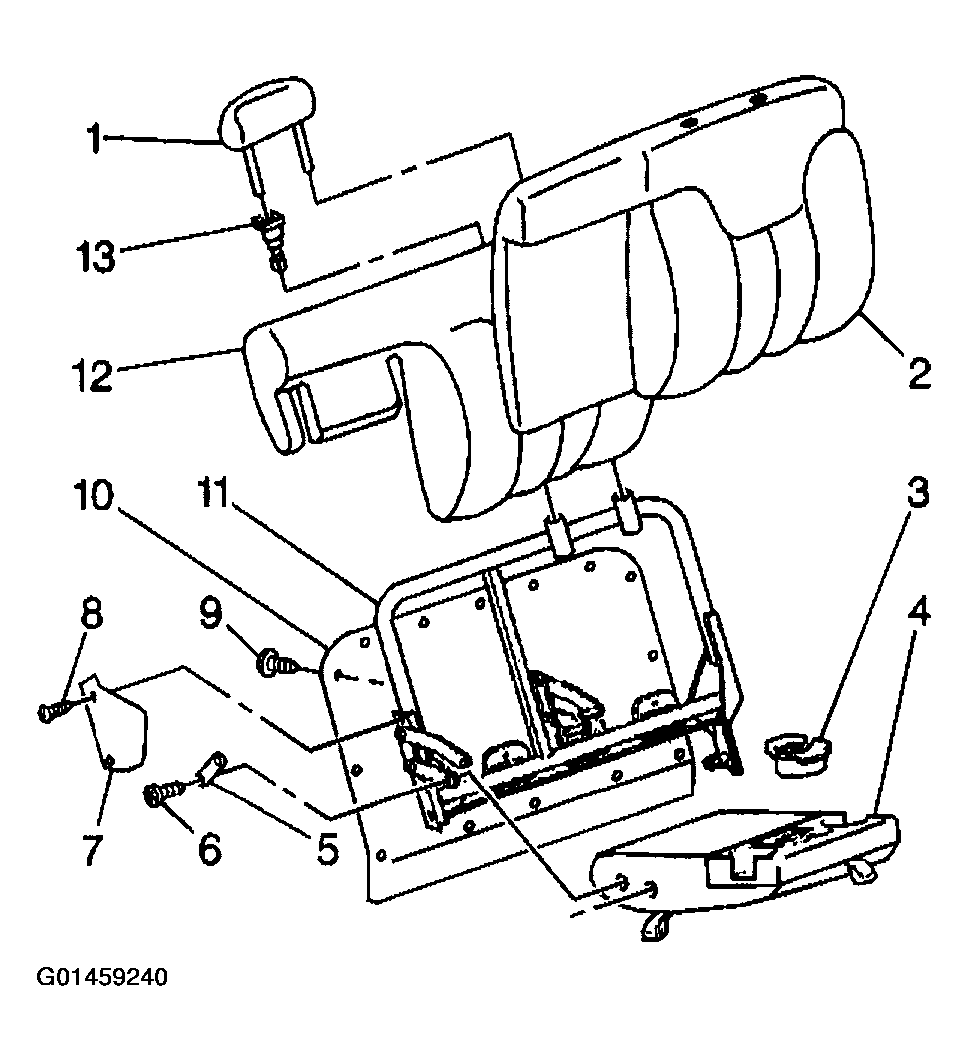

    Fig 1: Installing Seat Back Cover And Pad - Rear
    G01459240Courtesy of GENERAL MOTORS CORP.
