Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fold the seat forward.
  2. Remove the rivets using a small bit drill.
  3. Remove the rear folding seat panel.

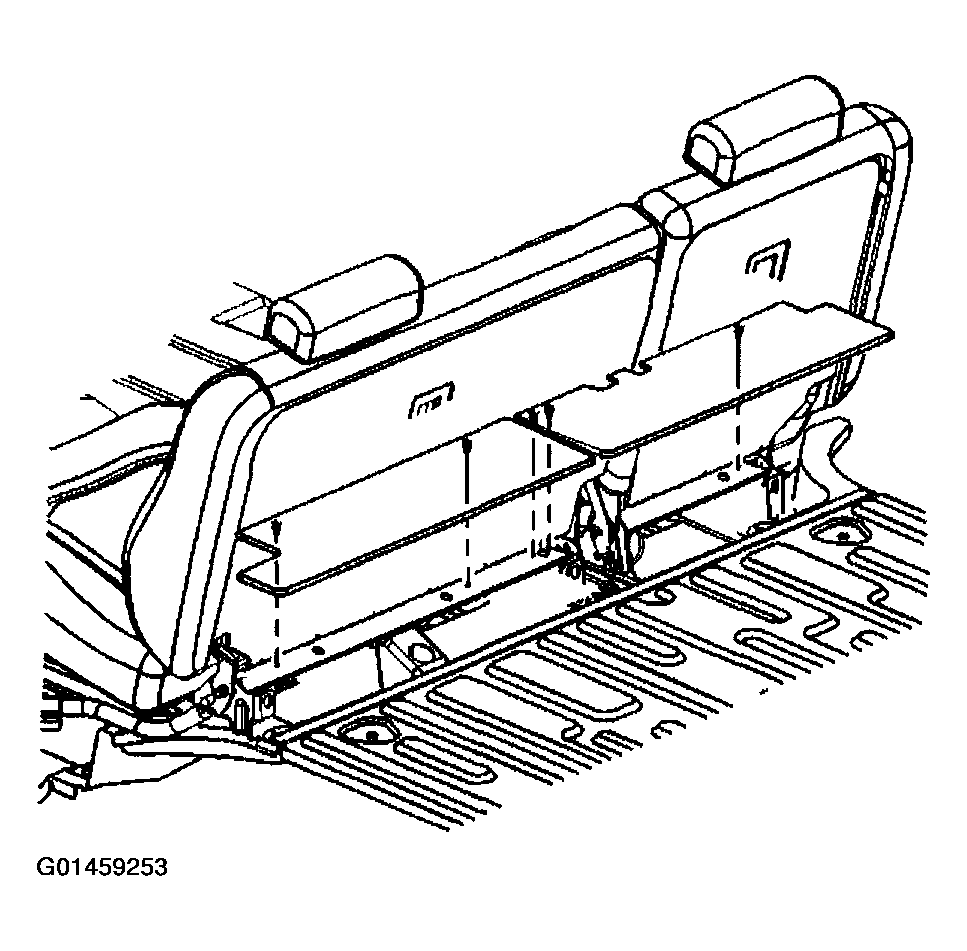

    Fig 1: Removing Rear Folding Seat Panel
    G01459253Courtesy of GENERAL MOTORS CORP.
