Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the head restraint to the full height position.
  2. Insert a pointed tool into the access hole (1) and press inwards.
  3. Pull the head restraint from the seat.

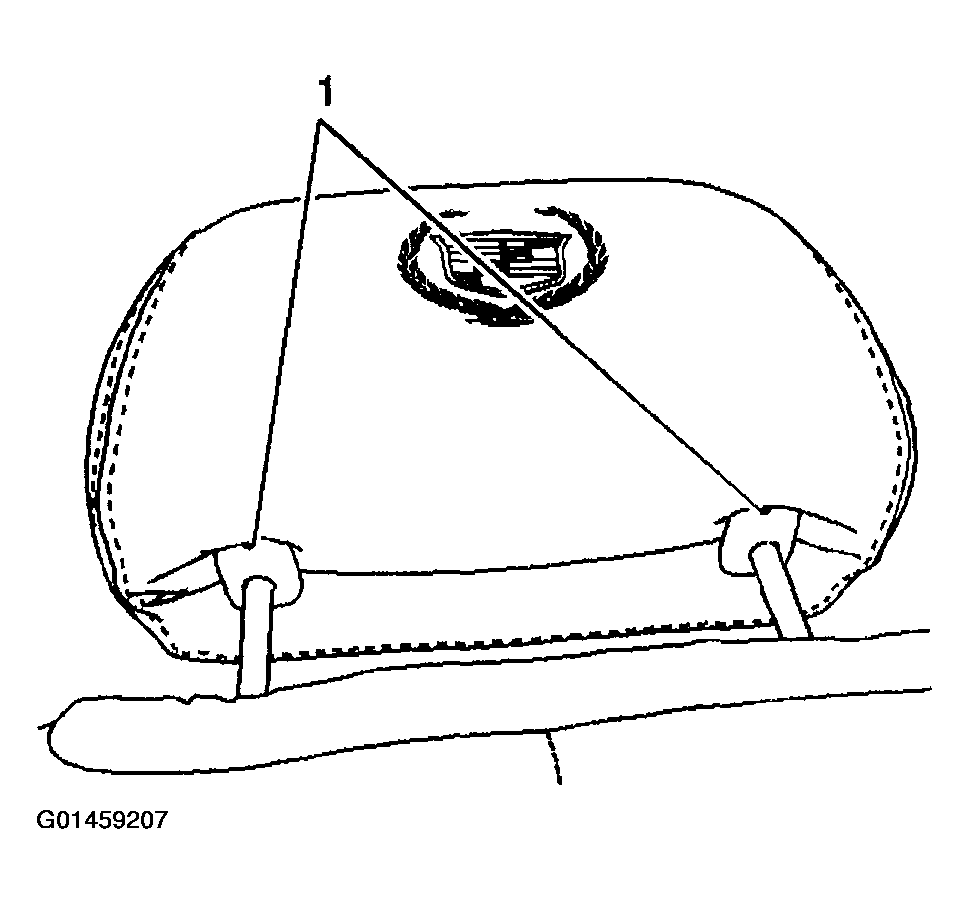

    Fig 1: Pulling Head Restraint From Seat
    G01459207Courtesy of GENERAL MOTORS CORP.
