Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cover to gain access to the center armrest bolts, if equipped.
  2. Remove the bolts that retain the center armrest to the seat frame.
  3. Remove the center arm rest from the vehicle.

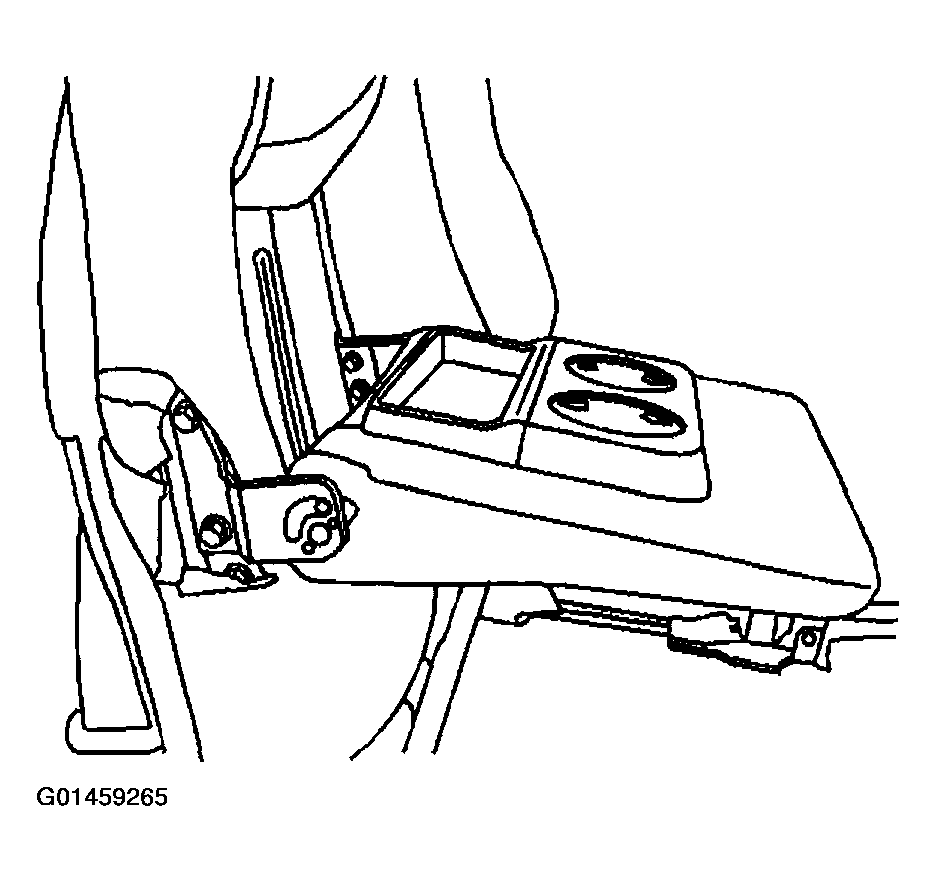

    Fig 1: Removing Center Arm Rest From Vehicle
    G01459265Courtesy of GENERAL MOTORS CORP.
