Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Important: When any molding is removed, all retaining clips must be replaced if the molding is to be reused.

Remove all retaining screws.
Grasp the lower part of the molding.
Pull outward in order to release the clips from the body panel.

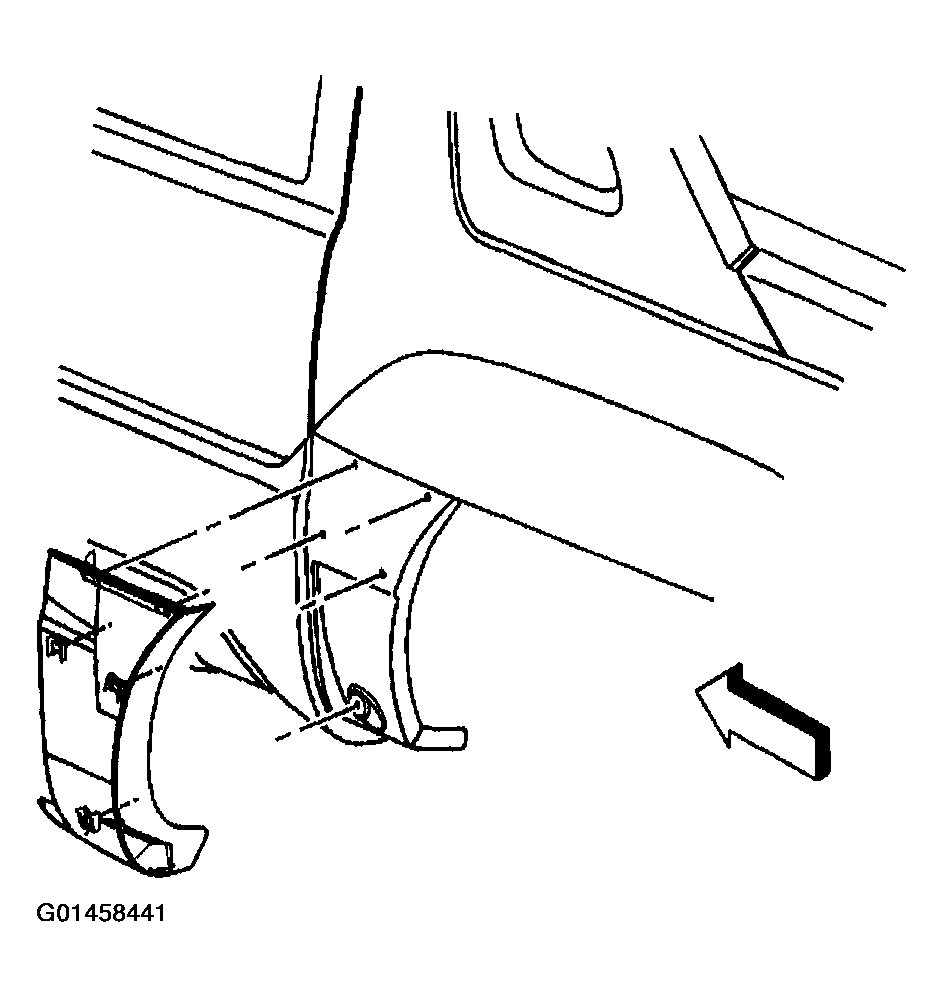

Fig 1: Removing Rear Body Side Lower Front Molding (Avalanche)

Courtesy of GENERAL MOTORS CORP.
