Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a 3M™ Scotch Brite molding adhesive remover disc, P/N 07501, or equivalent, in order to remove any adhesive tape on the body panel.

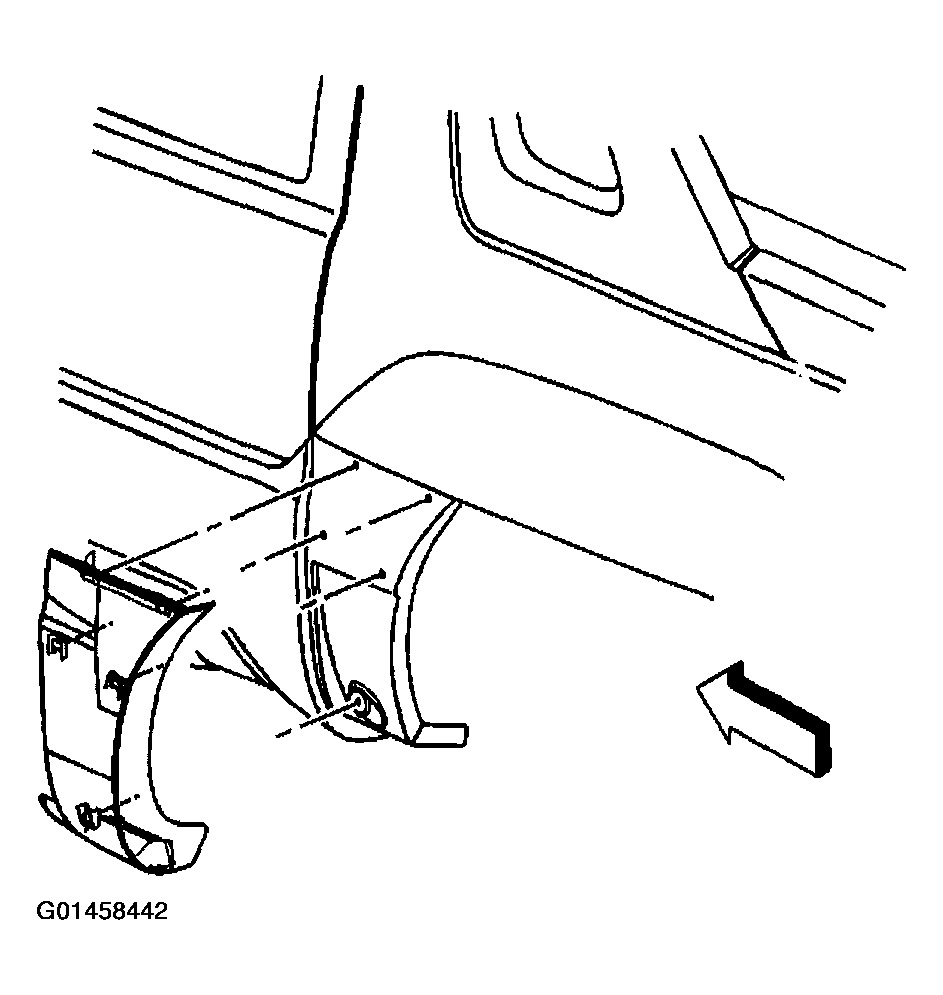

    2. Fig 1: Installing Rear Body Side Lower Front Molding (Avalanche)
    G01458442Courtesy of GENERAL MOTORS CORP.
  2. Remove the protective lining of the adhesive tape.
  3. Align the retaining clips in the respective holes.
  4. Press firmly on the molding until all of the retaining clips are completely seated.
  5. Press on the top part of the molding so that the tape adheres to the body panel.
