Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Important : When this molding is removed, all retaining clips need to be replaced with new clips if the molding is to be reused.

Grasp the lower part of the molding.
Pull outwards in order to release the retainers from the body panel.
Important : Do not scratch or chip the paint.

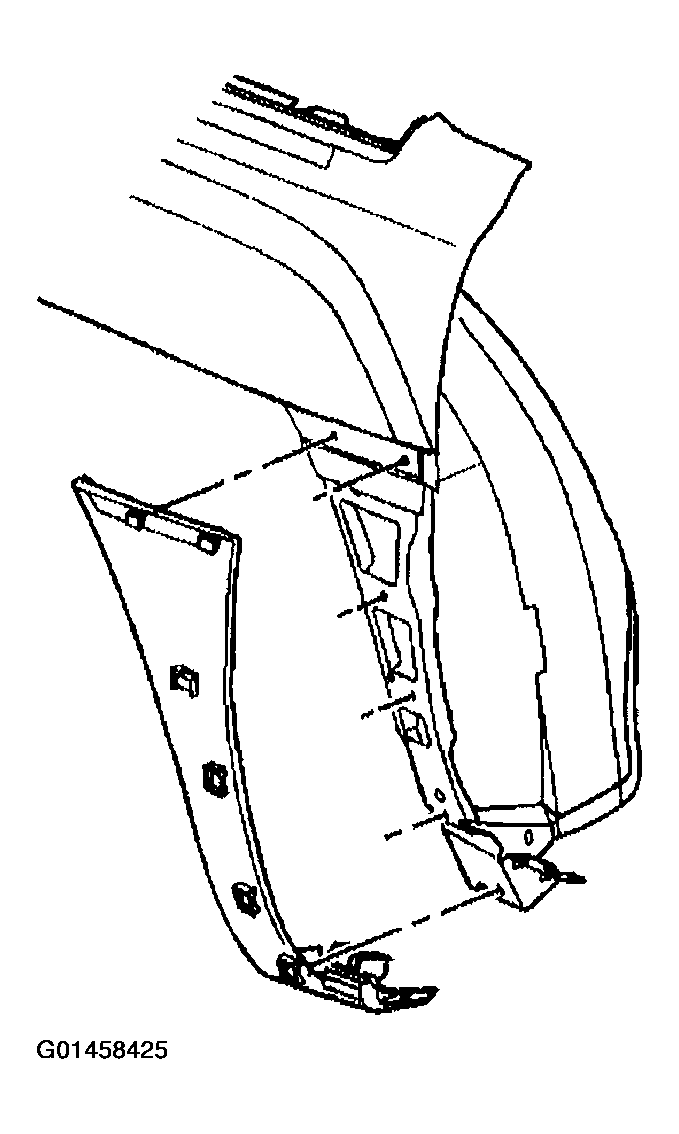

Fig 1: Removing Front Fender Rear Molding (Avalanche)

Courtesy of GENERAL MOTORS CORP.

Remove all adhesive from the fender and the back of the molding using a 3M™ Scotch Brite molding adhesive remover disc, 3M P/N 07501 or equivalent.
Clean the body panel using Varnish Makers and Painters (VMP) naphtha.
