Installation Procedure
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

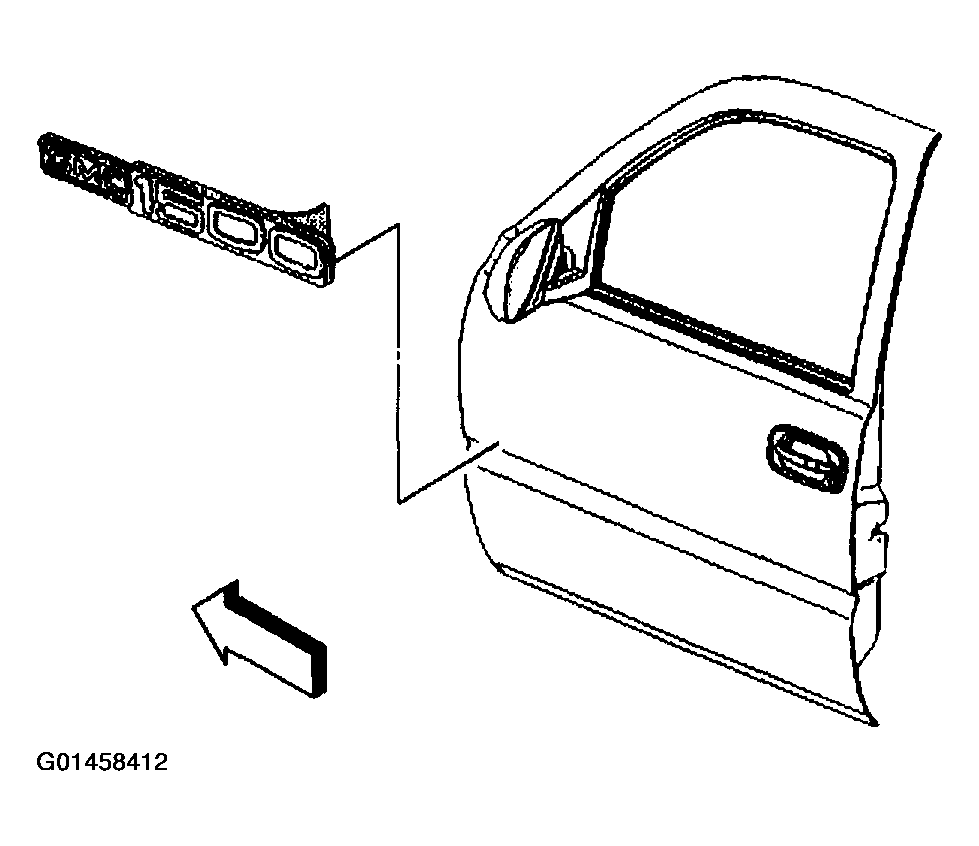

- If the location of the emblem/nameplate has not been marked apply tape.
- Warm the door surface with a heat gun J 25070
152 mm (6.0 in) from the surface to a minimum of 21°C (70°F).
Important : Do not touch the adhesive backing of the emblem/nameplate.
- Remove the backing from the front end of the emblem/nameplate.
- Press the emblem/nameplate to the door panel surface while continuing to remove the backing.
- Hand roll the emblem/nameplate to the door panel to ensure proper adhesion.
- Inspect the emblem/nameplate for bonding.
- Remove the tape from the area around the door emblem.
