Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the vent hose to the transmission.
  2. Install the vent hose to the clip.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the bolt and the clamp.

    Tighten

    Tighten the bolt to 10 N.m (89 lb in).

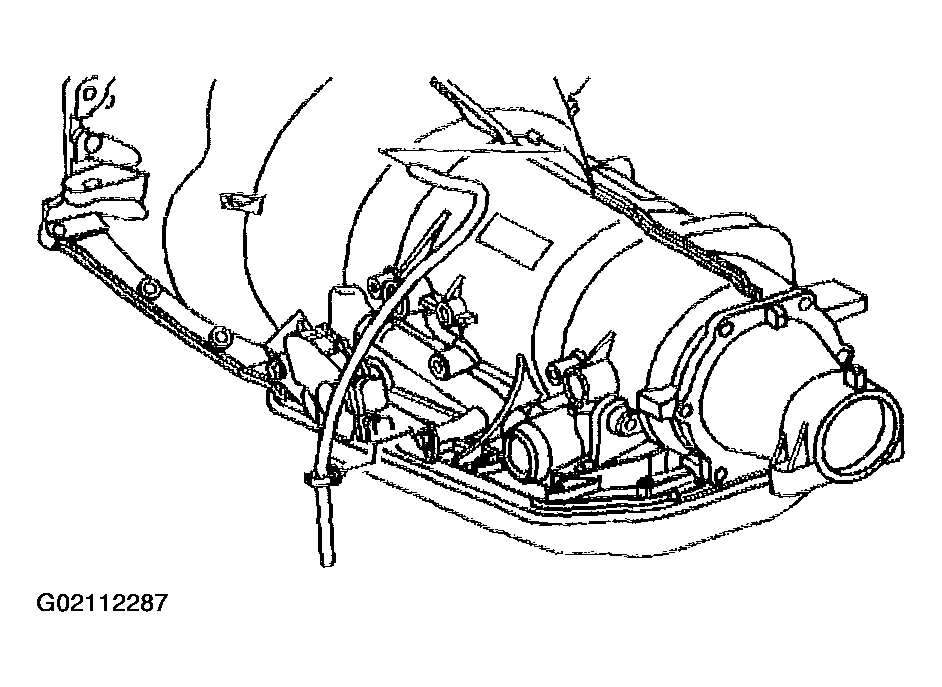

    Fig 1: Installing Vent Hose
    G02112287Courtesy of GENERAL MOTORS CORP.
