Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the inside diameter of the NEW seal with J 36850.
  2. Using J 41505  (1) and a soft faced mallet, install the seal (2).
  3. Install the seal (2) to the extension housing (3).
  4. Install the propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - REAR in Propeller Shaft.
  5. Remove the drain pan and lower the vehicle.
  6. Fill the transmission to the proper level with DEXRON® III transmission fluid. Refer to TRANSMISSION FLUID CHECKING PROCEDURE  .

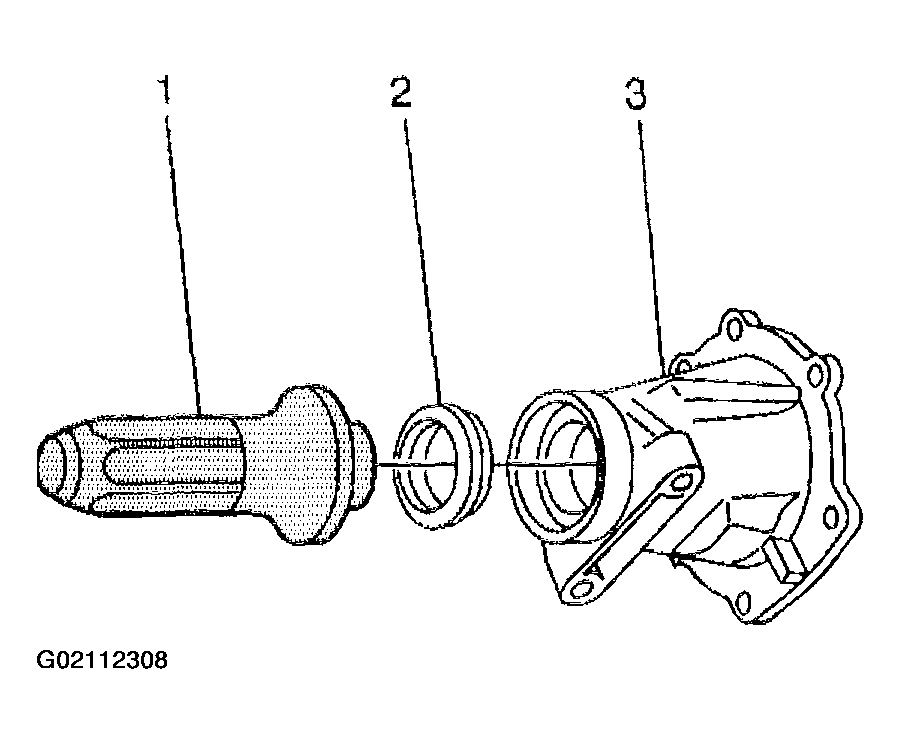

    Fig 1: Installing Transmission Extension Housing Rear Oil Seal
    G02112308Courtesy of GENERAL MOTORS CORP.
