DTC P1810: Invalid State Of The TFP Manual Valve Position Switch Circuit: Notes

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

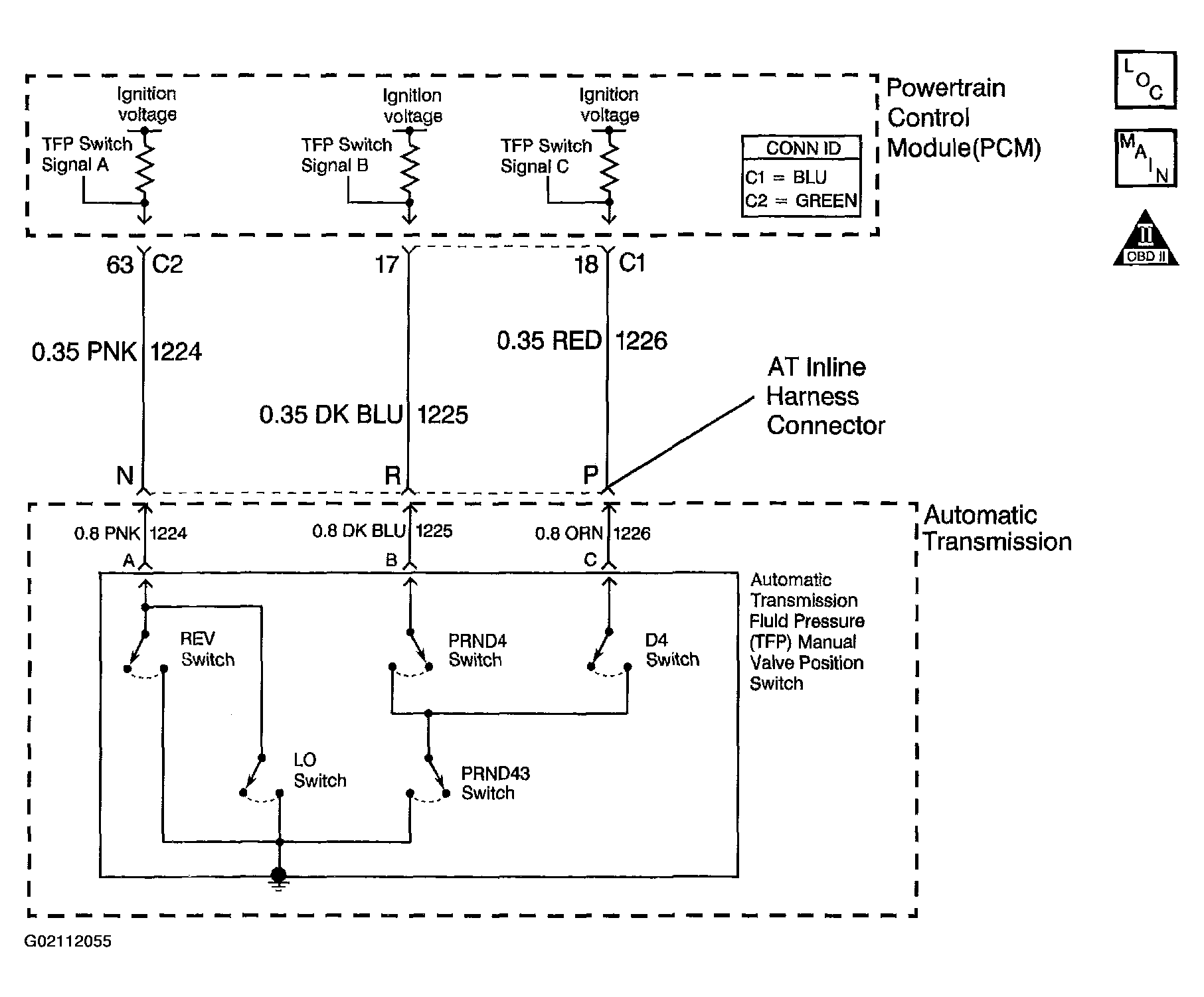

Fig 1: DTC P1810 Circuit Description Diagram
G02112055Courtesy of GENERAL MOTORS CORP.
