Automatic Transmission Fluid Leak

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

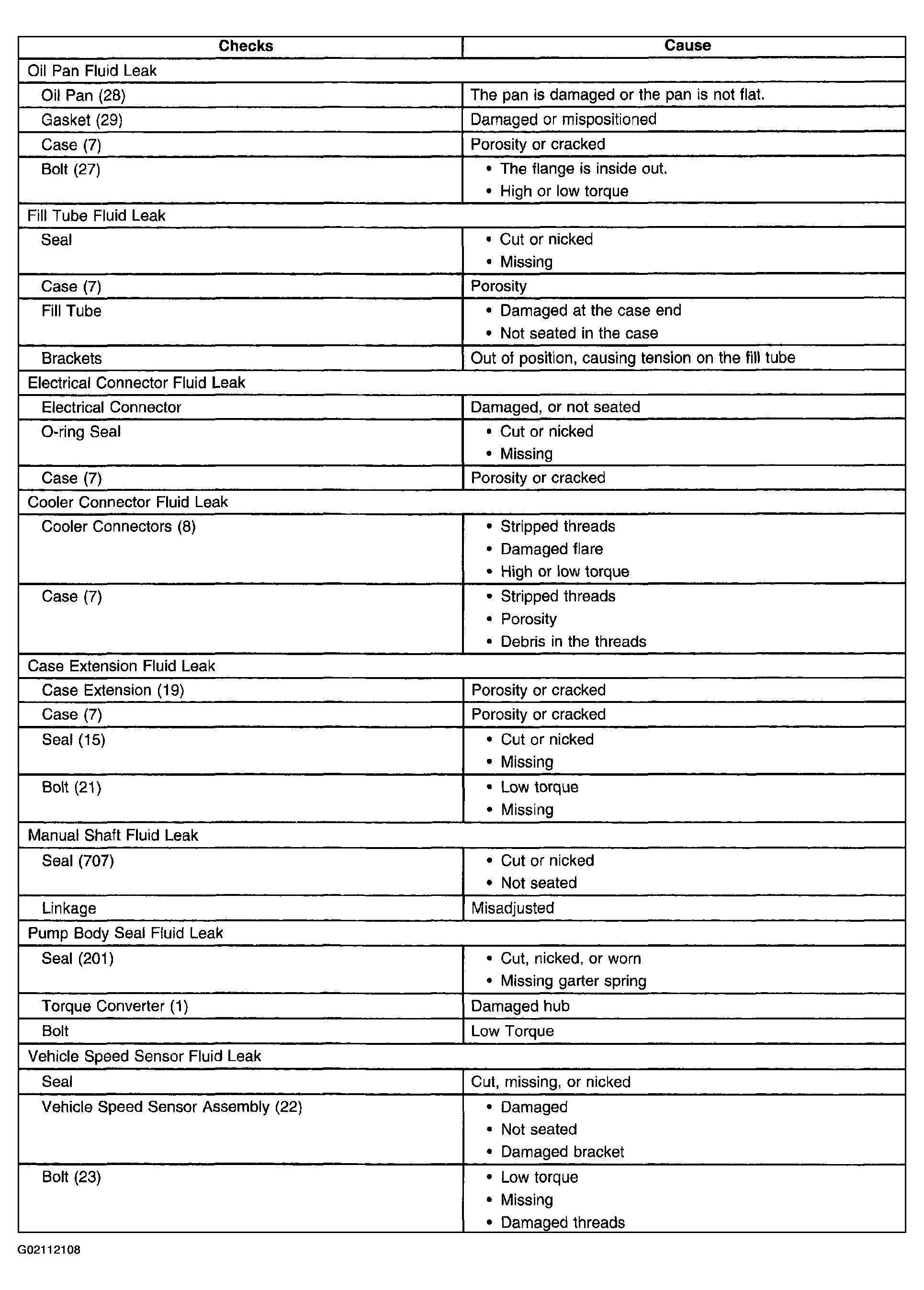

Fig 1: Automatic Transmission Fluid Leak Check Table (1 Of 2)
G02112108Courtesy of GENERAL MOTORS CORP.

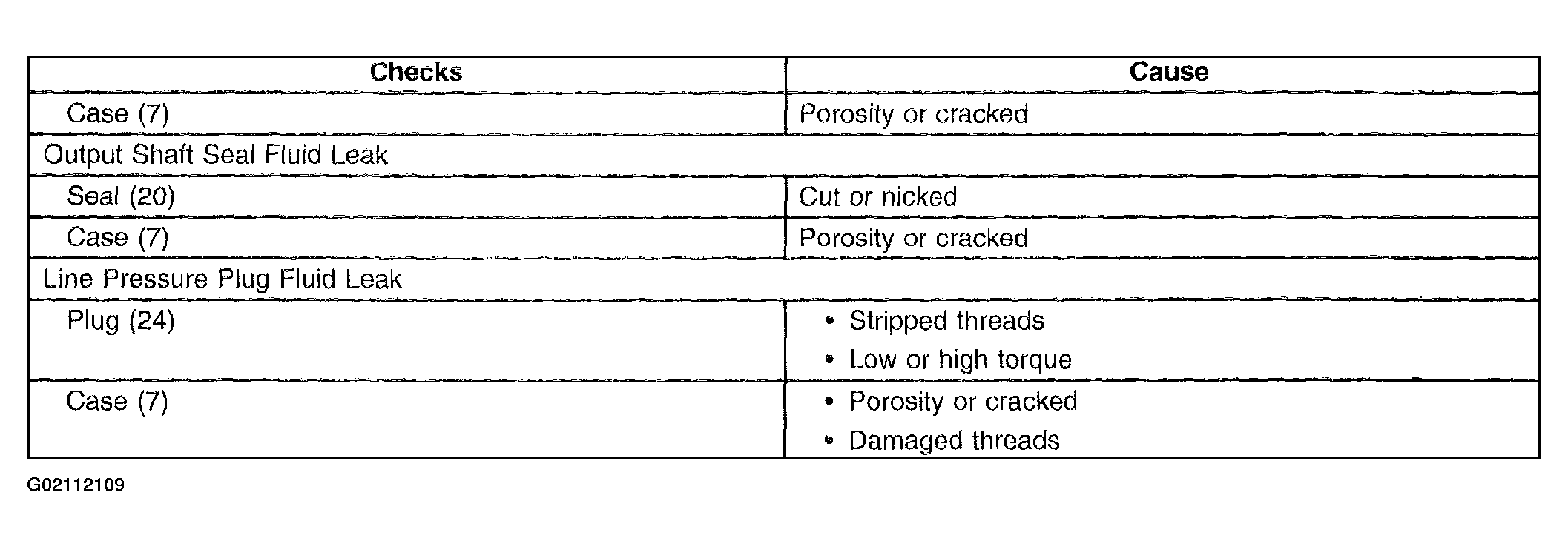

Fig 2: Automatic Transmission Fluid Leak Check Table (2 Of 2)
G02112109Courtesy of GENERAL MOTORS CORP.
