Automatic Transmission Internal Connector End Views

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

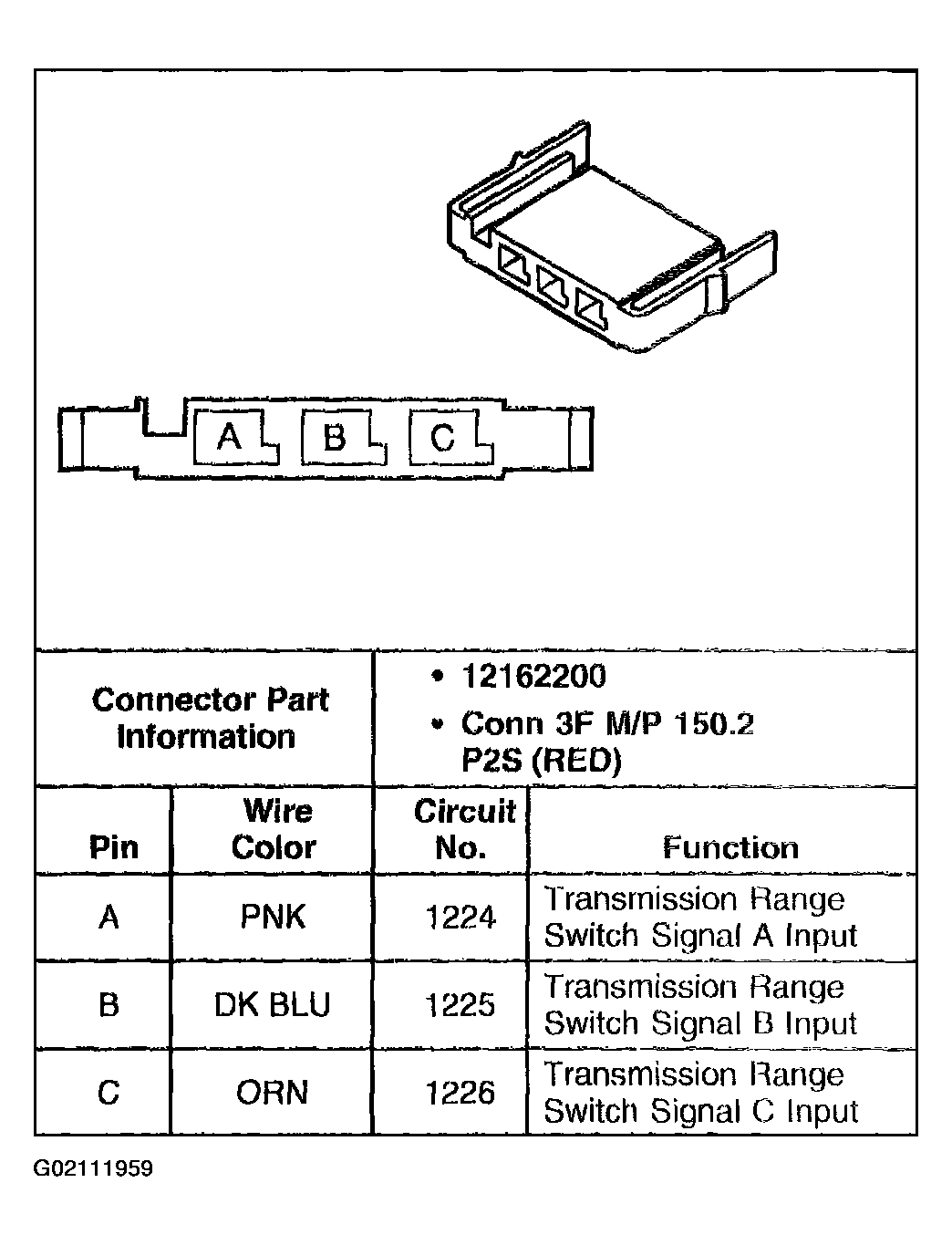

Fig 1: Identifying Automatic Transmission Fluid Pressure Manual Valve Position Switch Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

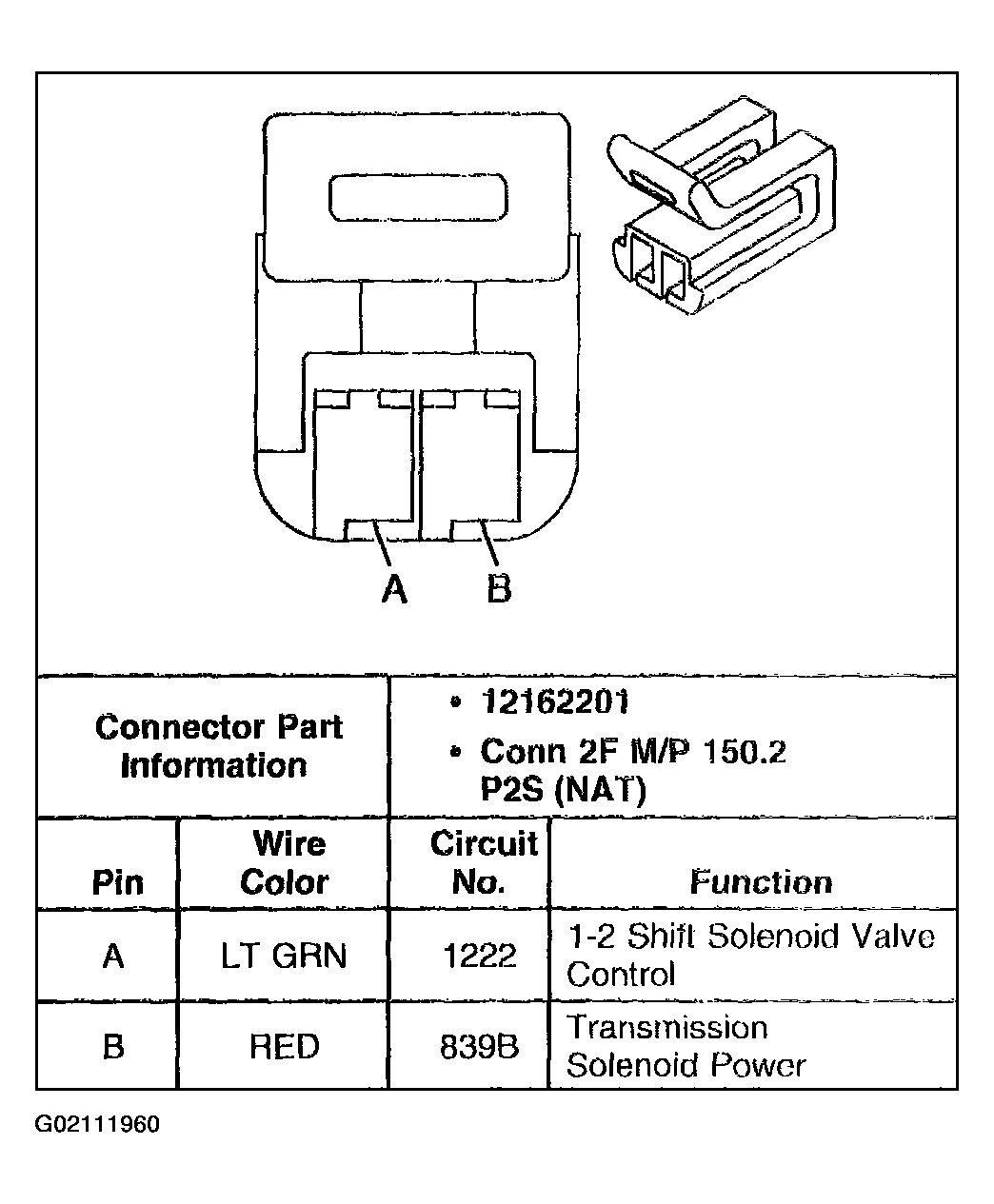

Fig 2: Identifying 1 - 2 Shift Solenoid Valve Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

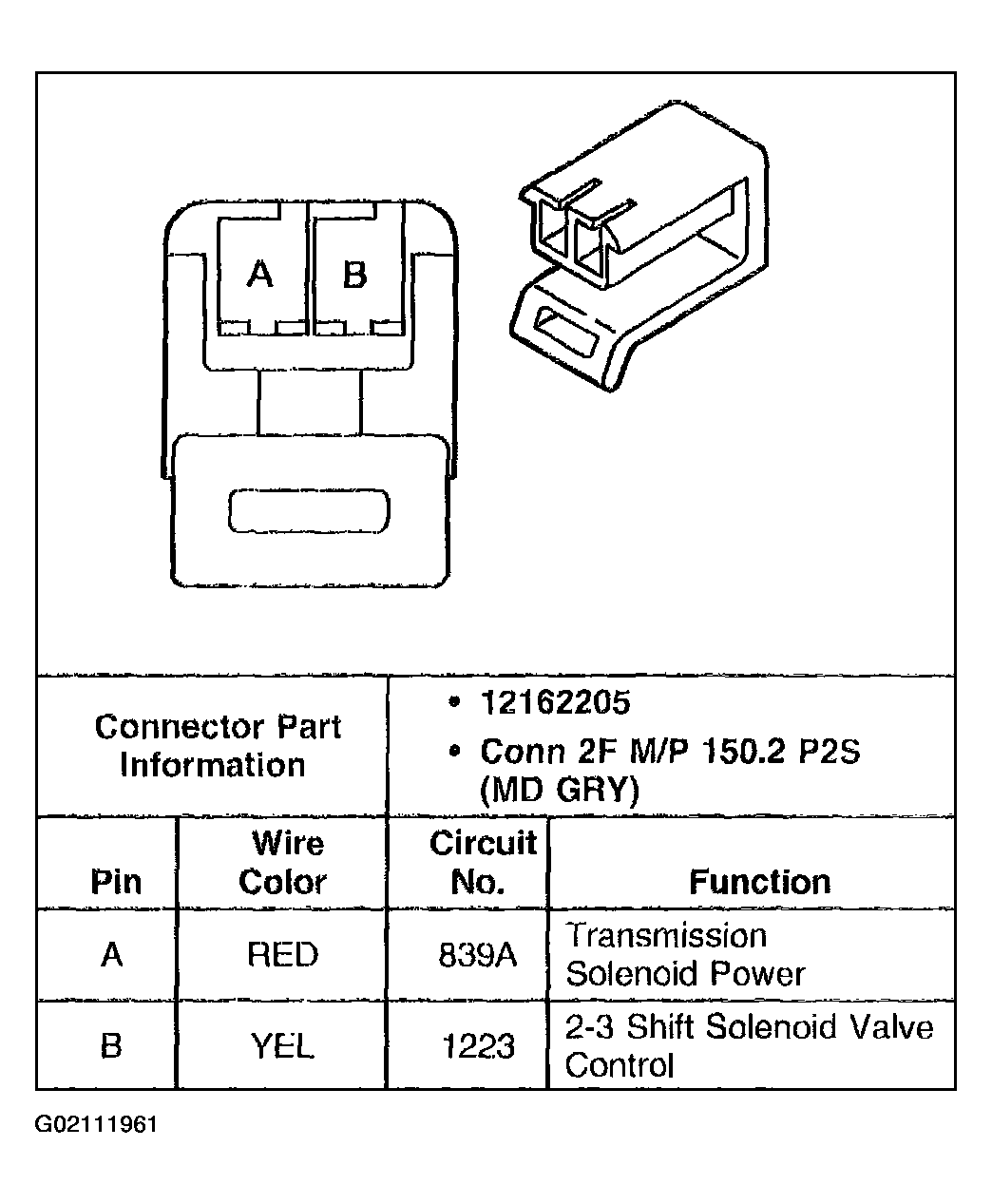

Fig 3: Identifying 2 - 3 Shift Solenoid Valve Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

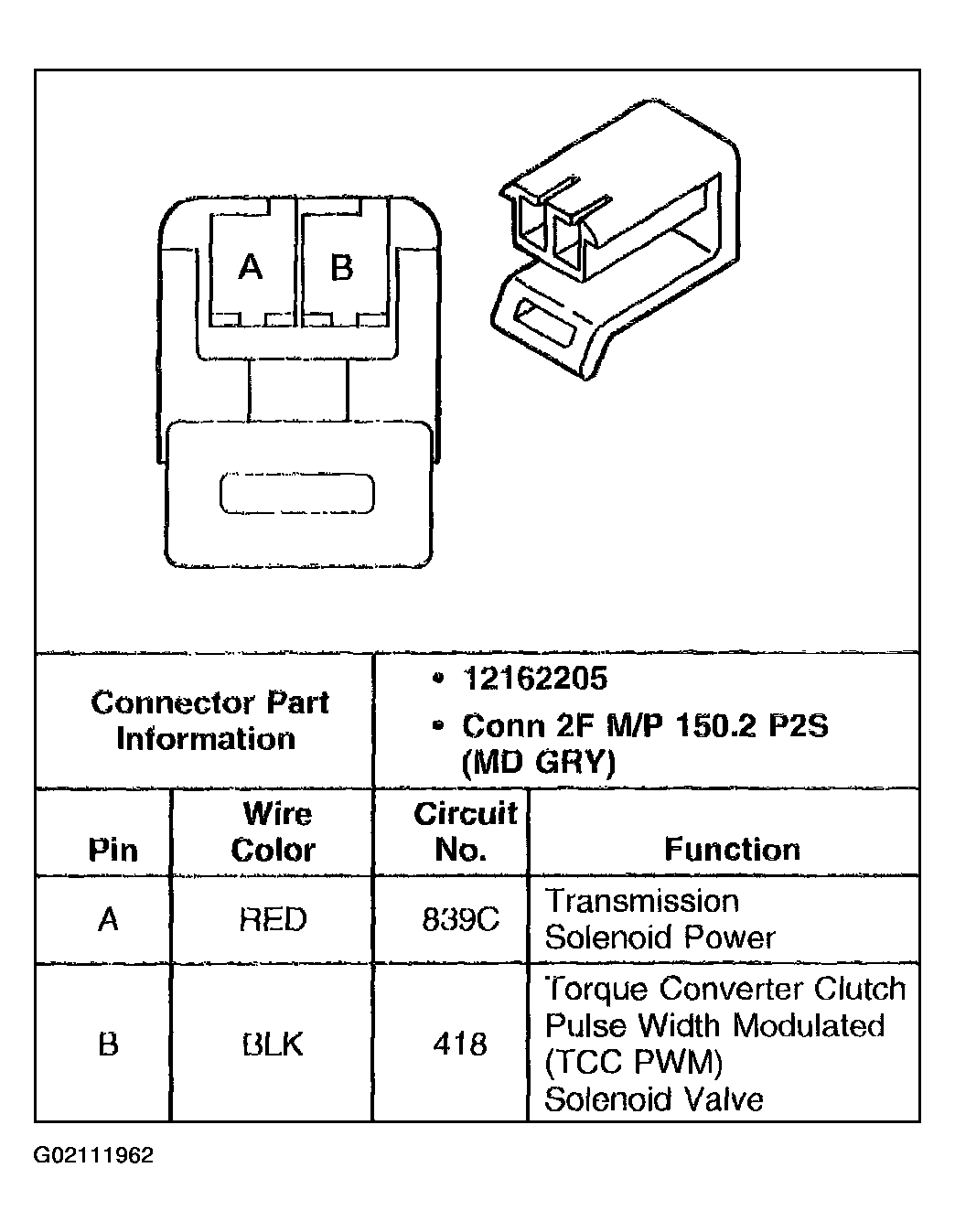

Fig 4: Identifying Torque Converter Clutch Pulse Width Modulated Solenoid Valve Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

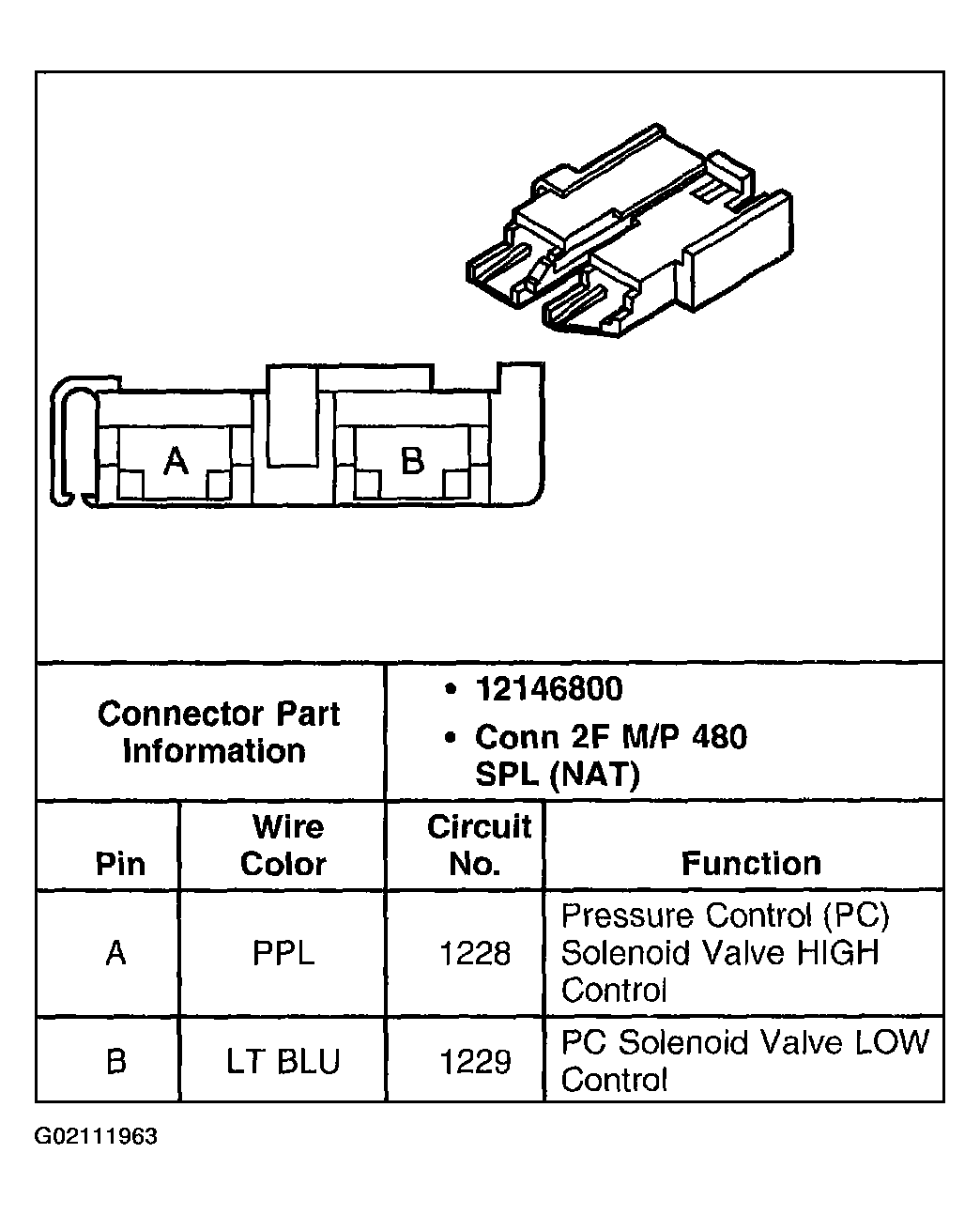

Fig 5: Identifying Pressure Control Solenoid Valve Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

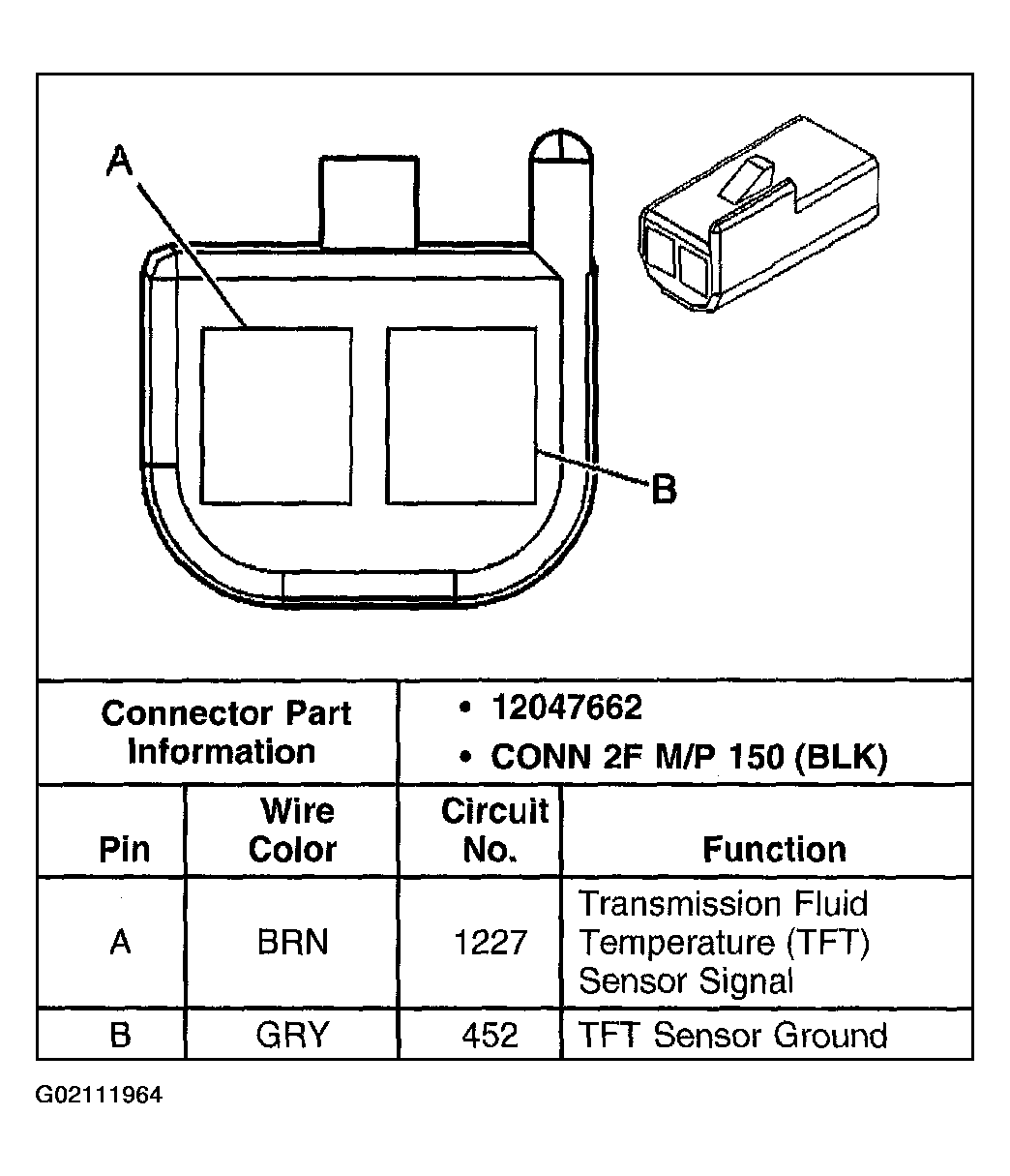

Fig 6: Identifying Transmission Fluid Temperature (TFT) Sensor Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.
