Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Perform the following procedure when removing the retaining rings and cooler lines from the quick connect fittings located on the radiator and/or the transmission.

  1. Pull the plastic cap back from the quick connect fitting and down along the cooler line about 5 cm (2 in).
  2. Using a bent-tip screwdriver, pull on one of the open ends of the retaining ring in order to rotate the retaining ring around the quick connect fitting until the retaining ring is out of position and can be completely removed.

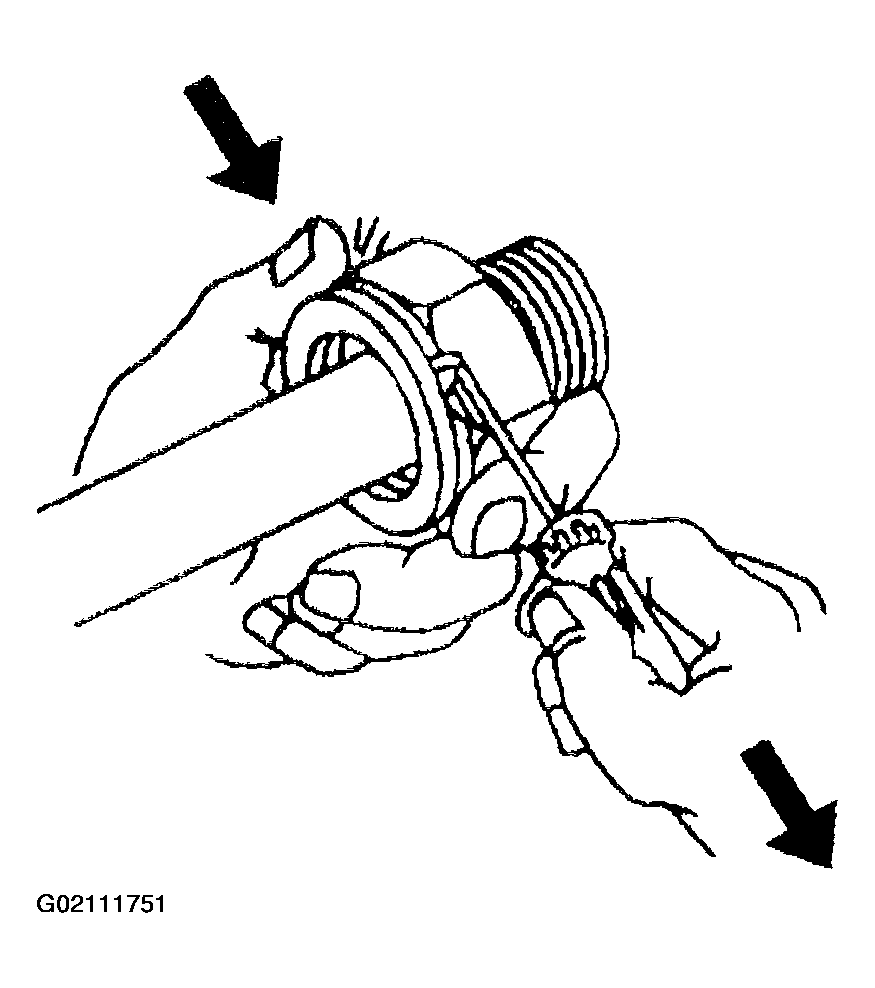

    Fig 1: Pulling On One Of Open Ends Of Retaining Ring Using A Bent-Tip Screwdriver
    G02111751Courtesy of GENERAL MOTORS CORP.
  3. Remove the retaining ring from the quick connect fitting.
  4. Discard the retaining ring.
  5. Pull the cooler line straight out from the quick connect fitting.
    Fig 2: Removing Retaining Ring From Quick Connect Fitting
    G02111752Courtesy of GENERAL MOTORS CORP.
