Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front grill assembly. Refer to GRILLE REPLACEMENT (CADILLAC) or GRILLE REPLACEMENT (AVALANCHE) in Exterior Trim.
  2. Remove the transmission fluid cooler hose from the Auxiliary oil cooler. Refer to TRANSMISSION OIL COOLER LINE QUICK CONNECT FITTING .
  3. Remove the transmission fluid cooler hose from the radiator. Refer to TRANSMISSION OIL COOLER LINE QUICK CONNECT FITTING .
  4. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  5. Remove the engine protection shield.

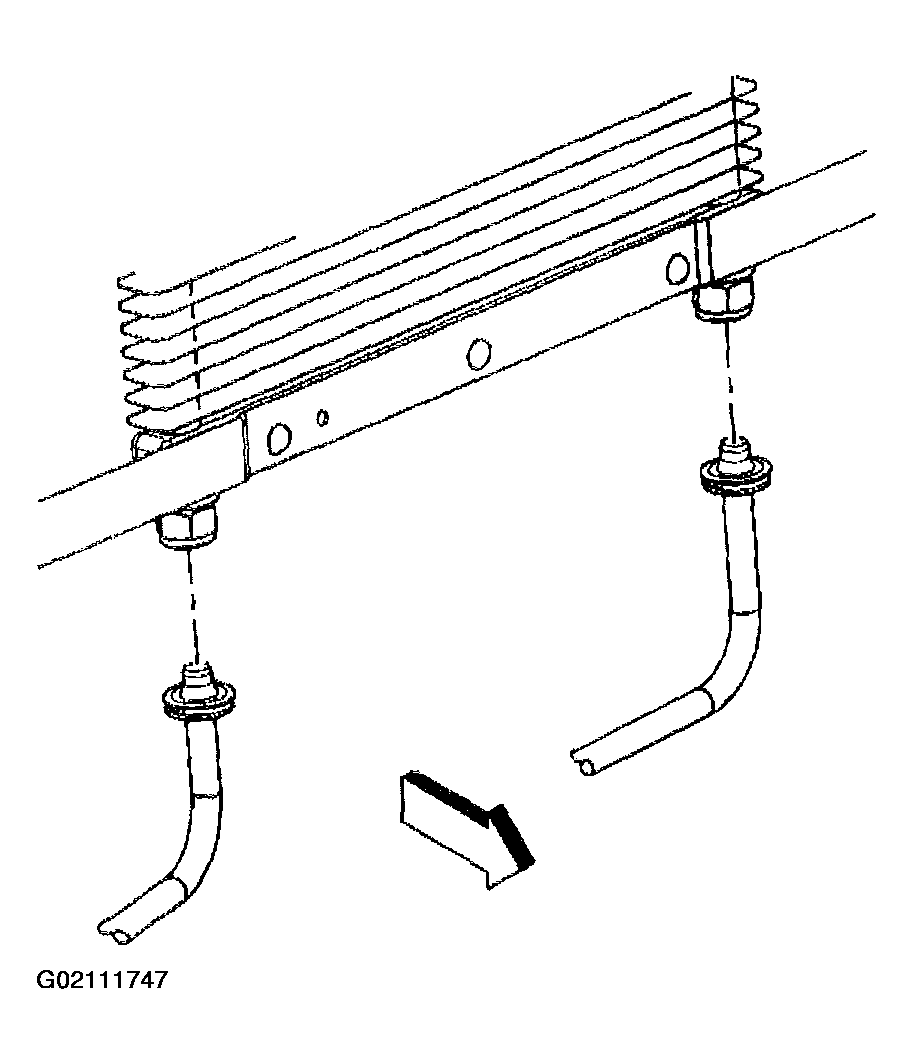

    Fig 1: Removing Transmission Fluid Cooler Hose From Radiator
    G02111747Courtesy of GENERAL MOTORS CORP.
  6. Remove the cooling lines from the transmission. Refer to TRANSMISSION OIL COOLER LINE QUICK CONNECT FITTING .
  7. Remove the oil cooling lines from the vehicle.

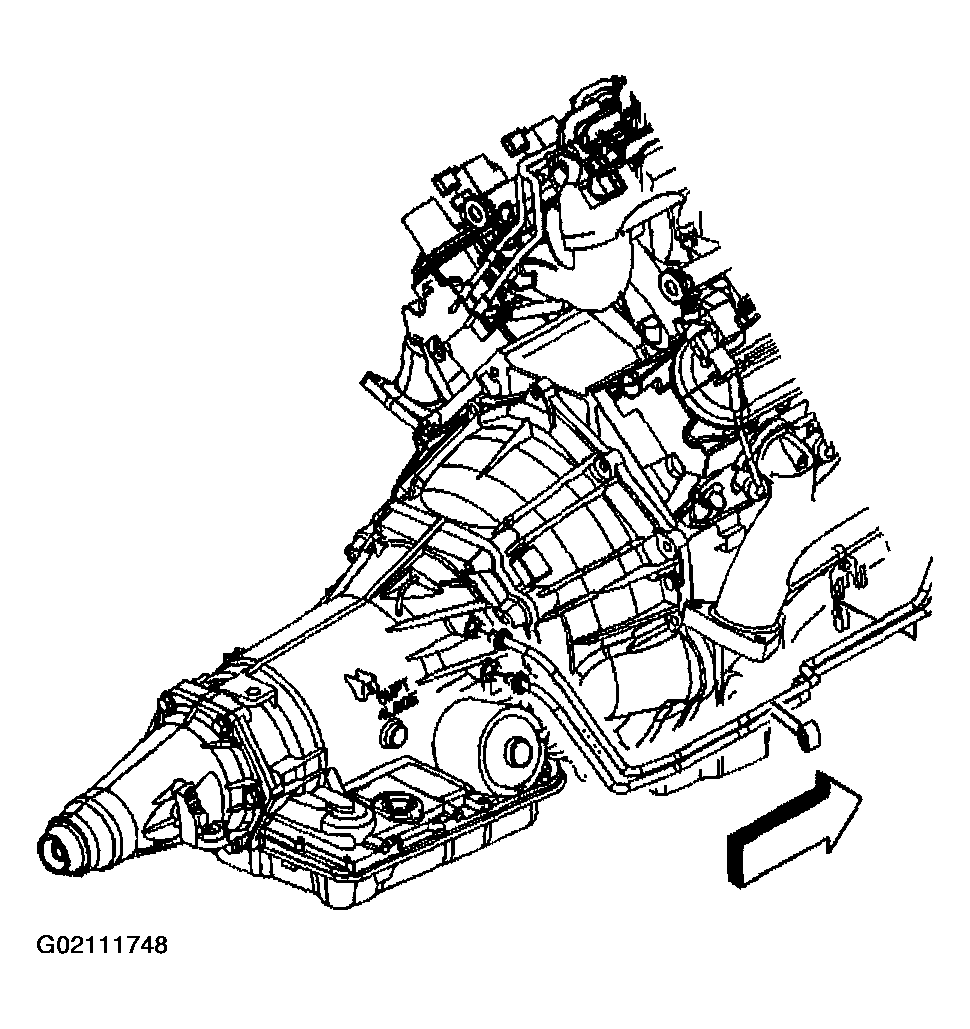

    Fig 2: Removing Oil Cooling Lines
    G02111748Courtesy of GENERAL MOTORS CORP.
