Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the auxiliary oil cooler to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the bolts (1) and the push pins (2) that retain the auxiliary oil cooler to the radiator brace.

    Tighten

    Tighten the bolts to 12 N.m (9 lb ft).

  3. Connect the transmission oil cooler lines to the auxiliary cooler. Refer to TRANSMISSION OIL COOLER LINE QUICK CONNECT FITTING .
  4. Install the front grill assembly. Refer to GRILLE REPLACEMENT (CADILLAC) or GRILLE REPLACEMENT (AVALANCHE) in Exterior Trim.

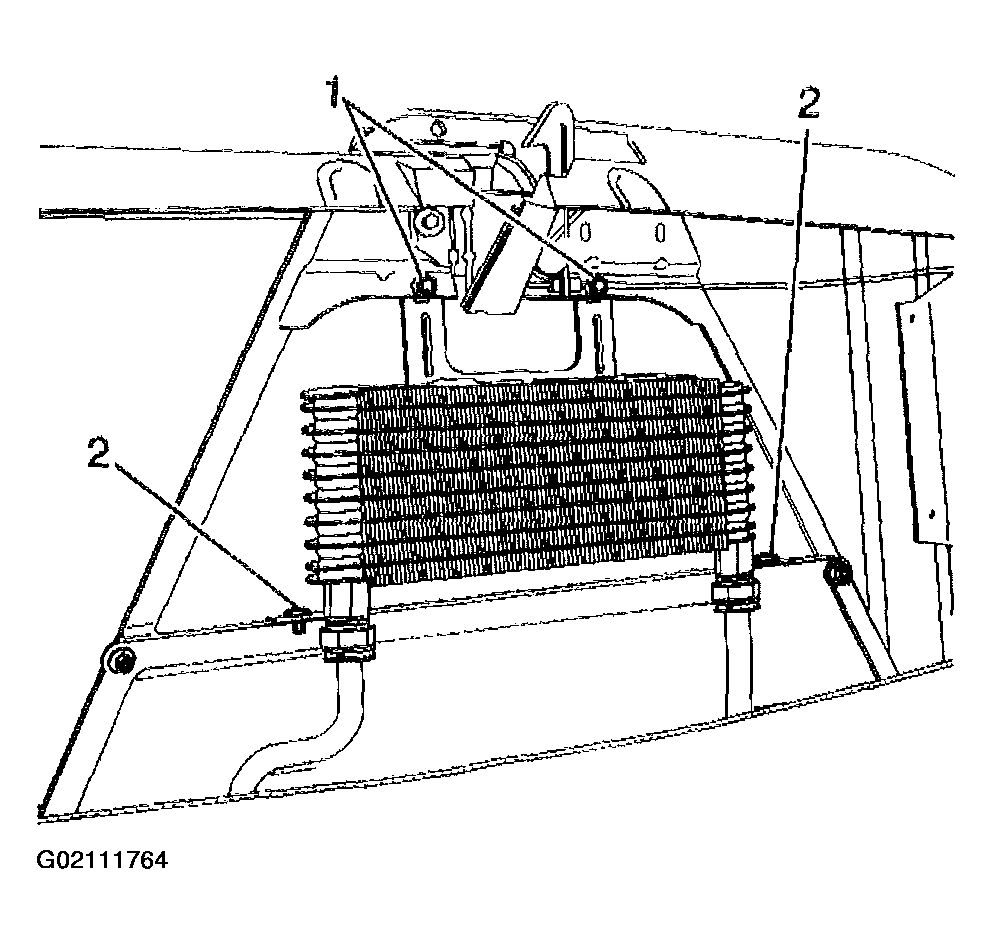

    Fig 1: Installing Transmission Fluid Auxiliary Cooler
    G02111764Courtesy of GENERAL MOTORS CORP.
