Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission filter. Refer to AUTOMATIC TRANSMISSION FLUID/FILTER REPLACEMENT  .

    Important:  The 1-2 accumulator can be removed without removing the valve body.

  2. Remove the valve body. Refer to VALVE BODY AND PRESSURE SWITCH REPLACEMENT  .

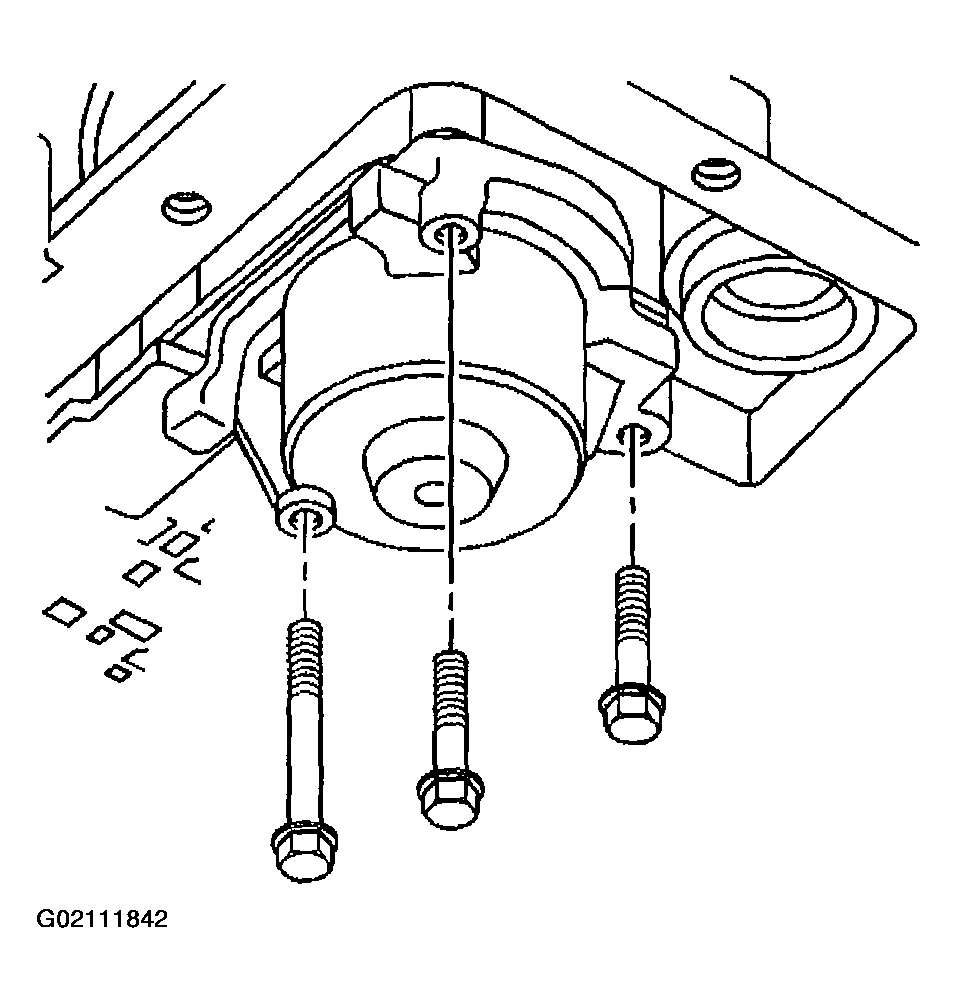

    Fig 1: Removing Accumulator Cover Bolts
    G02111842Courtesy of GENERAL MOTORS CORP.
  3. Remove the accumulator cover bolts.
  4. Remove the 1-2 accumulator cover.
  5. Disassemble the 1-2 accumulator.
    1. 5.1. Blow compressed air into the 1-2 accumulator cover, as shown, in order to remove the 1-2 accumulator piston.
    2. 5.2. Remove the 1-2 accumulator inner and outer springs.
  6. Inspect the 1-2 accumulator inner and outer springs for cracks.

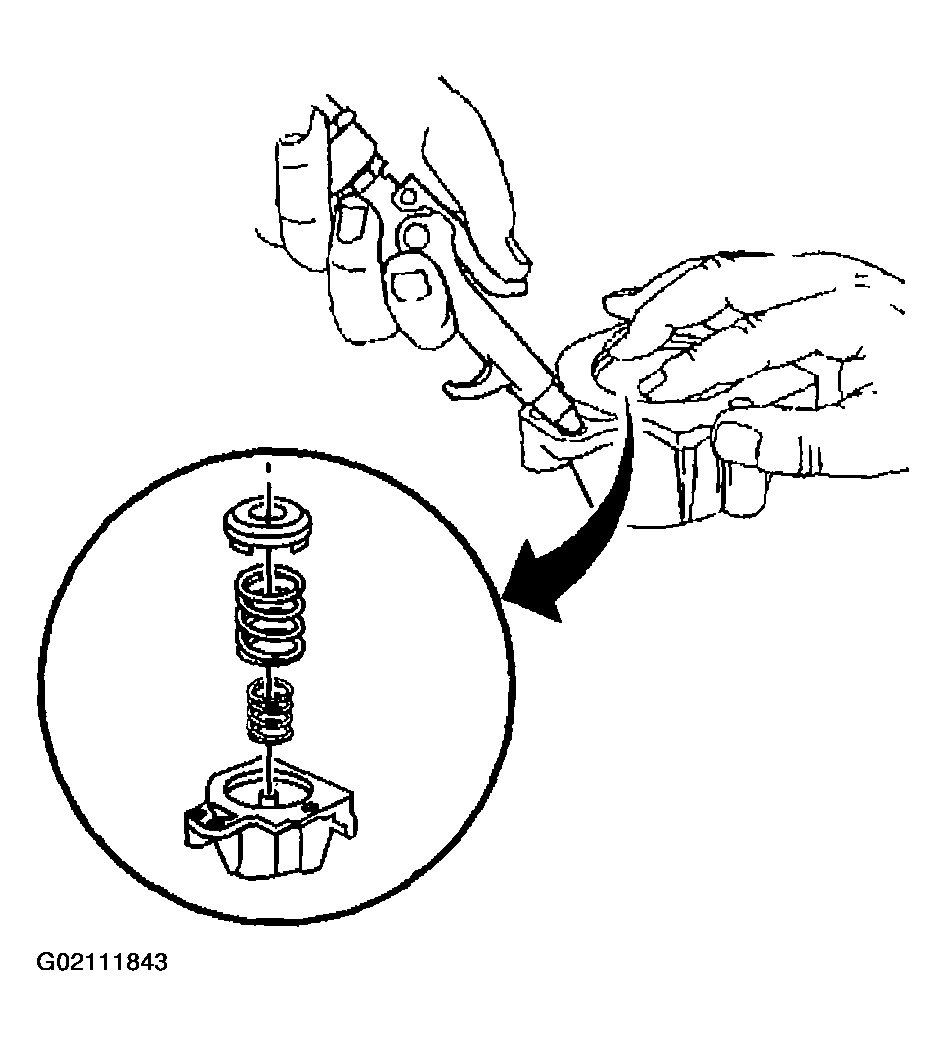

    Fig 2: Blowing Compressed Air Into 1-2 Accumulator Cover
    G02111843Courtesy of GENERAL MOTORS CORP.
  7. Remove the 1-2 accumulator piston seal (1) from the 1-2 accumulator piston.
  8. Inspect the 1-2 accumulator piston for the following defects:
    • Porosity
    • Cracks
    • Scoring
    • Nicks and scratches
    Fig 3: Removing 1-2 Accumulator Piston Seal From 1-2 Accumulator Piston
    G02111844Courtesy of GENERAL MOTORS CORP.
  9. Inspect the 1-2 accumulator cover for the following defects:
    • Porosity
    • Cracks
    • Scoring
    • Nicks and scratches

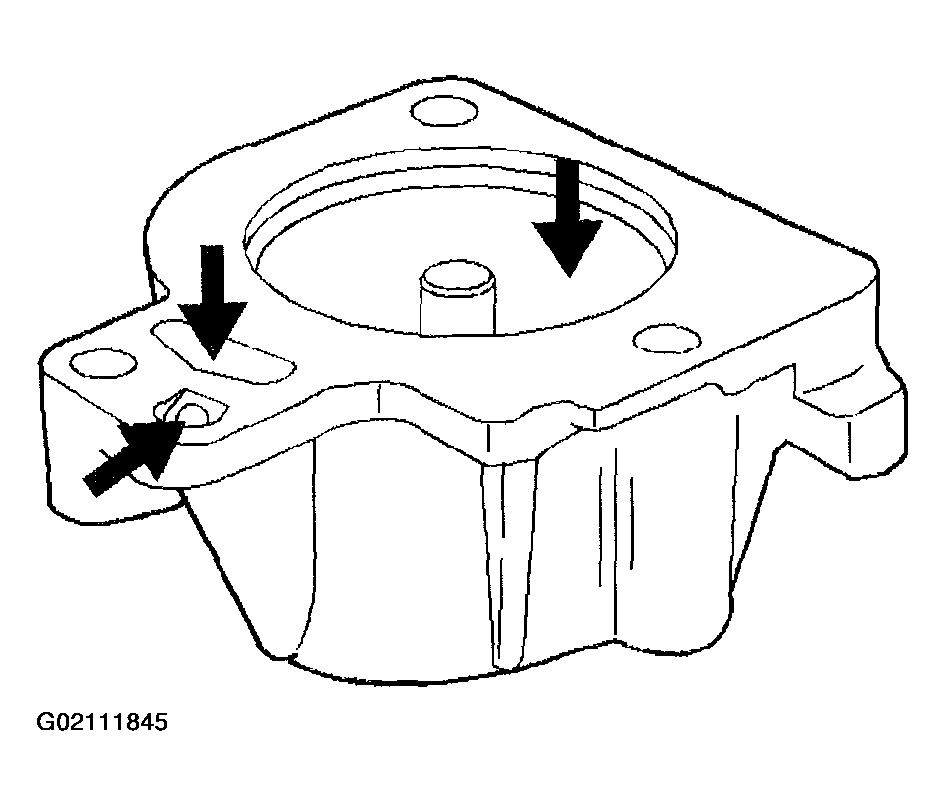

    Fig 4: Inspecting 1-2 Accumulator Cover For Damage
    G02111845Courtesy of GENERAL MOTORS CORP.
  10. Remove the spacer plate support bolts.

    Important:  Use care not to drop the following items that will be removed along with the spacer plate:

    • The number 1 checkball
    • The 3-4 accumulator spring
    • The 3-4 accumulator pin
  11. Remove the spacer plate support.

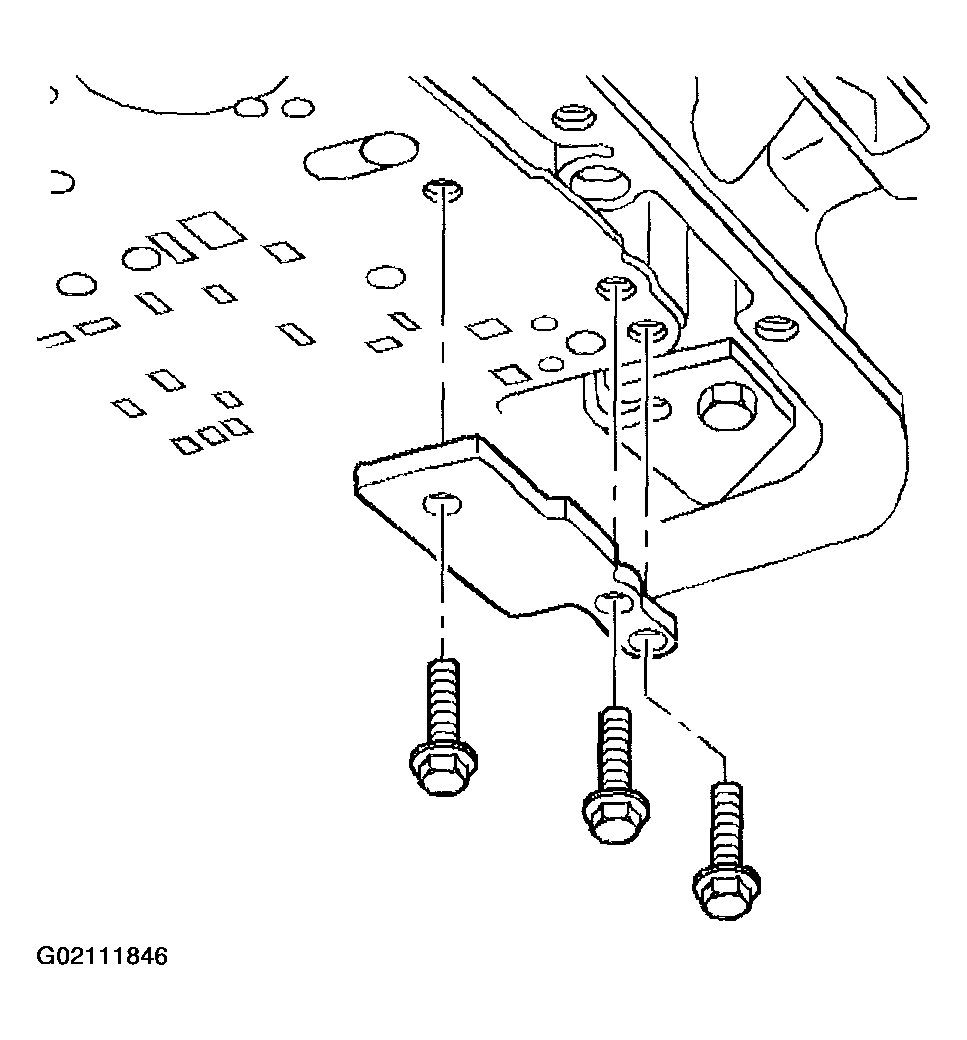

    Fig 5: Removing Spacer Plate Support & Bolts
    G02111846Courtesy of GENERAL MOTORS CORP.
  12. Remove the spacer plate to valve body gasket, the spacer plate and the spacer plate to transmission case gasket.

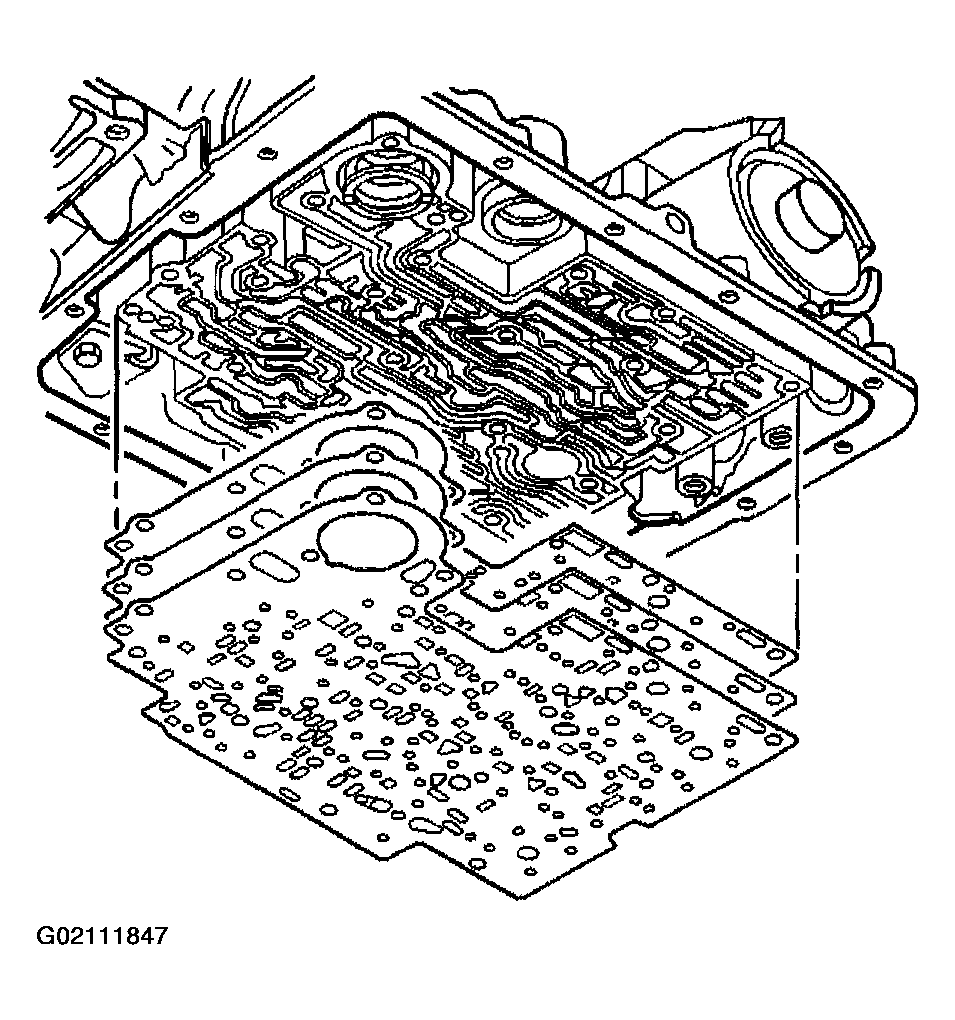

    Fig 6: Removing Spacer Plate To Valve Body Gasket
    G02111847Courtesy of GENERAL MOTORS CORP.
  13. Remove the 3-4 accumulator piston (2).
  14. Inspect the 3-4 accumulator spring for cracks.

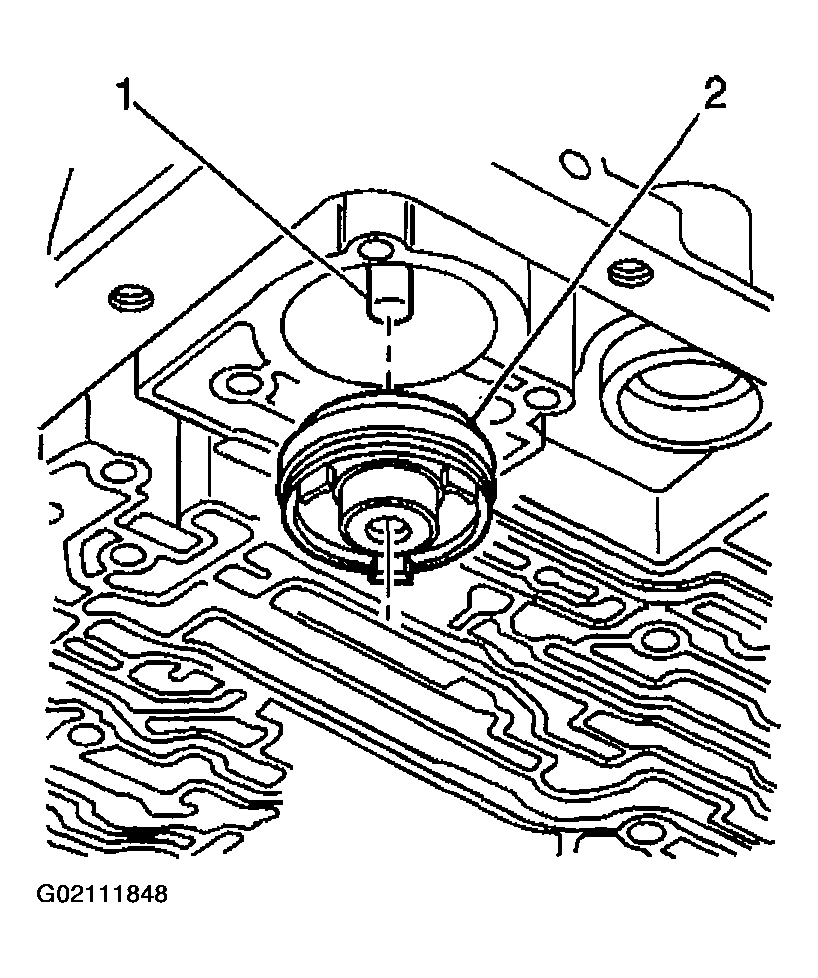

    Fig 7: Removing 3-4 Accumulator Piston
    G02111848Courtesy of GENERAL MOTORS CORP.
  15. Remove the 3-4 accumulator piston seal (1) from the 3-4 accumulator piston.
  16. Inspect the 3-4 accumulator piston for the following defects:
    • Porosity
    • Cracks
    • Scoring
    • Nicks and scratches

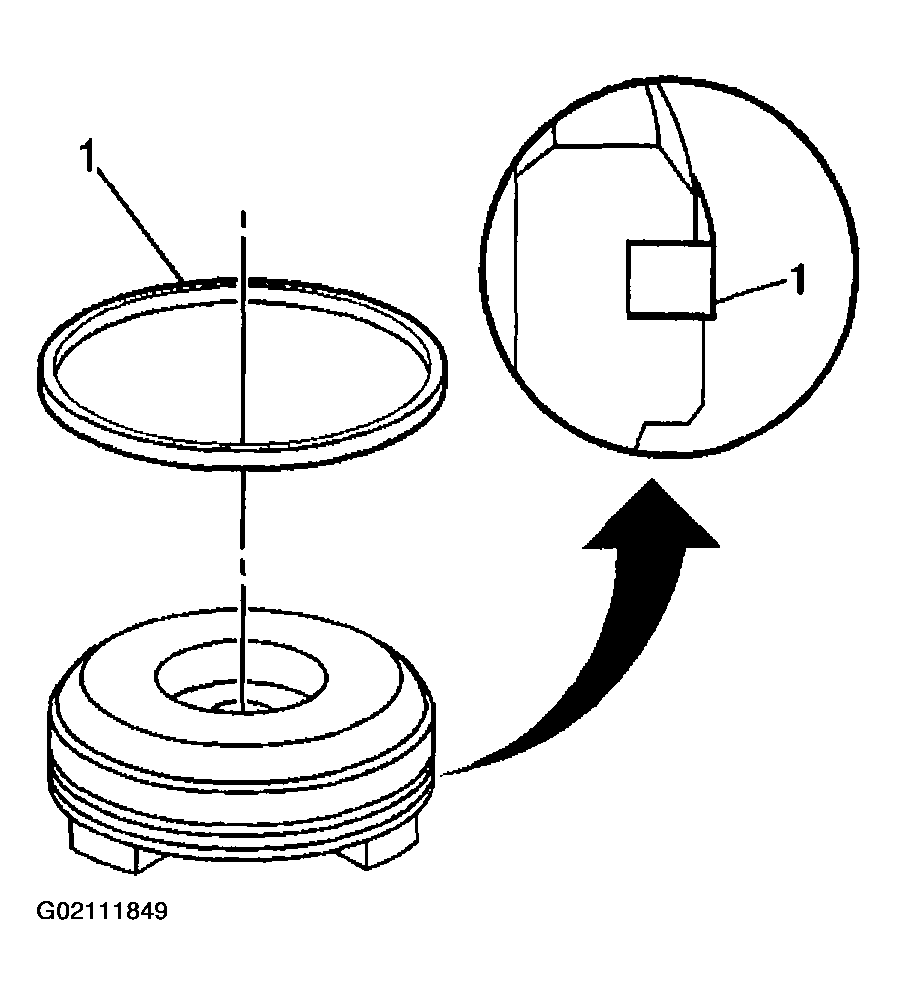

    Fig 8: Removing 3-4 Accumulator Piston Seal From 3-4 Accumulator Piston
    G02111849Courtesy of GENERAL MOTORS CORP.
