Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the exhaust pipe. Refer to EXHAUST MANIFOLD PIPE REPLACEMENT (6.0L AND 8.1L ENGINES) in Engine Exhaust.
  2. Remove the heat shield bolts.
  3. Remove the heat shield.

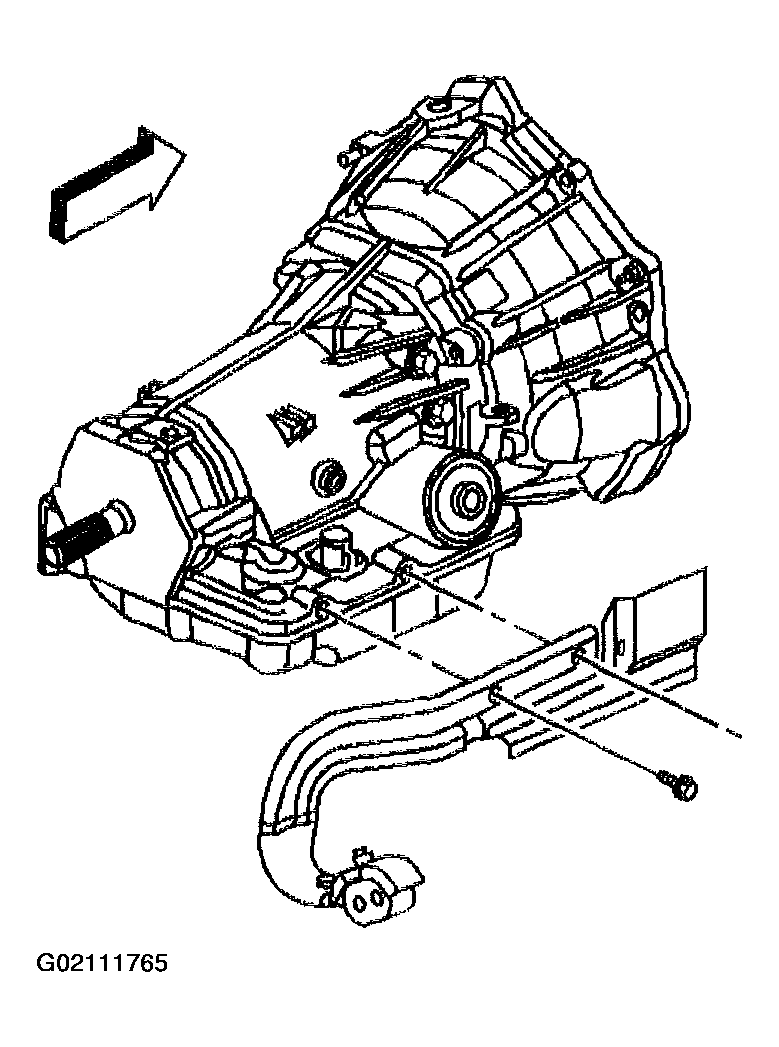

    Fig 1: Removing Heat Shield & Bolts
    G02111765Courtesy of GENERAL MOTORS CORP.
  4. Remove the oil pan bolt below the servo.
  5. Install the J 29714-A.
  6. Tighten the bolt on J 29714-A  in order to compress the servo cover.

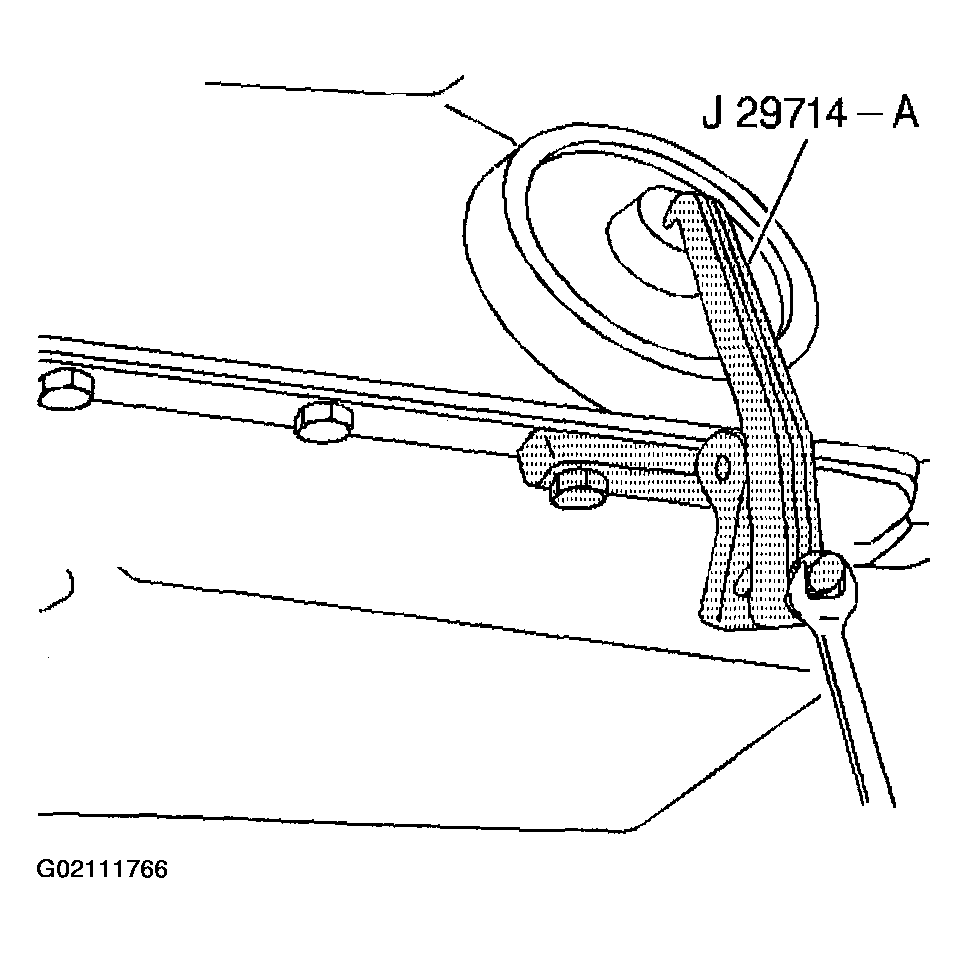

    Fig 2: Installing J 29714-A
    G02111766Courtesy of GENERAL MOTORS CORP.
  7. Remove the servo cover ring.
  8. Remove the J 29714-A  .

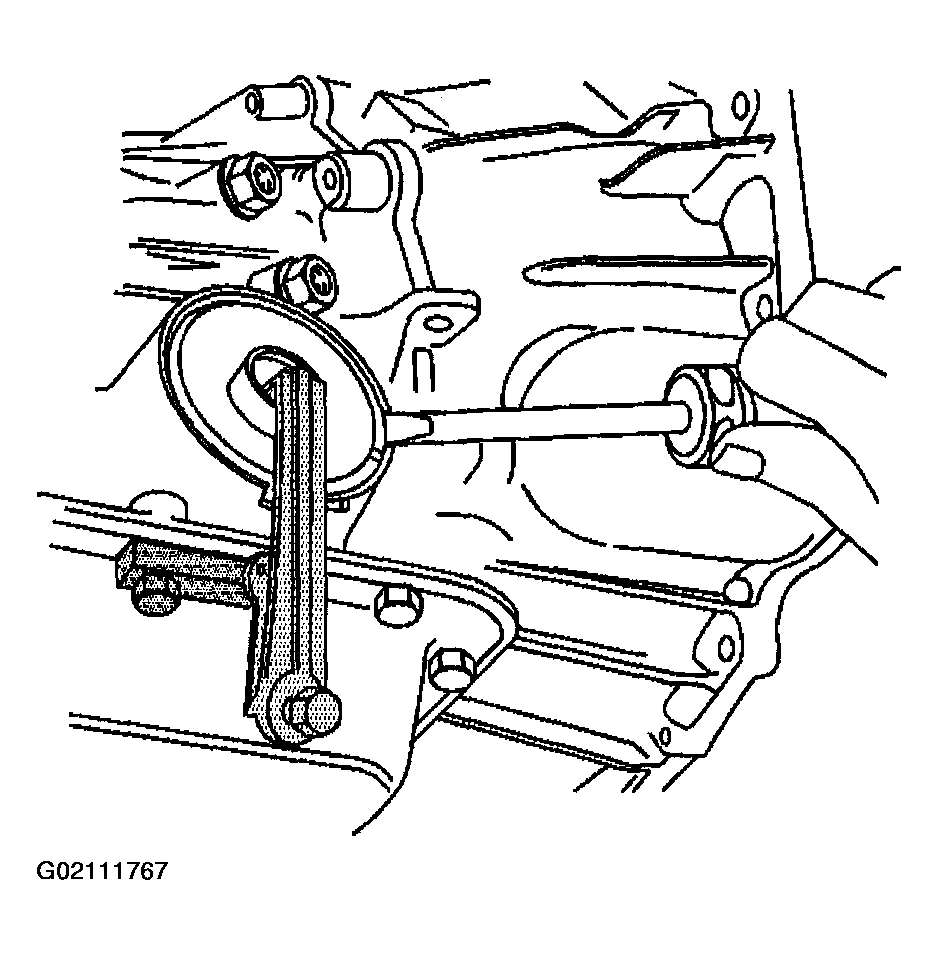

    Fig 3: Removing Servo Cover Ring J 29714-A
    G02111767Courtesy of GENERAL MOTORS CORP.
  9. Remove the servo cover and O-ring seal. If the cover is hung up on the seal, use a pick (2) in order to pull and stretch the seal (1) out of the groove. Cut and remove the O-ring seal before removing the cover.

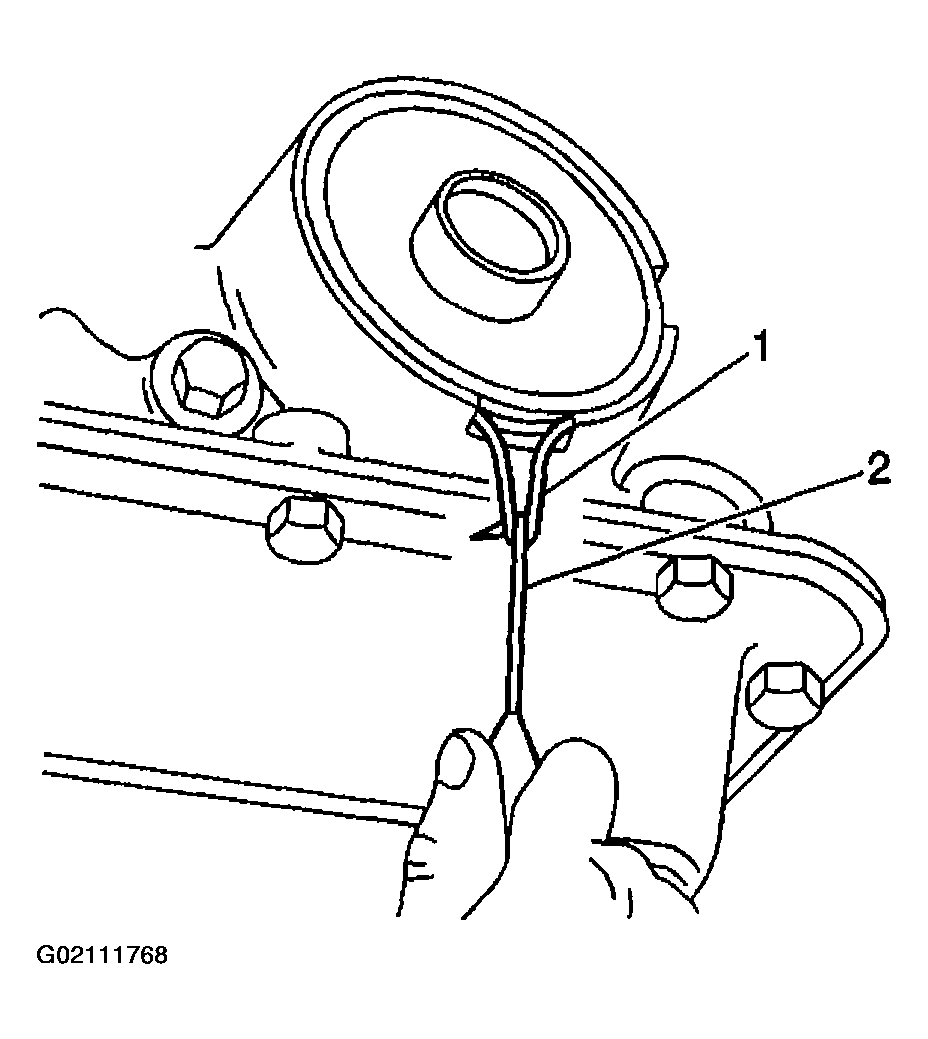

    Fig 4: Pulling & Stretching Seal Out Of Groove Using A Pick
    G02111768Courtesy of GENERAL MOTORS CORP.
  10. Remove the 2-4 servo.
  11. Inspect the 4th apply piston, 2-4 servo converter, 2nd apply piston, and the servo piston inner housing for the following defects:
    • Cracks
    • Scoring
    • Burrs and nicks

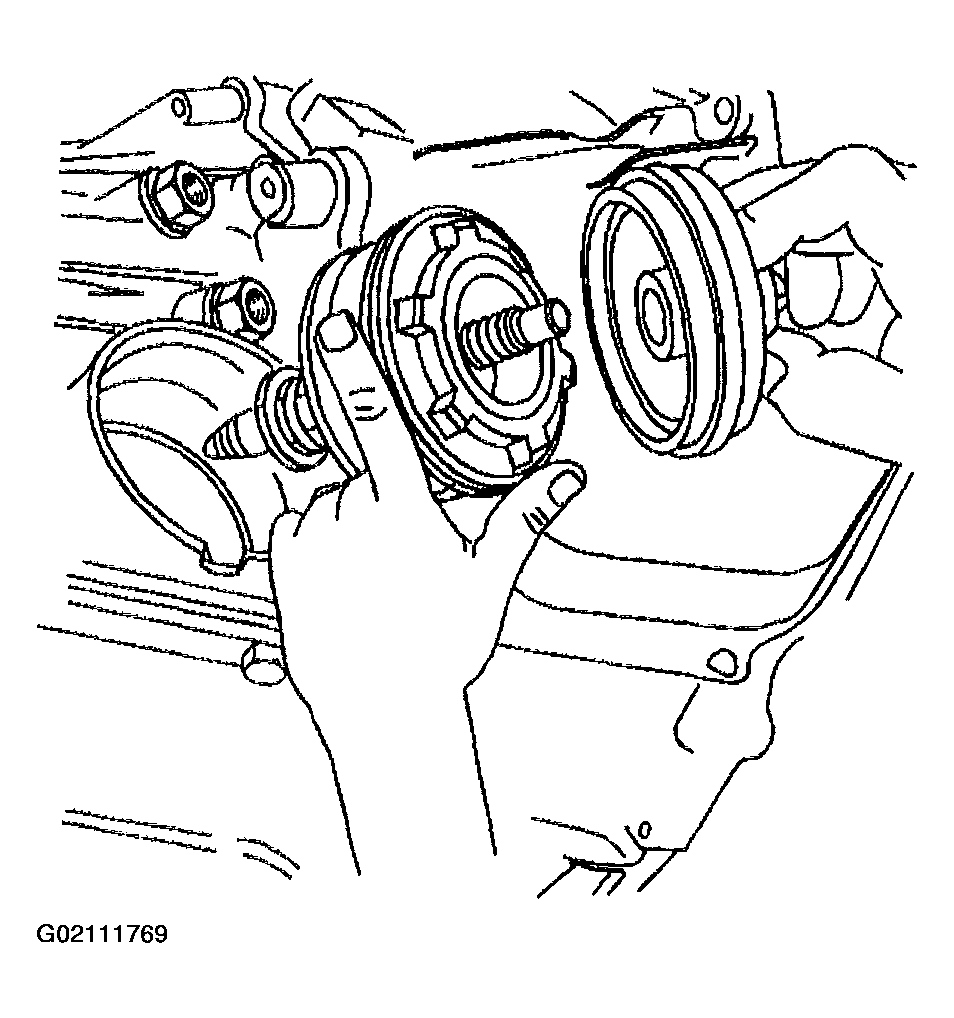

    Fig 5: Removing 2-4 Servo
    G02111769Courtesy of GENERAL MOTORS CORP.
