Transmission Scan Tool Data List
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Use the scan tool data list under the following conditions:
- The Diagnostic System Check - Automatic Transmission is complete.
- The on-board diagnostics are functioning properly.
- No DTCs are present.

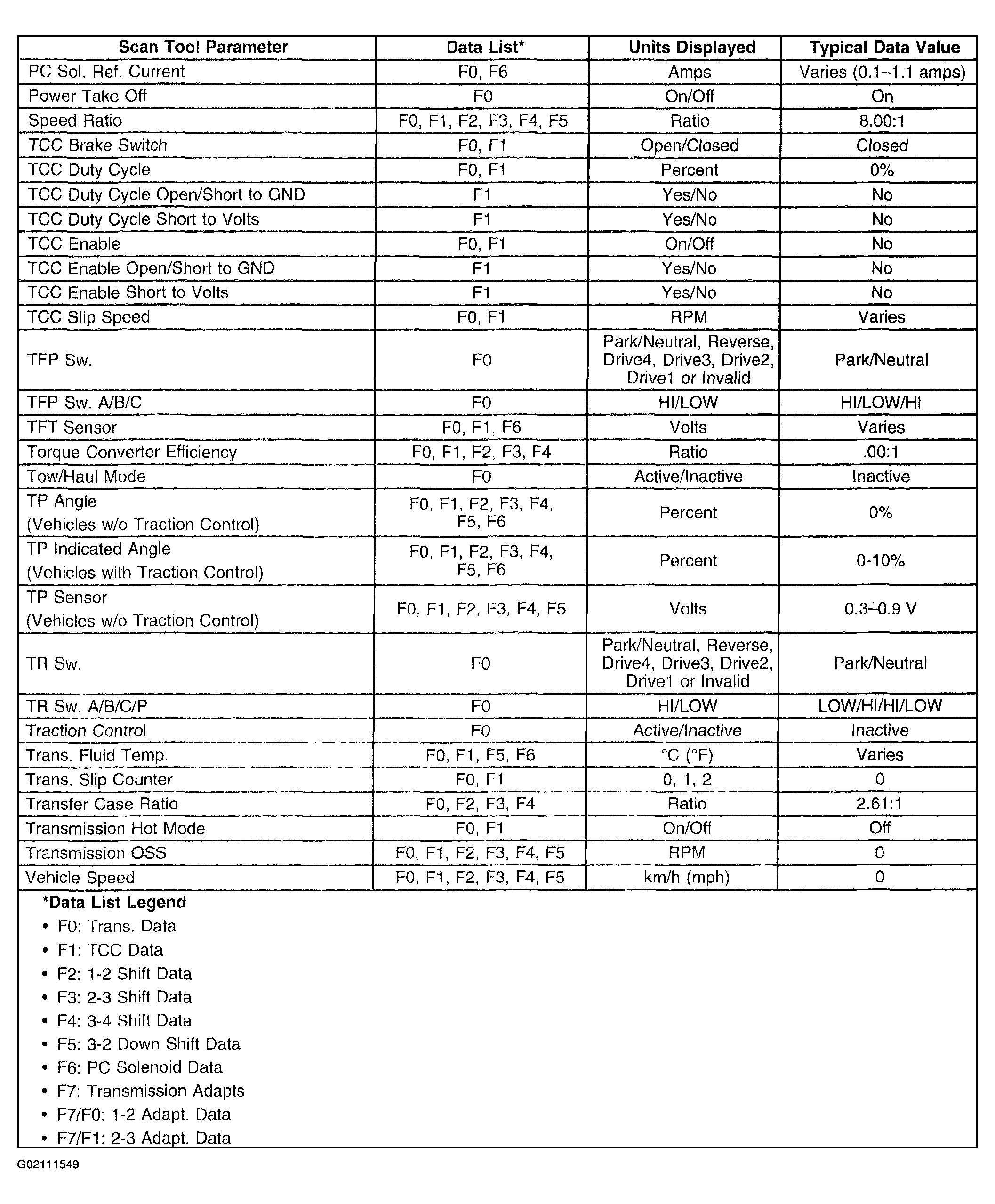

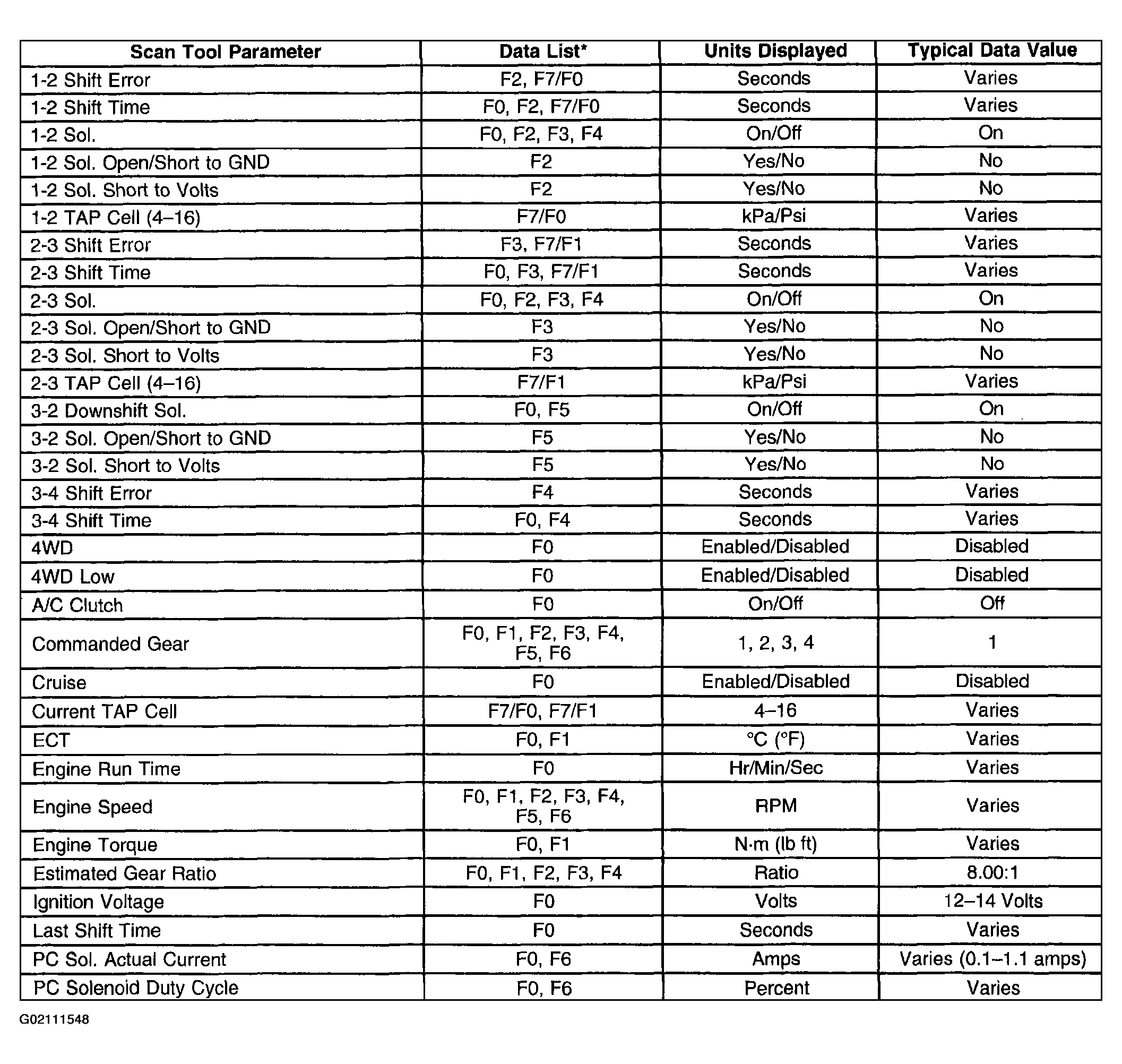

The values below represent a typical display recorded from a properly functioning system.
Important: Do not use a scan tool that displays faulty data. Report the condition to the scan tool manufacturer. The use of a faulty scan tool can result in misdiagnosis and the unnecessary replacement of parts.
Only the parameters listed below are used in this manual for diagnosing. If a scan tool displays other parameters, the values are not recommended by General Motors for use in diagnosis.
Scan tool values below were recorded under the following conditions:
- Engine at idle
- Upper radiator hose hot
- Closed throttle
- Transmission in PARK
- Closed Loop operation
- Accessories OFF
- Brake pedal not applied
