Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 3. This step tests for a short to ground in the 4WD low signal circuit (CKT 1694).
  2. 4. This step tests for an open in the 4WD low signal circuit (CKT 1694) or a faulty transfer case control module.

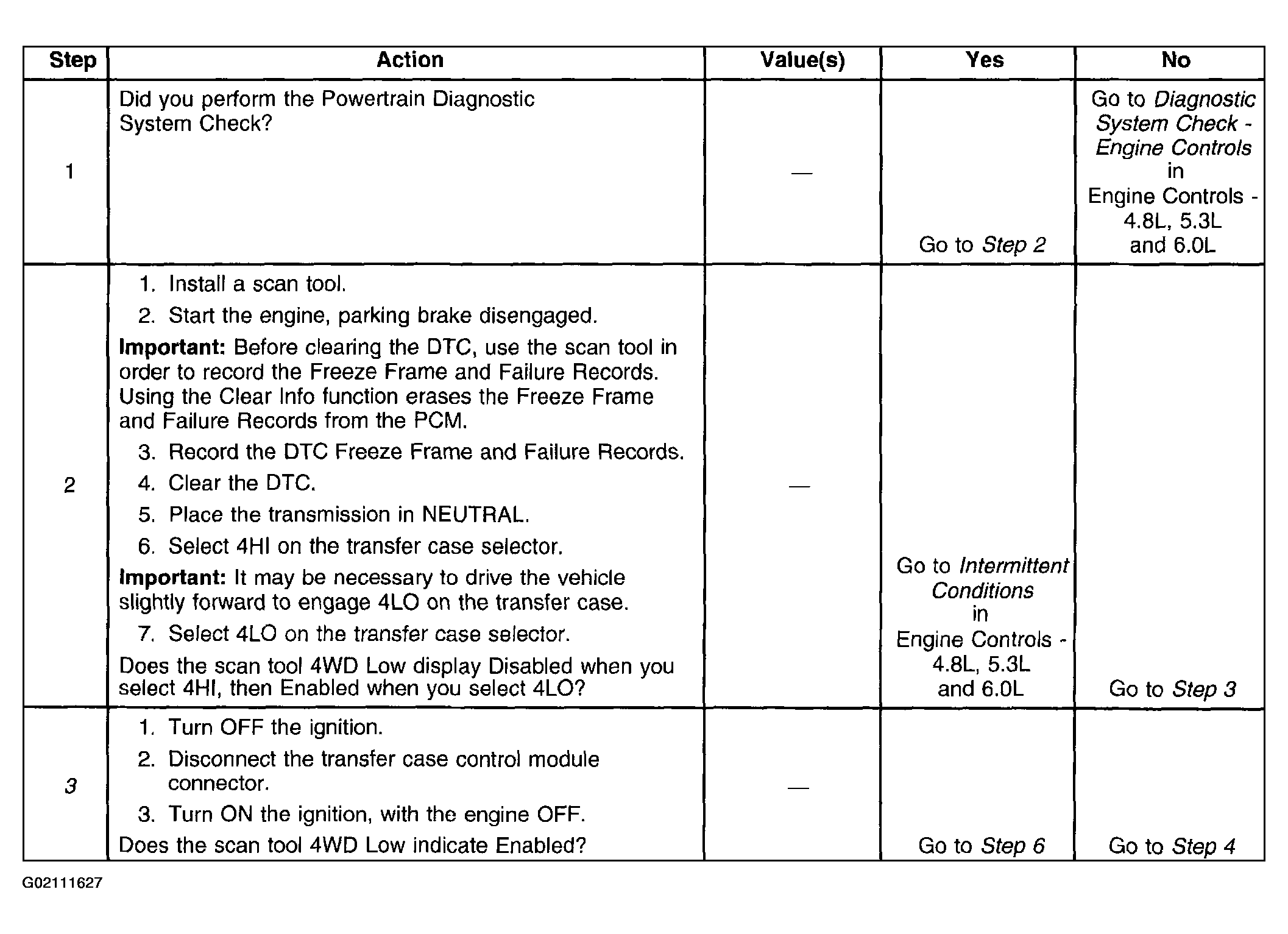

    Fig 1: Diagnostic Trouble Code (DTC P1875) Table (Step 1-3)
    G02111627Courtesy of GENERAL MOTORS CORP.

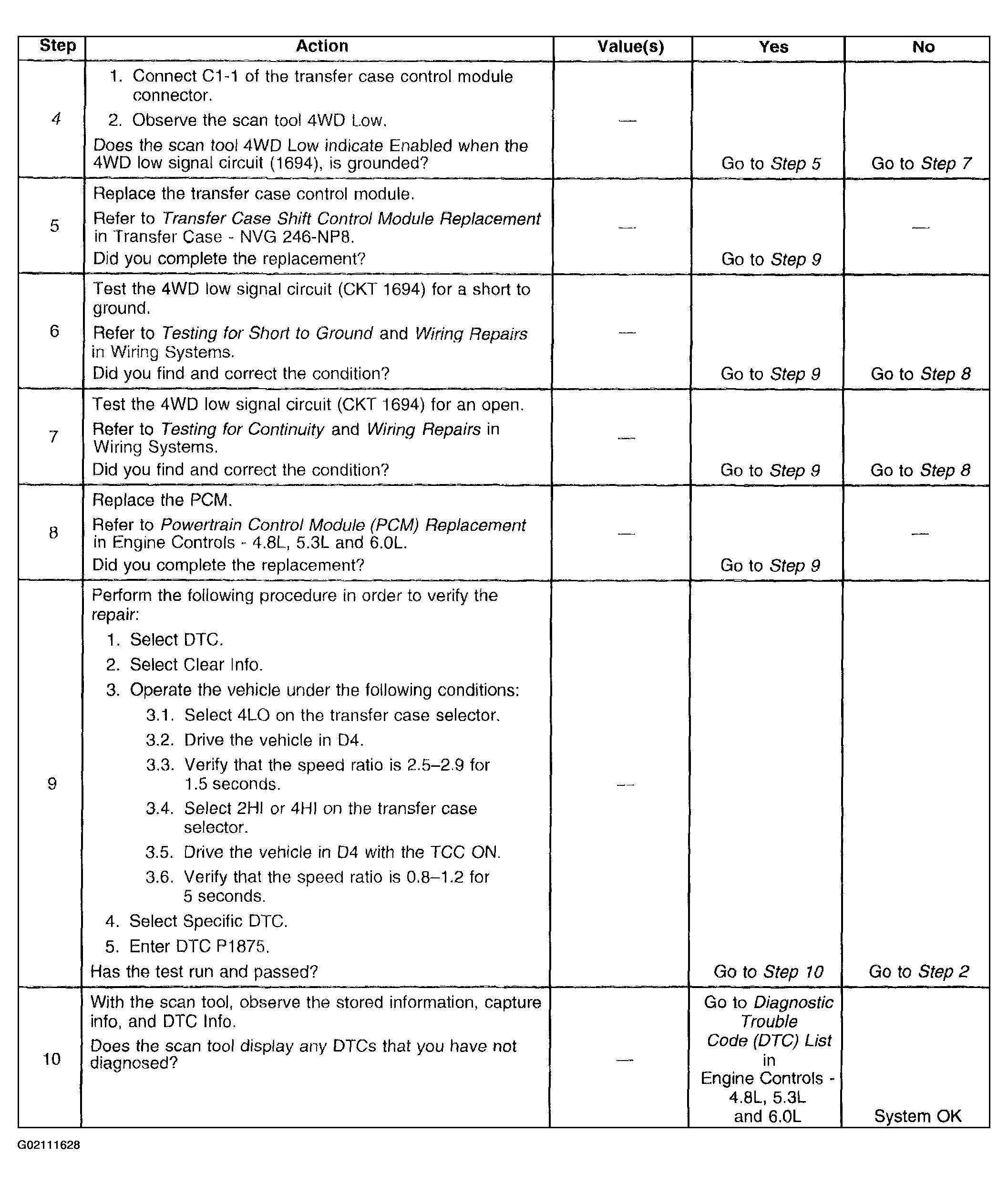

    Fig 2: Diagnostic Trouble Code (DTC P1875) Table (Step 4-10)
    G02111628Courtesy of GENERAL MOTORS CORP.
