Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 4. This step tests for voltage to the solenoid.
  2. 5. This step tests the ability of the PCM and wiring to control the ground circuit.
  3. 7. This step tests the resistance of the TCC PWM solenoid valve and the automatic transmission wiring harness assembly.

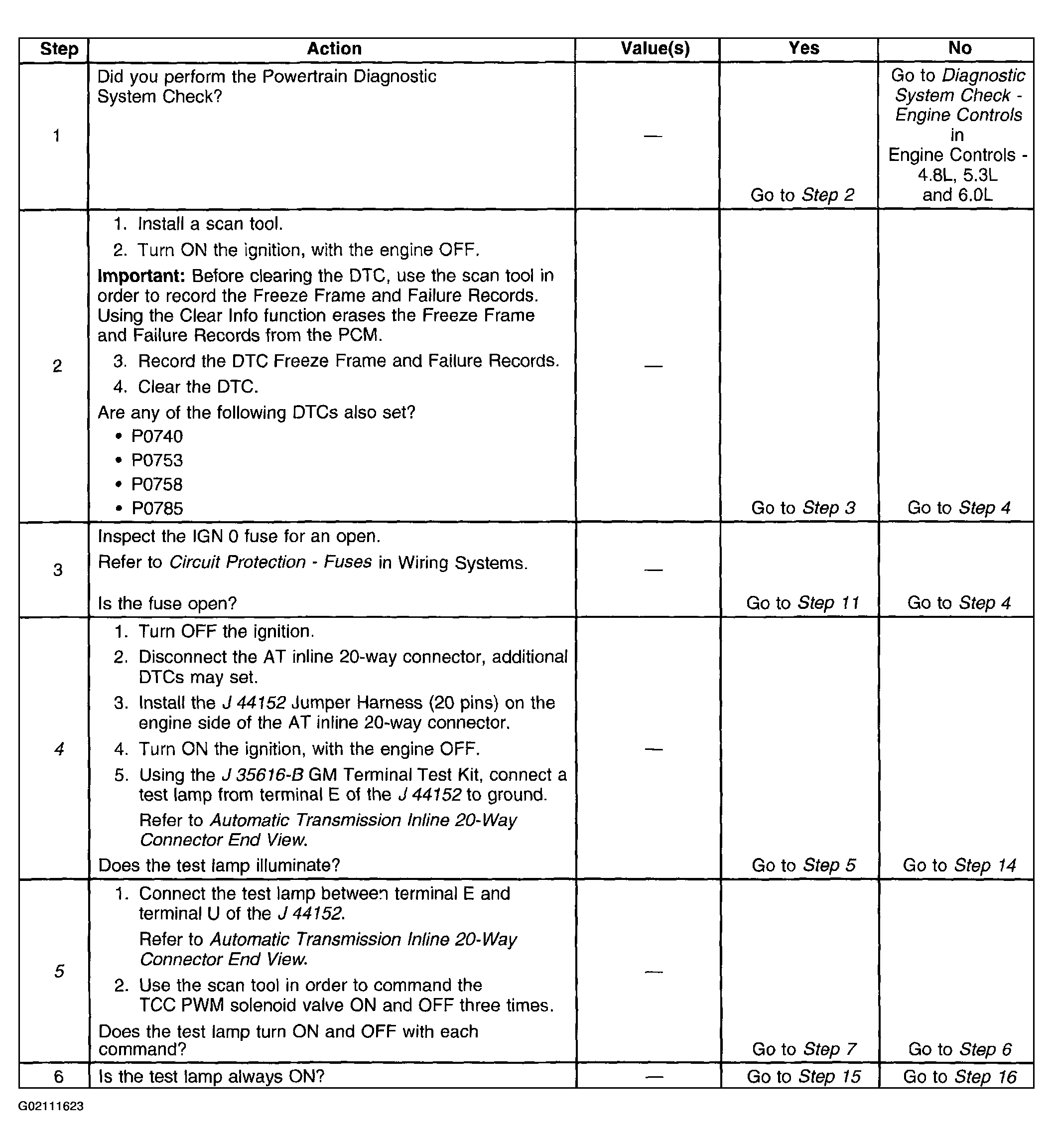

    Fig 1: Diagnostic Trouble Code (DTC P1860) Table (Step 1-6)
    G02111623Courtesy of GENERAL MOTORS CORP.

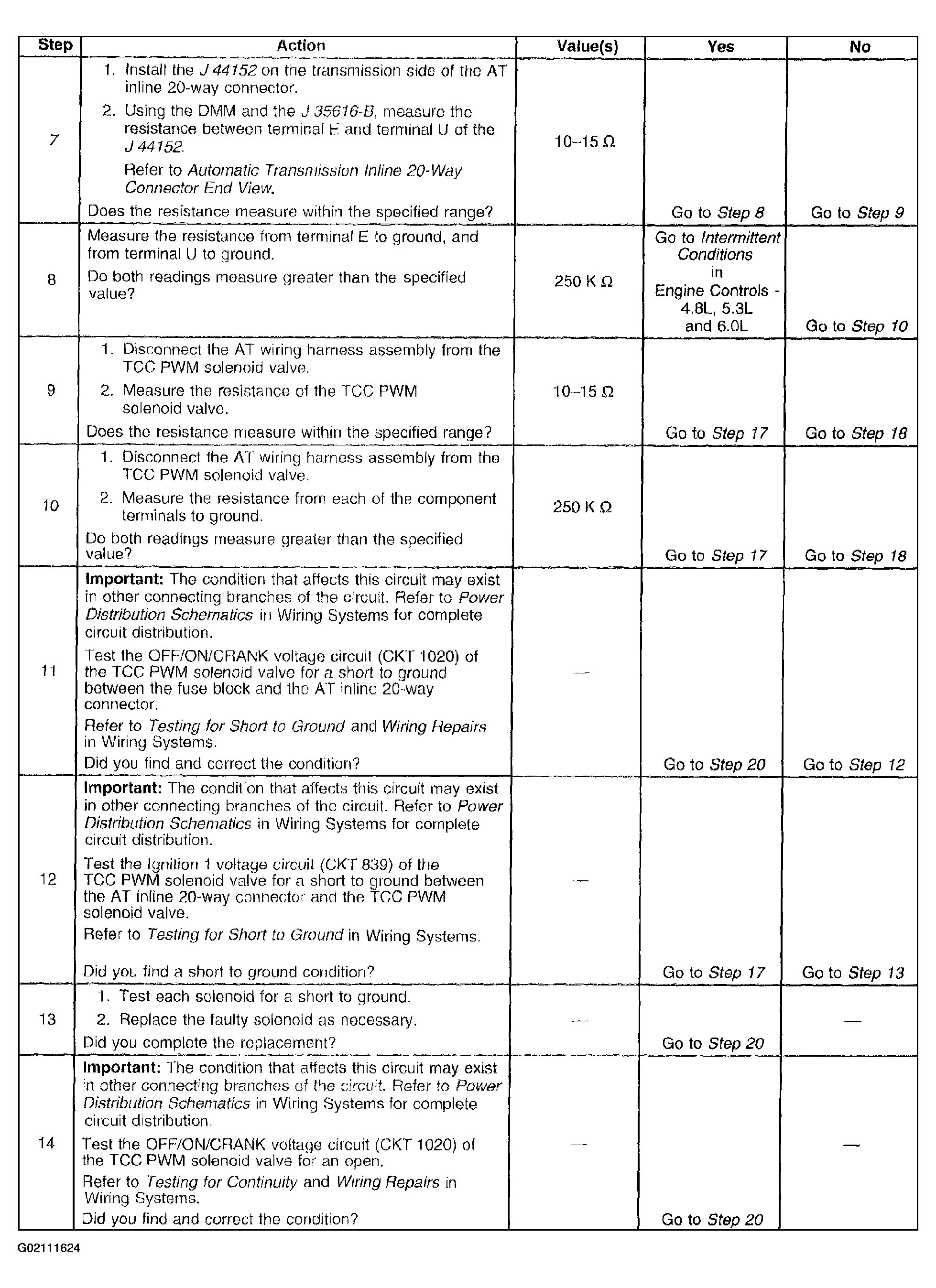

    Fig 2: Diagnostic Trouble Code (DTC P1860) Table (Step 7-14)
    G02111624Courtesy of GENERAL MOTORS CORP.

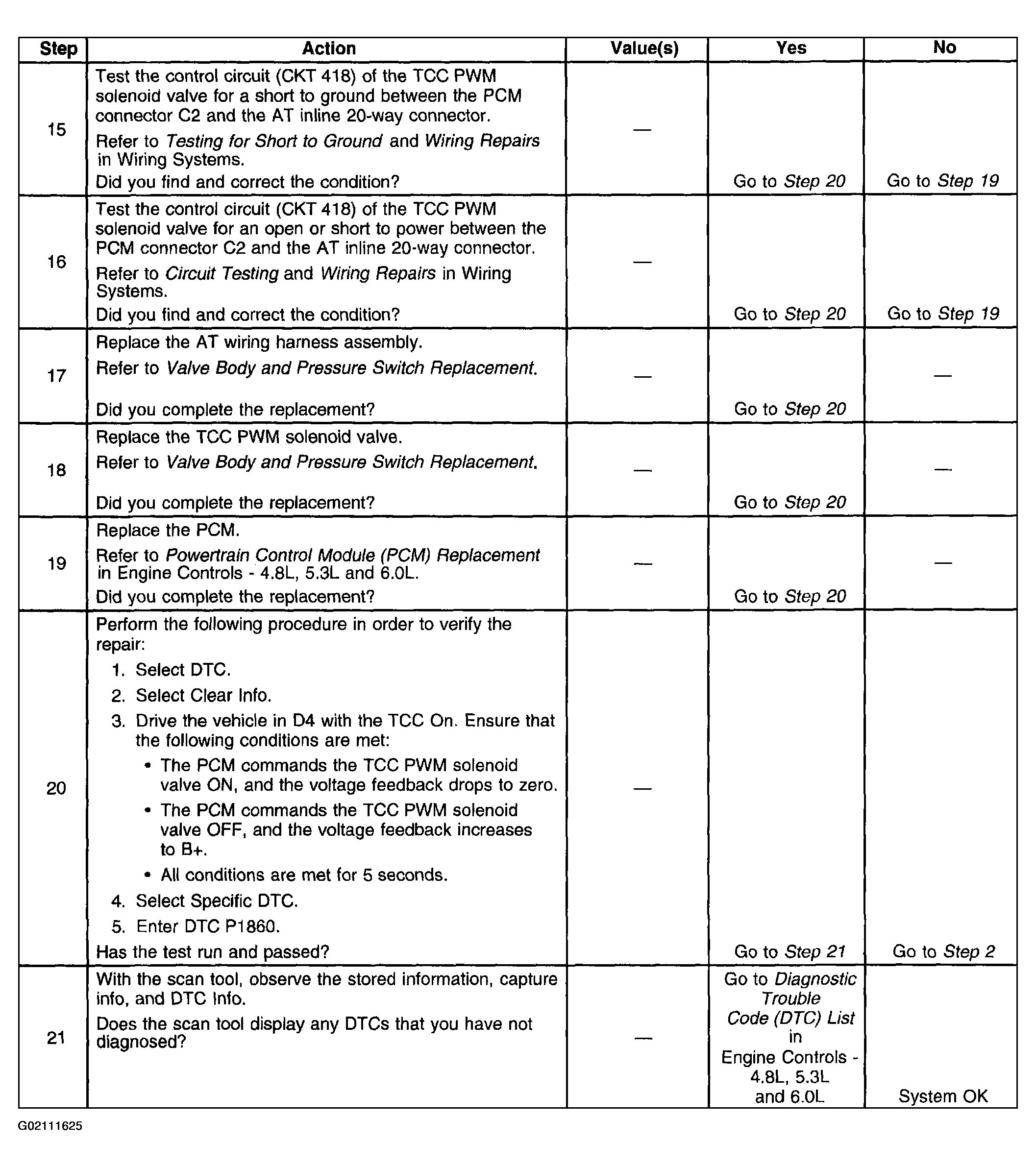

    Fig 3: Diagnostic Trouble Code (DTC P1860) Table (Step 15-21)
    G02111625Courtesy of GENERAL MOTORS CORP.
