Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. This step inspects for excessive TCC slip when the TCC is commanded ON.
  2. 3. This step inspects for possible causes of no TCC apply.

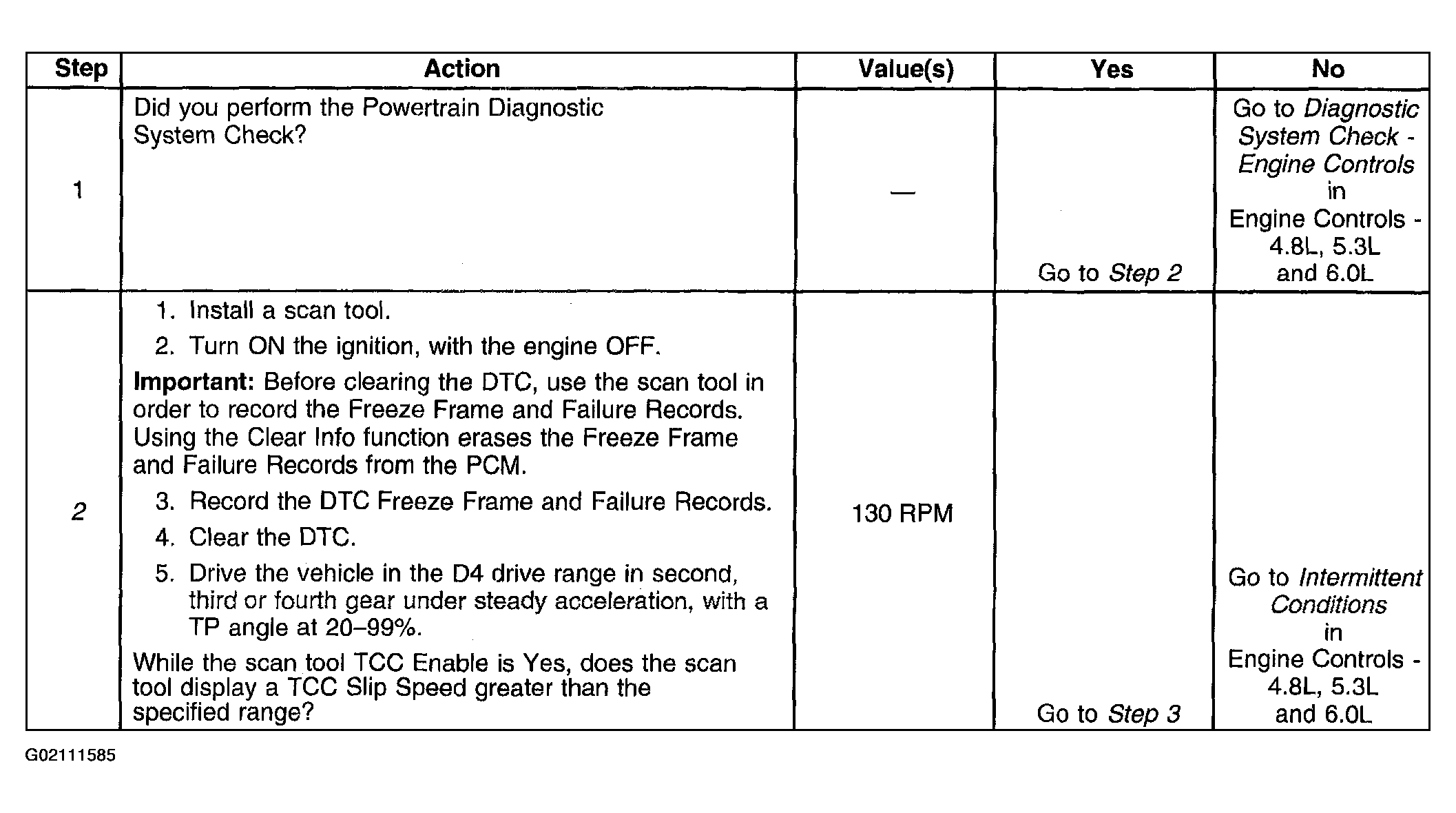

    Fig 1: Diagnostic Trouble Code (DTC P0741) Table (Step 1-2)
    G02111585Courtesy of GENERAL MOTORS CORP.

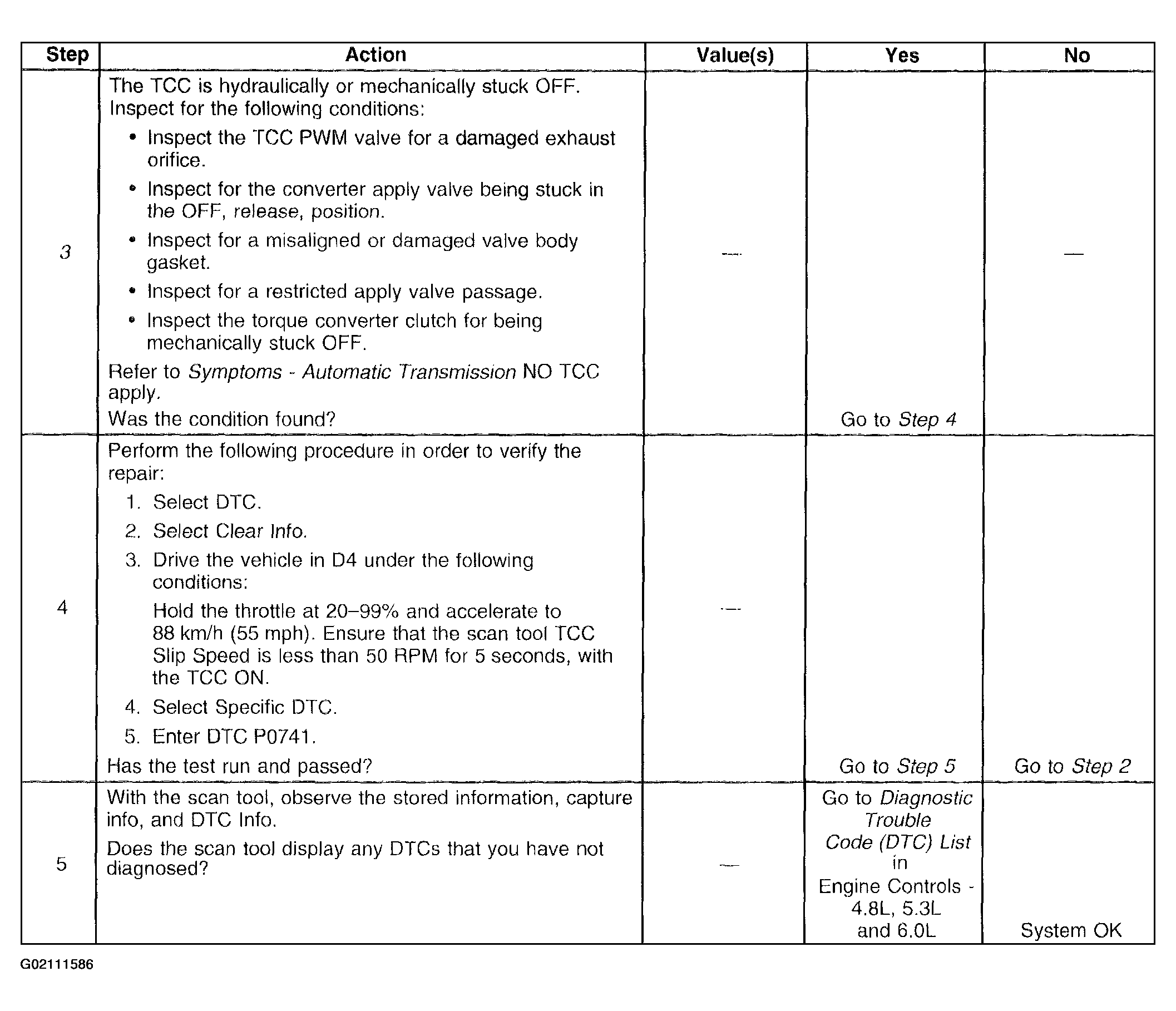

    Fig 2: Diagnostic Trouble Code (DTC P0741) Table (Step 3-5)
    G02111586Courtesy of GENERAL MOTORS CORP.
