Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 3. This step tests the VSS assembly circuit.
  2. 4. This step tests the integrity of the VSS assembly.

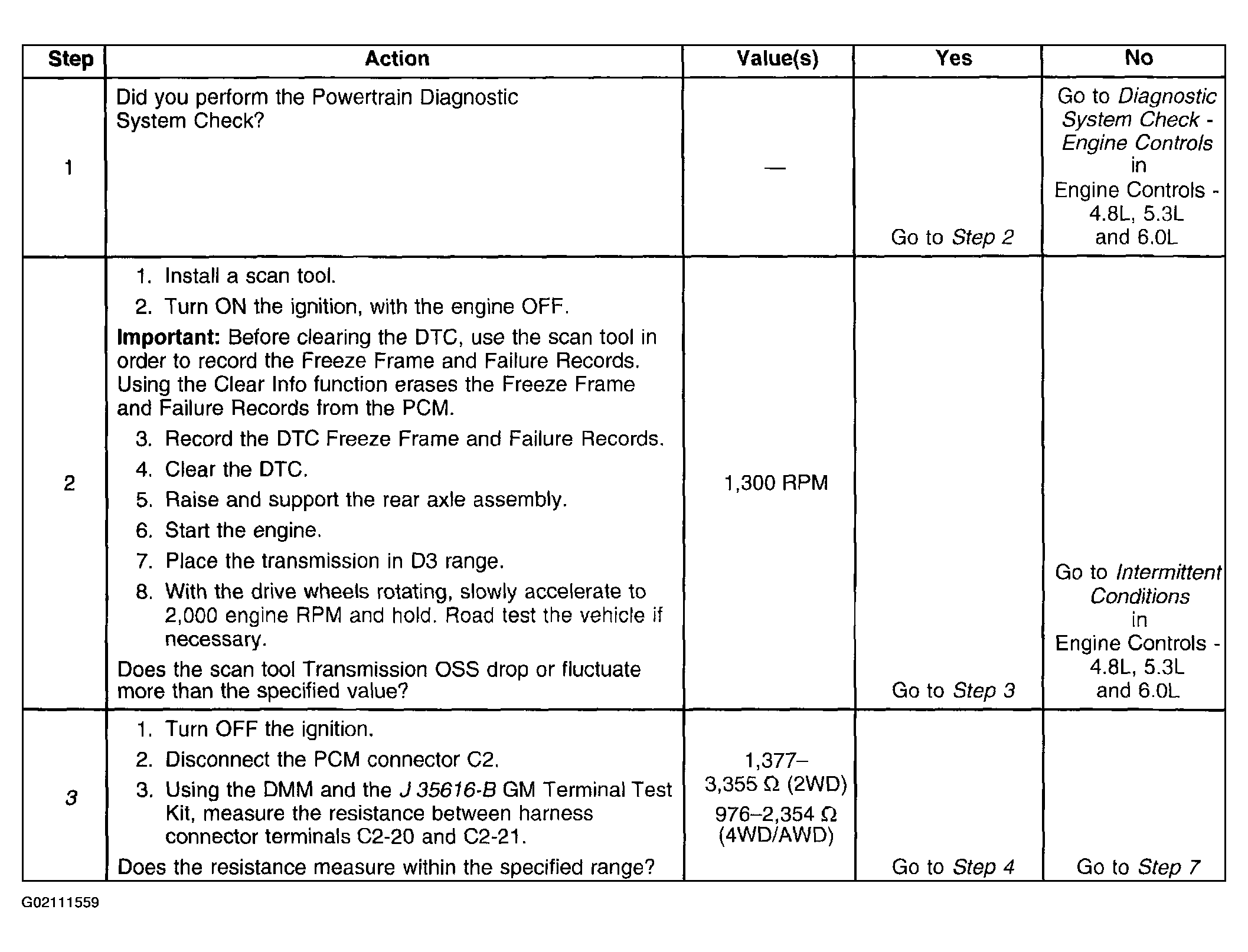

    Fig 1: Diagnostic Trouble Code (DTC P0503) (Step 1-3)
    G02111559Courtesy of GENERAL MOTORS CORP.

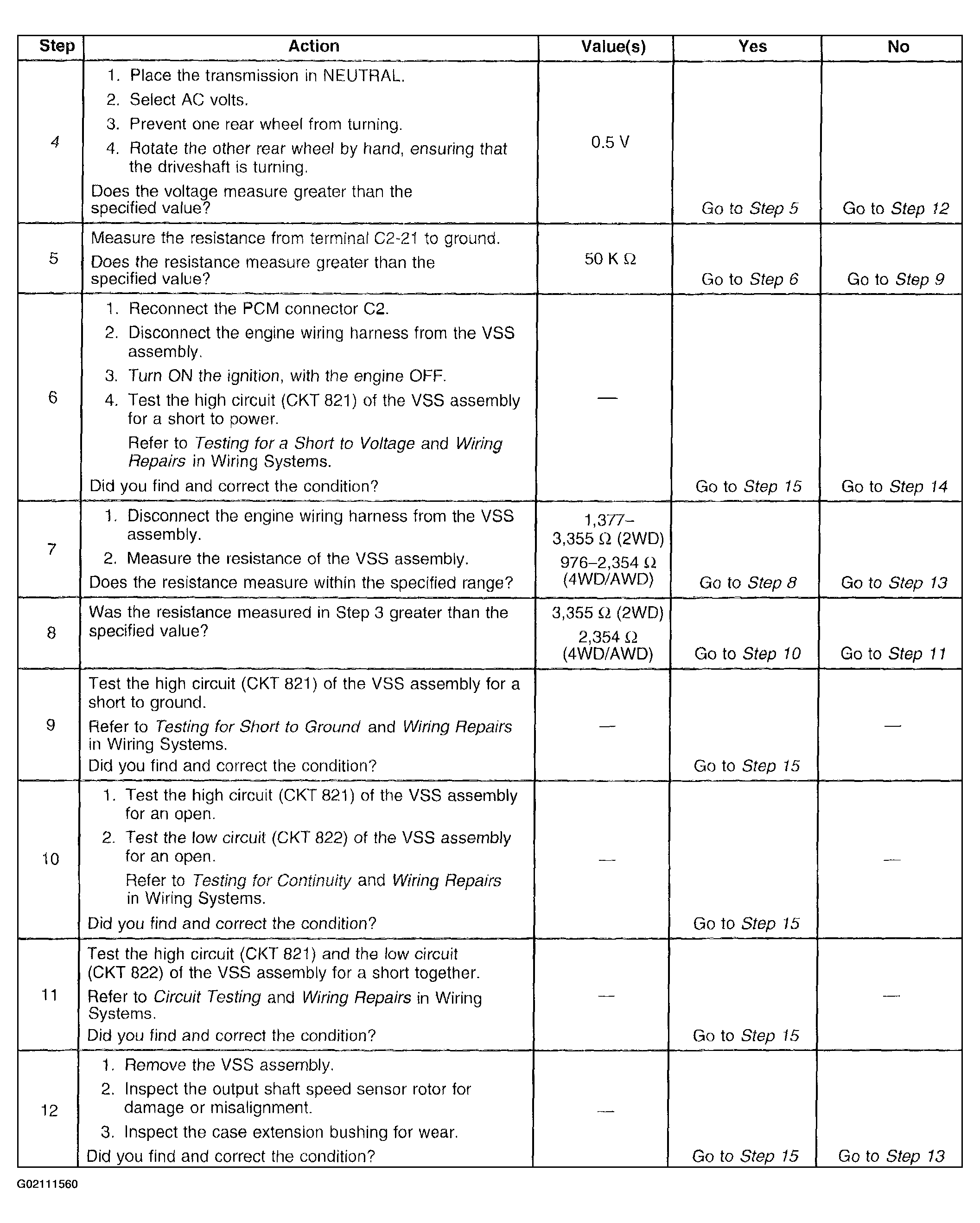

    Fig 2: Diagnostic Trouble Code (DTC P0503) (Step 4-12)
    G02111560Courtesy of GENERAL MOTORS CORP.
    Fig 3: Diagnostic Trouble Code (DTC P0503) (Step 13-16)
    G02111561Courtesy of GENERAL MOTORS CORP.
