Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the J 43484  (2) to the J 8092  (1).
  2. Install the seal onto the J 43484.
  3. Using the J 43484  (2) and the J 8092  (1), install the seal.
  4. Install the front propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - FRONT in Propeller Shaft.
  5. Check the fluid level. Add fluid if necessary.
  6. Install the transfer case shield, if equipped. Refer to TRANSFER CASE SHIELD REPLACEMENT .

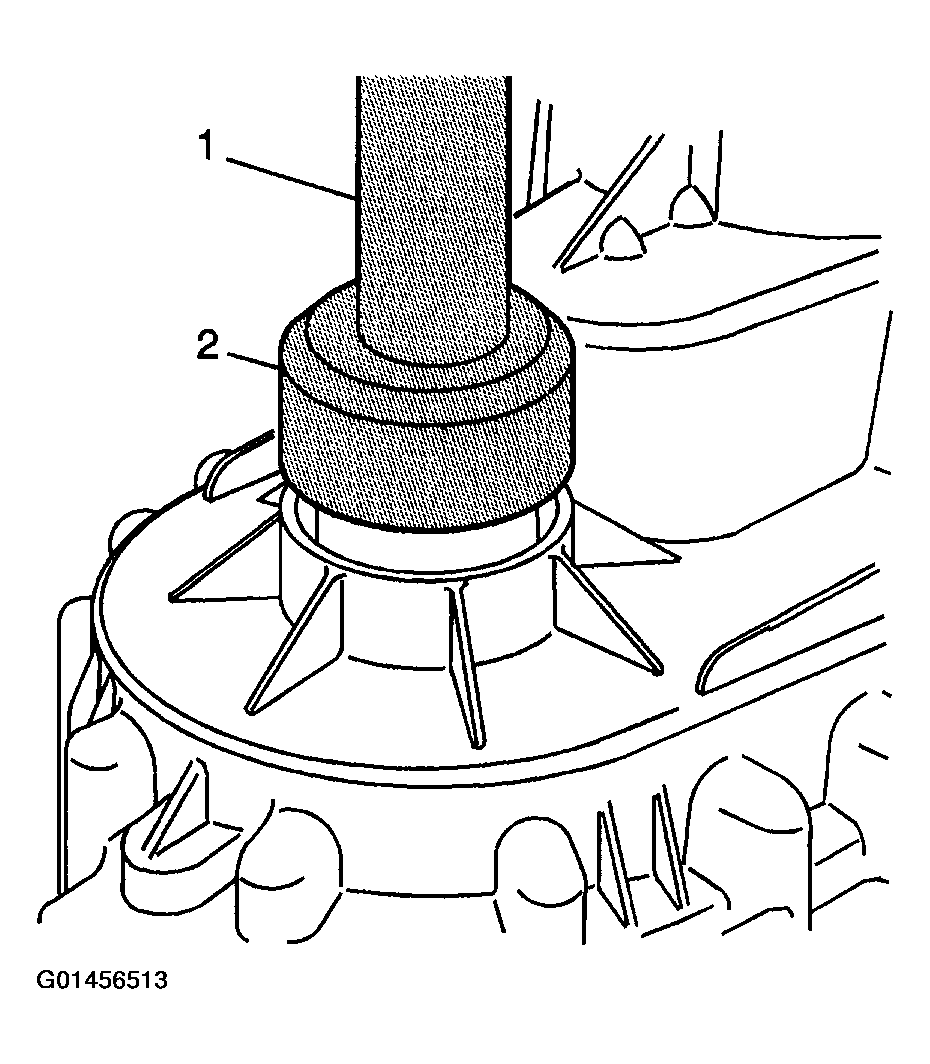

    Fig 1: Installing Outer Shaft Seal
    G01456513Courtesy of GENERAL MOTORS CORP.
