Transfer Case Jumps Out Of Gear

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

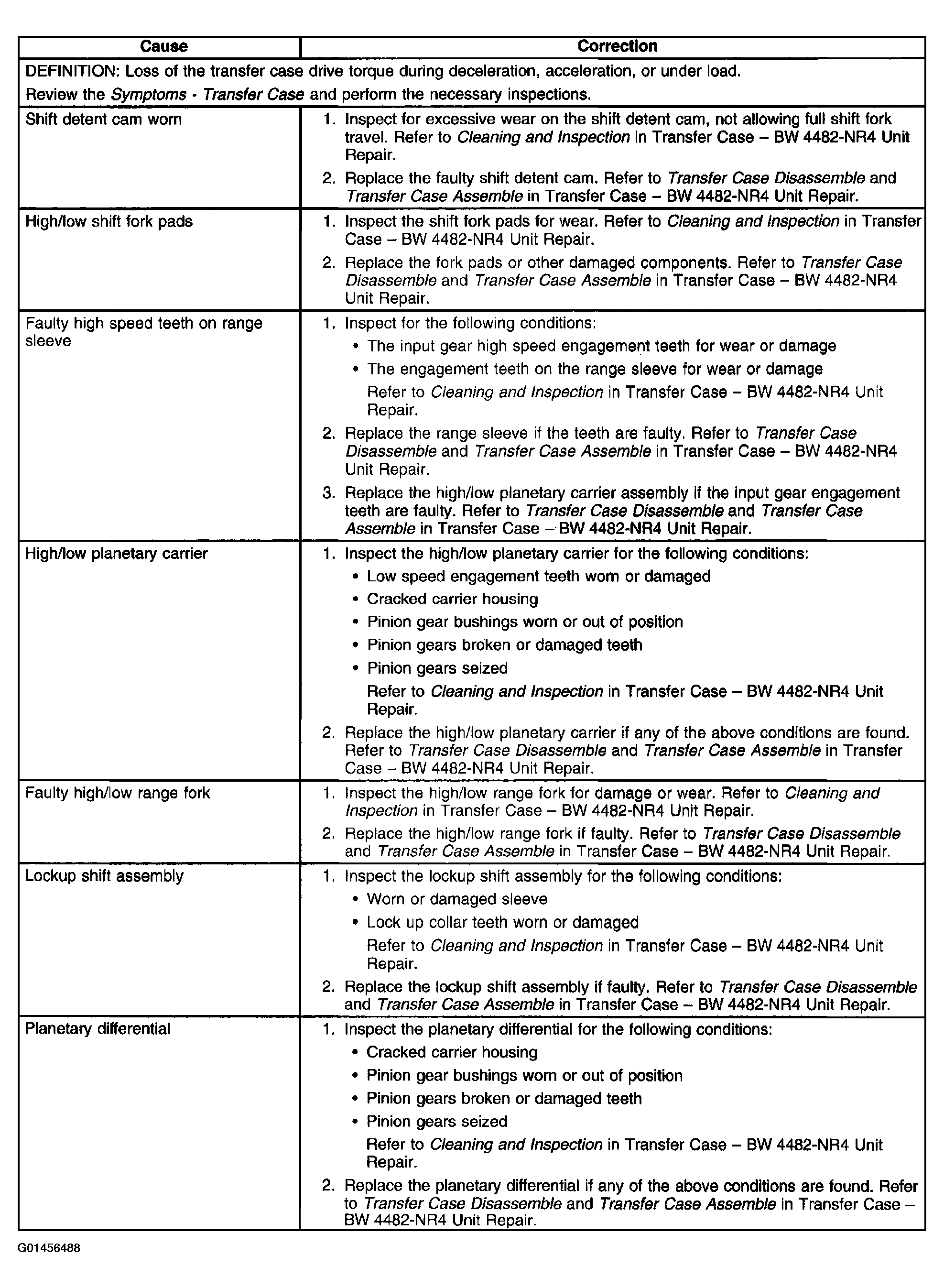

Fig 1: Transfer Case Jumps Out Of Gear - Diagnostic Specifications (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

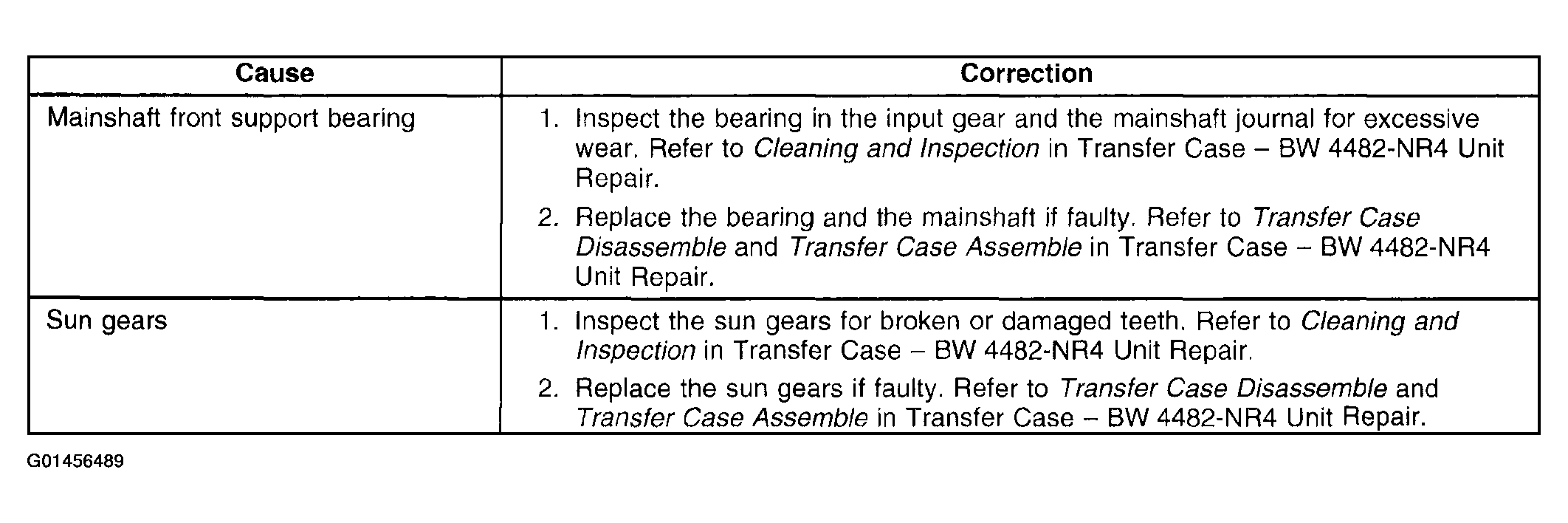

Fig 2: Transfer Case Jumps Out Of Gear - Diagnostic Specifications (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
