Transfer Case Clunk During Acceleration And Deceleration

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

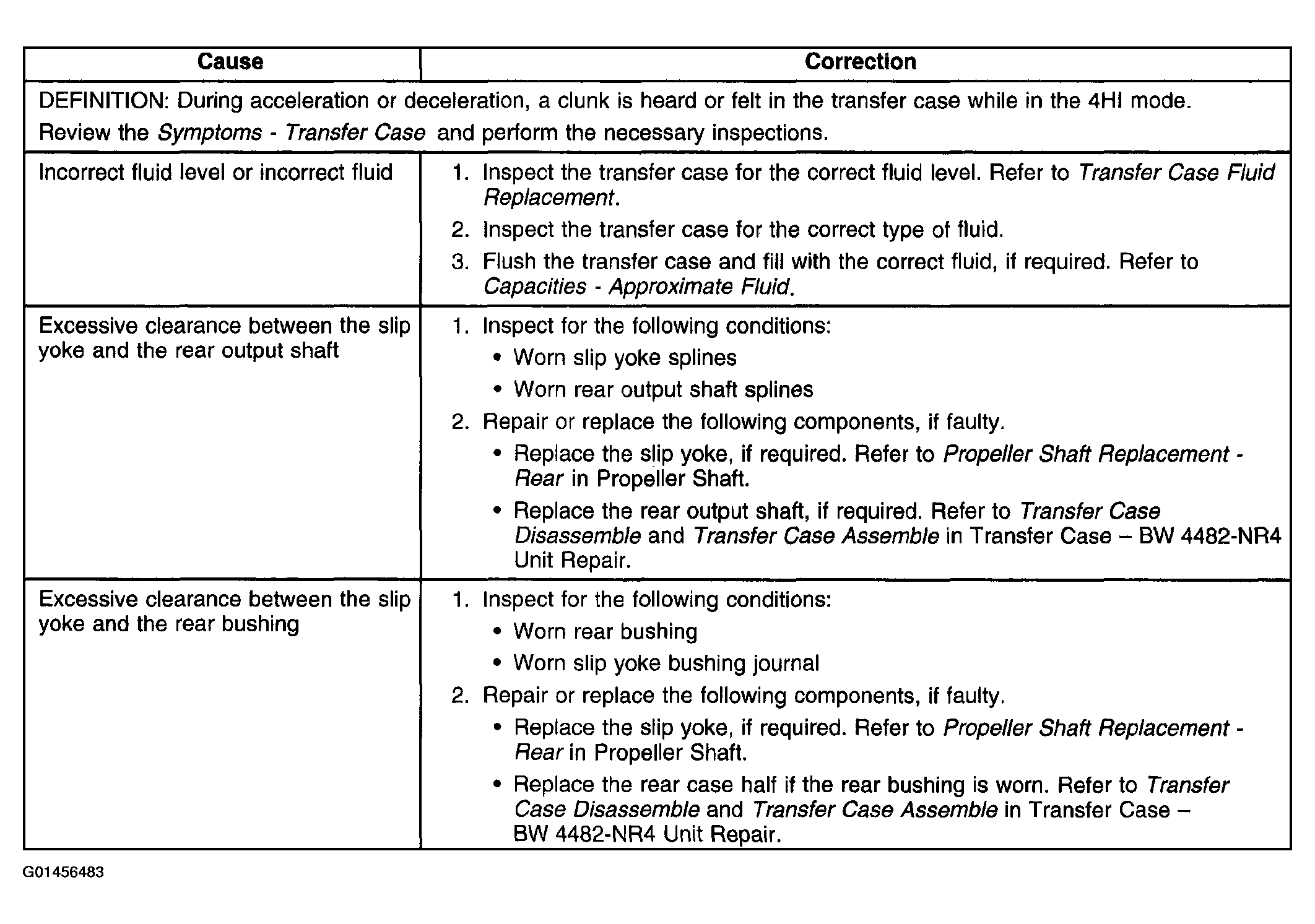

Fig 1: Transfer Case Clunk During Acceleration And Deceleration - Diagnostic Specifications (1 Of 2)
G01456483Courtesy of GENERAL MOTORS CORP.

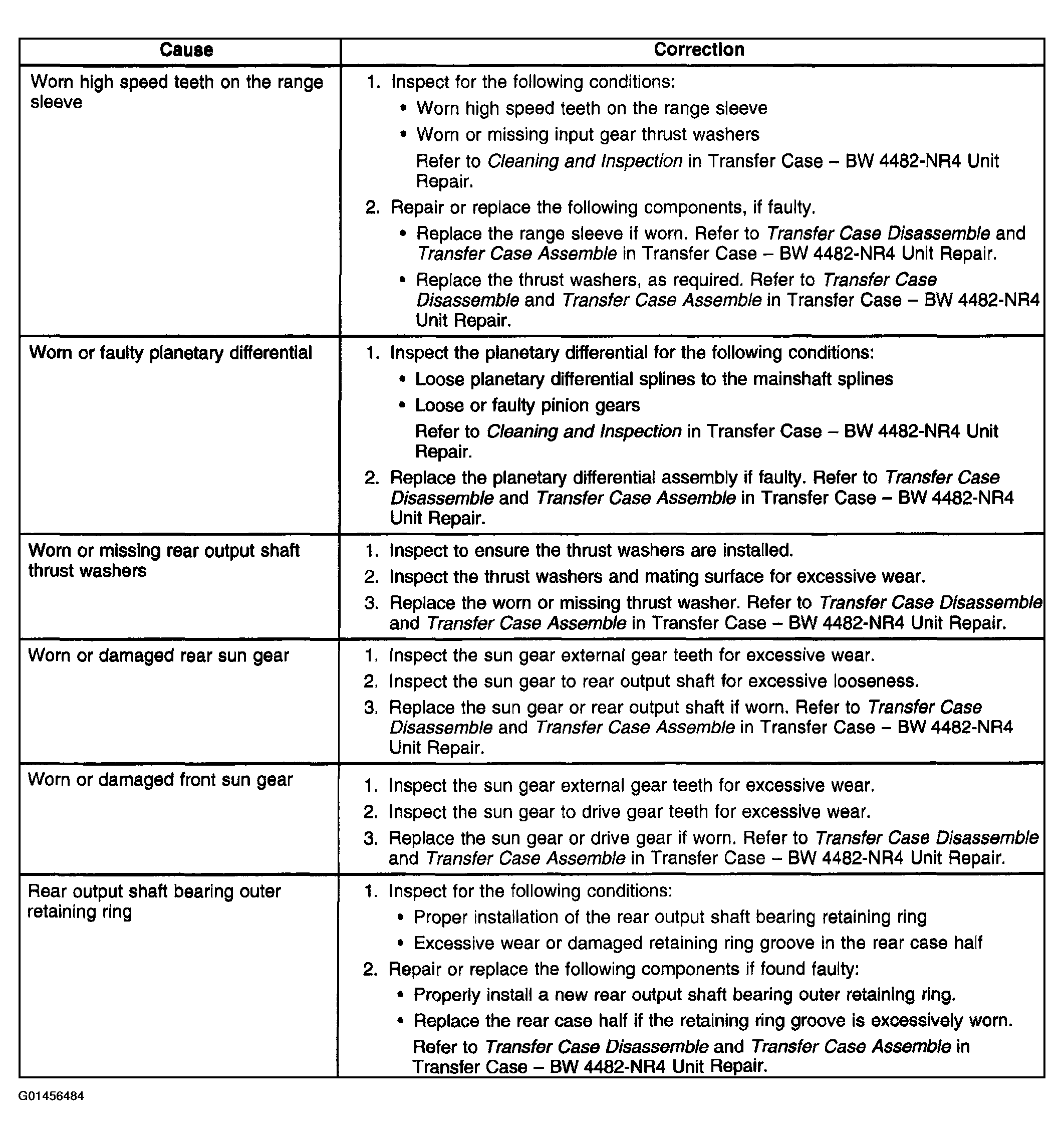

Fig 2: Transfer Case Clunk During Acceleration And Deceleration - Diagnostic Specifications (2 Of 2)
G01456484Courtesy of GENERAL MOTORS CORP.
