Special Tools and Equipment

WARNING: This page is about a different car, the 2003 GMC Yukon, 2003 Cadillac Escalade EXT, 2003 Cadillac Escalade ESV, and 2003 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

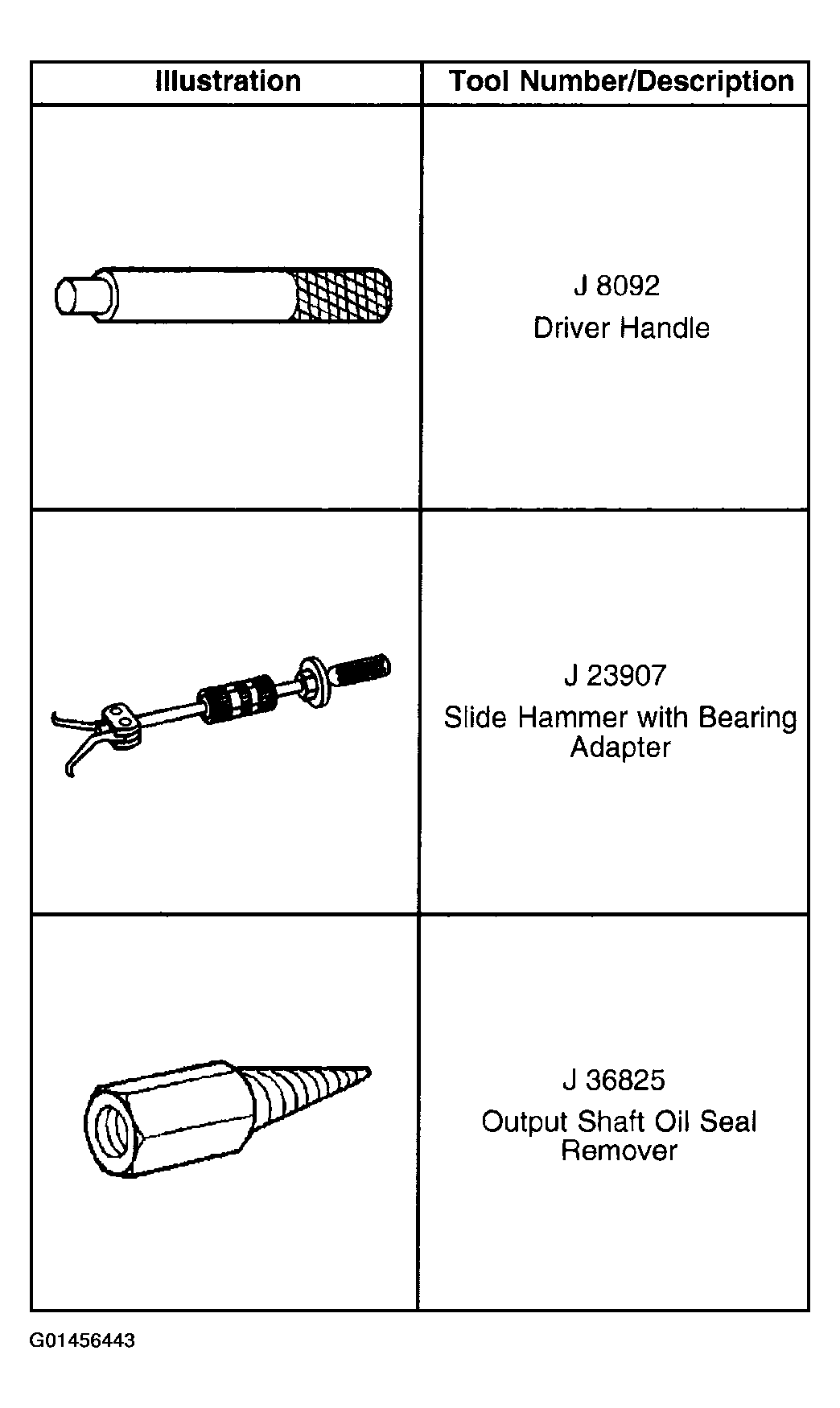

Fig 1: Identifying Special Tools And Equipment (1 Of 2)
G01456443Courtesy of GENERAL MOTORS CORP.

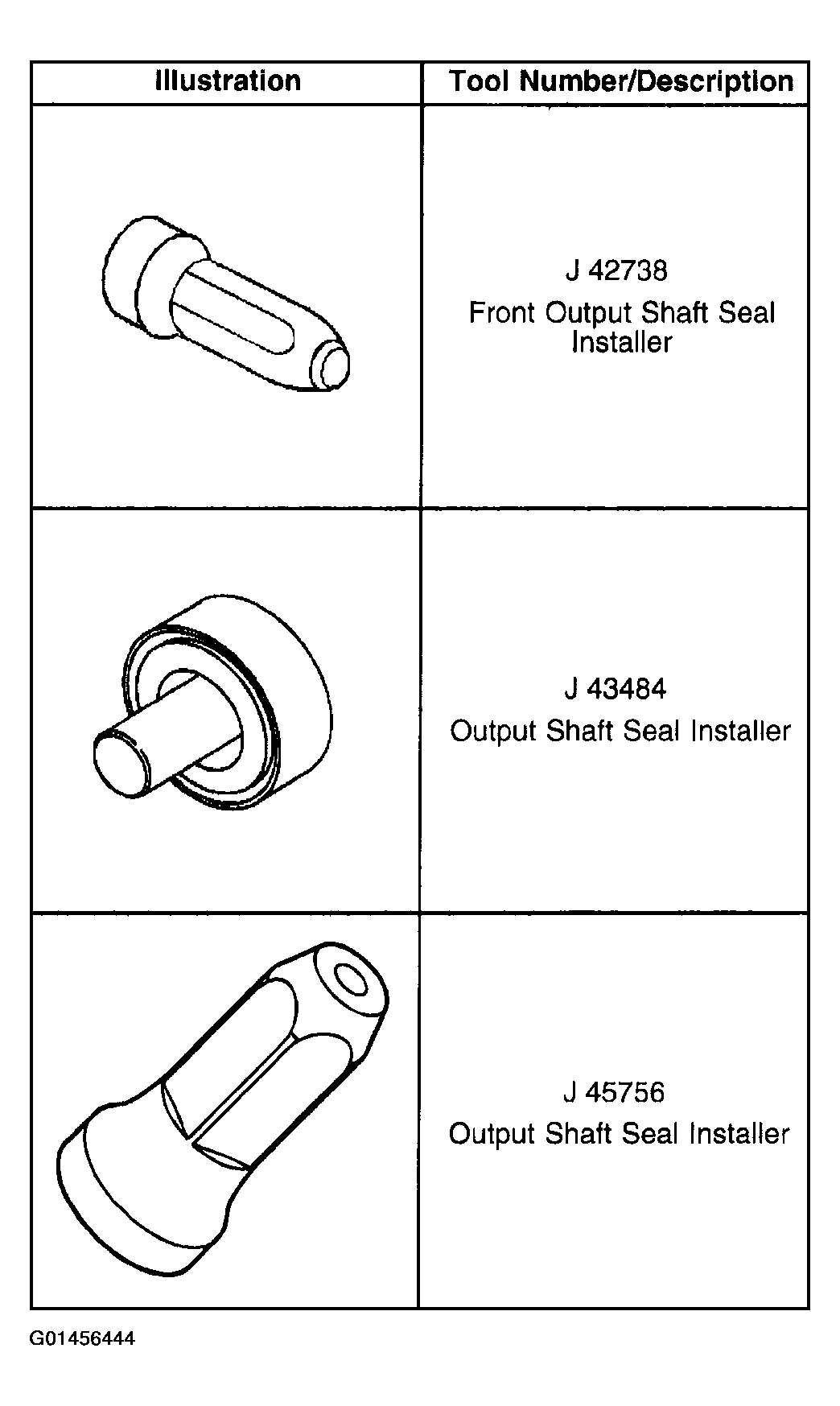

Fig 2: Identifying Special Tools And Equipment (2 Of 2)
G01456444Courtesy of GENERAL MOTORS CORP.
