Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Yukon, 2003 Cadillac Escalade EXT, 2003 Cadillac Escalade ESV, and 2003 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using J 45756  , install a NEW front output shaft seal.
  2. Install the rear propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT -- REAR in Propeller Shaft.
  3. Check the fluid level. Add fluid, if necessary.
  4. Install the transfer case shield, if equipped. Refer to TRANSFER CASE SHIELD REPLACEMENT  .
  5. Lower the vehicle.

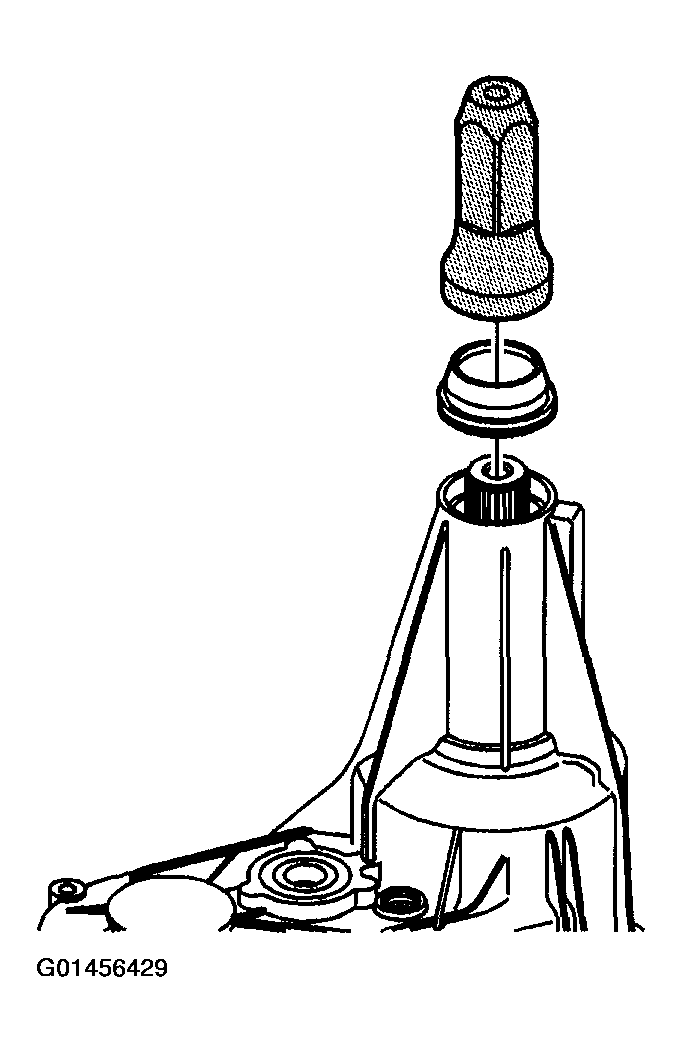

    Fig 1: Installing Rear Output Shaft Seal
    G01456429Courtesy of GENERAL MOTORS CORP.
