Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Yukon, 2003 Cadillac Escalade EXT, 2003 Cadillac Escalade ESV, and 2003 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Always use a new seal for the adapter. Do not use any type of sealant or adhesive in place of or with the seal.

  1. Install a NEW seal onto the adapter.

    Important:  The transfer case adapter must be installed so that the adapter is evenly seated to the transmission before installing the retaining nuts.

  2. Install the adapter.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the adapter bolts.

    Tighten

    Tighten the bolts to 50 N.m (37 lb ft).

  4. Install the transfer case. Refer to TRANSFER CASE ASSEMBLY REPLACEMENT  .

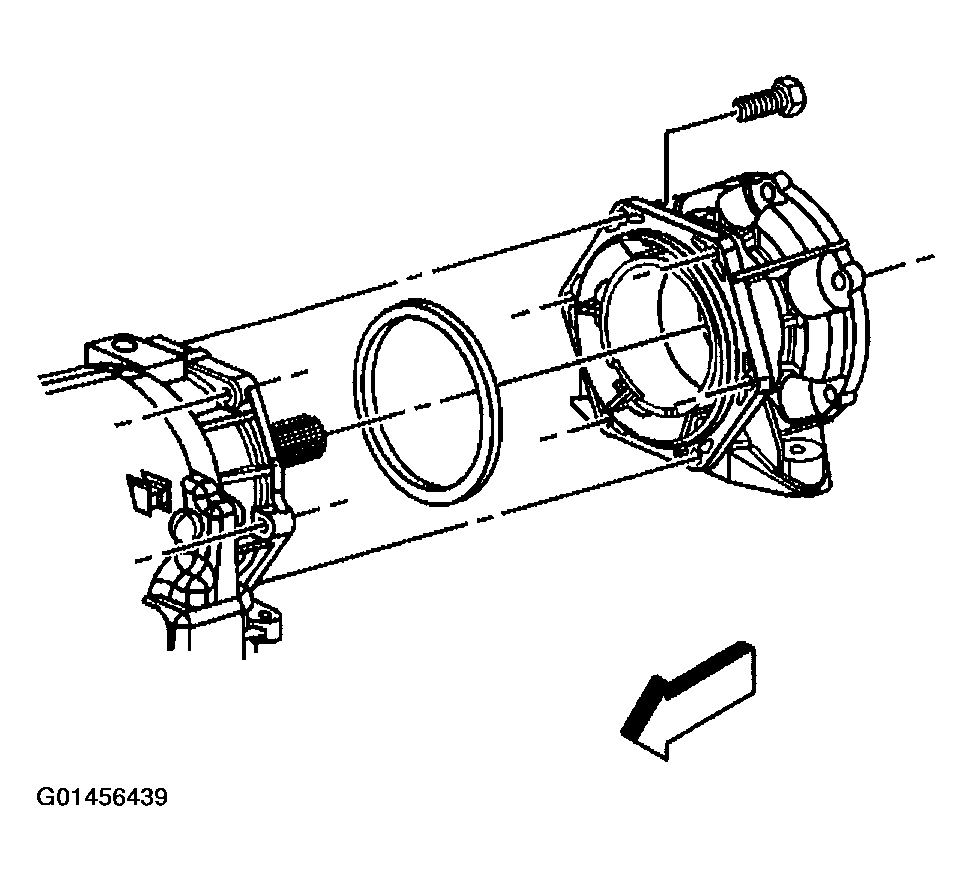

    Fig 1: Installing Transfer Case Adapter
    G01456439Courtesy of GENERAL MOTORS CORP.
