Transfer Case Shudder Or Binding Symptom

WARNING: This page is about a different car, the 2003 GMC Yukon, 2003 Cadillac Escalade EXT, 2003 Cadillac Escalade ESV, and 2003 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.

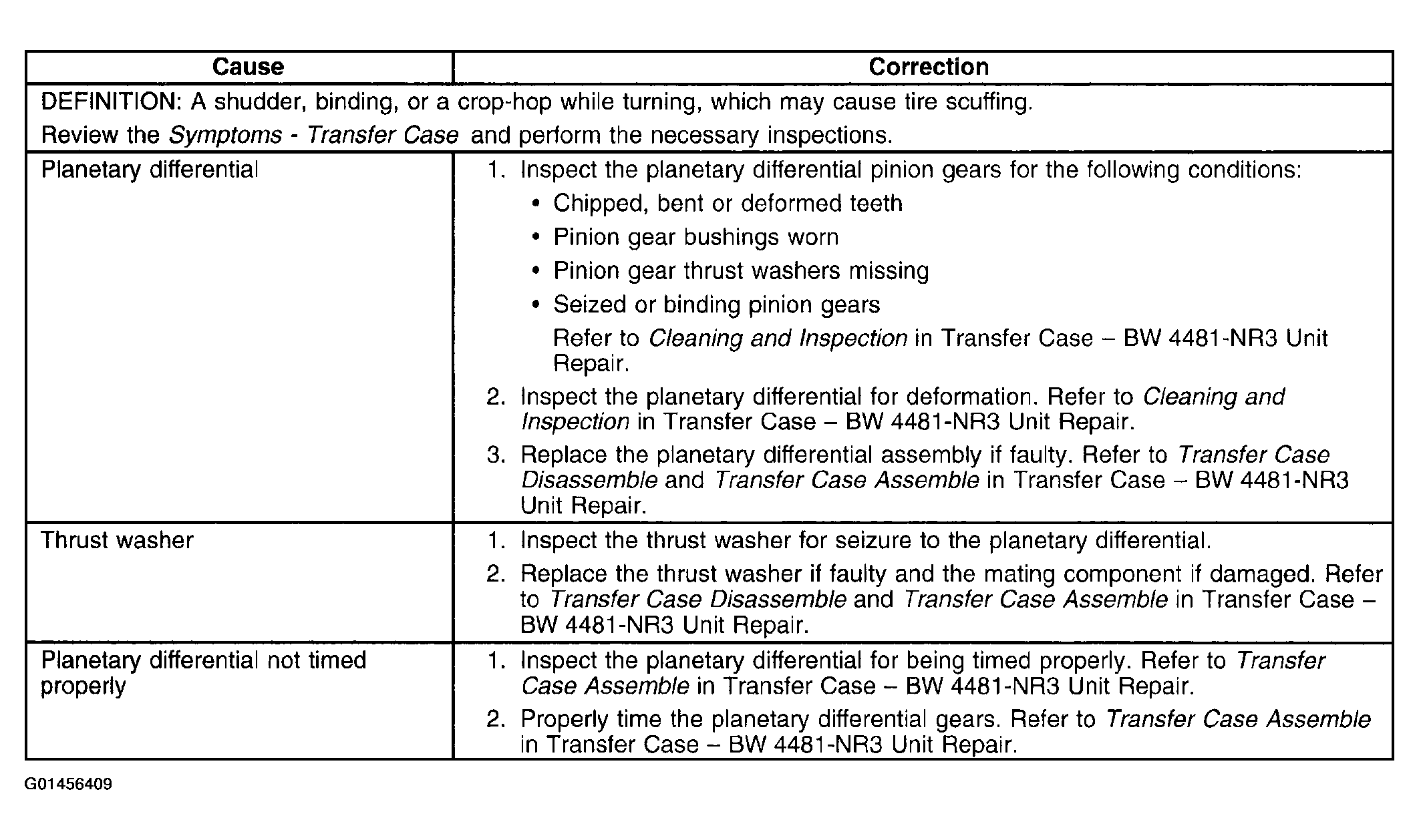

Fig 1: Transfer Case Shudder Or Binding Symptom Specifications
G01456409Courtesy of GENERAL MOTORS CORP.
