Transfer Case Clunk During Acceleration And Deceleration Symptom

WARNING: This page is about a different car, the 2003 GMC Yukon, 2003 Cadillac Escalade EXT, 2003 Cadillac Escalade ESV, and 2003 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Transfer Case Clunk During Acceleration And Deceleration Symptom Specifications (1 Of 2)
G01456410Courtesy of GENERAL MOTORS CORP.

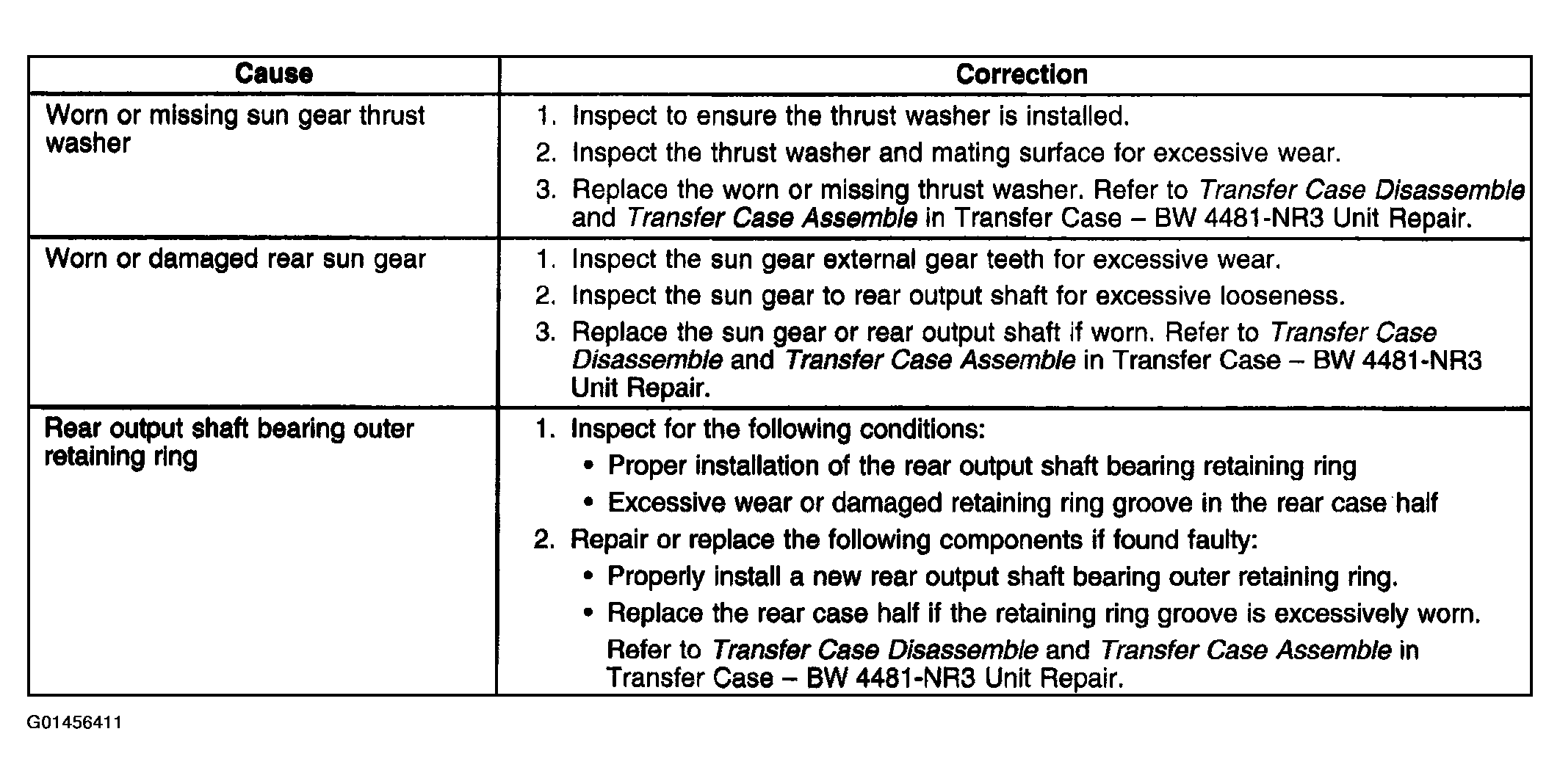

Fig 2: Transfer Case Clunk During Acceleration And Deceleration Symptom Specifications (2 Of 2)
G01456411Courtesy of GENERAL MOTORS CORP.
