Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Remove the flange bolts.
  4. Lightly tap the axle shaft with a soft-faced hammer in order to loosen the shaft.
  5. Grip the rib on the axle shaft flange with a locking pliers. Twist the axle shaft flange in order to start the axle shaft removal.
  6. Remove the axle shaft from the tube.
  7. Remove the gasket.
  8. Clean the axle shaft flange and the outside face of the hub assembly.

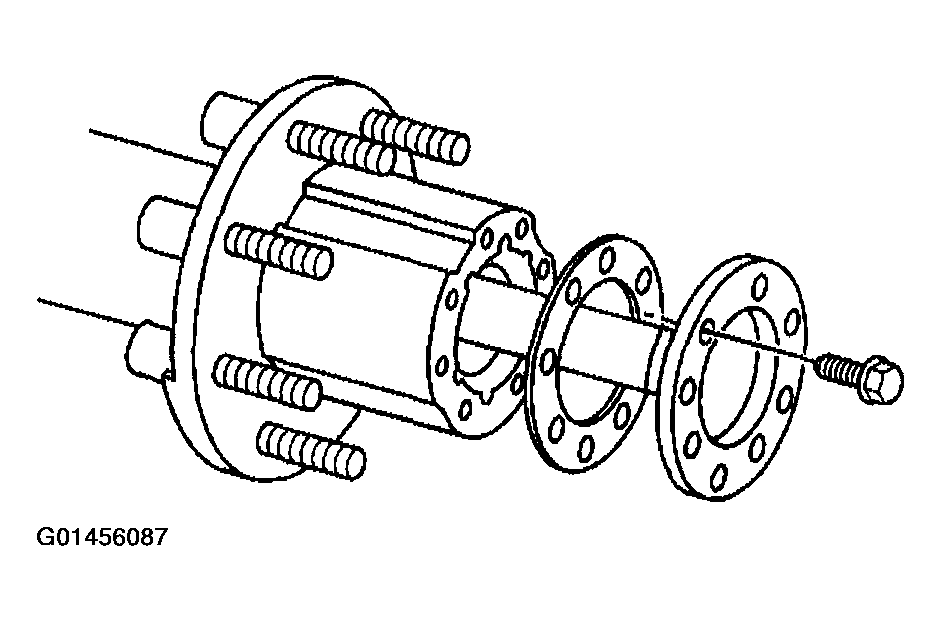

    Fig 1: Removing Rear Axle Shaft And/Or Gasket
    G01456087Courtesy of GENERAL MOTORS CORP.
