Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Assemble the drive bar extension on to the drive bar of J 33049.
  2. Insert the J 33049  into the opposite side axle shaft tube.
  3. Install the J 45177  onto the J 33049.
  4. Insert the axle shaft seal into the axle tube.

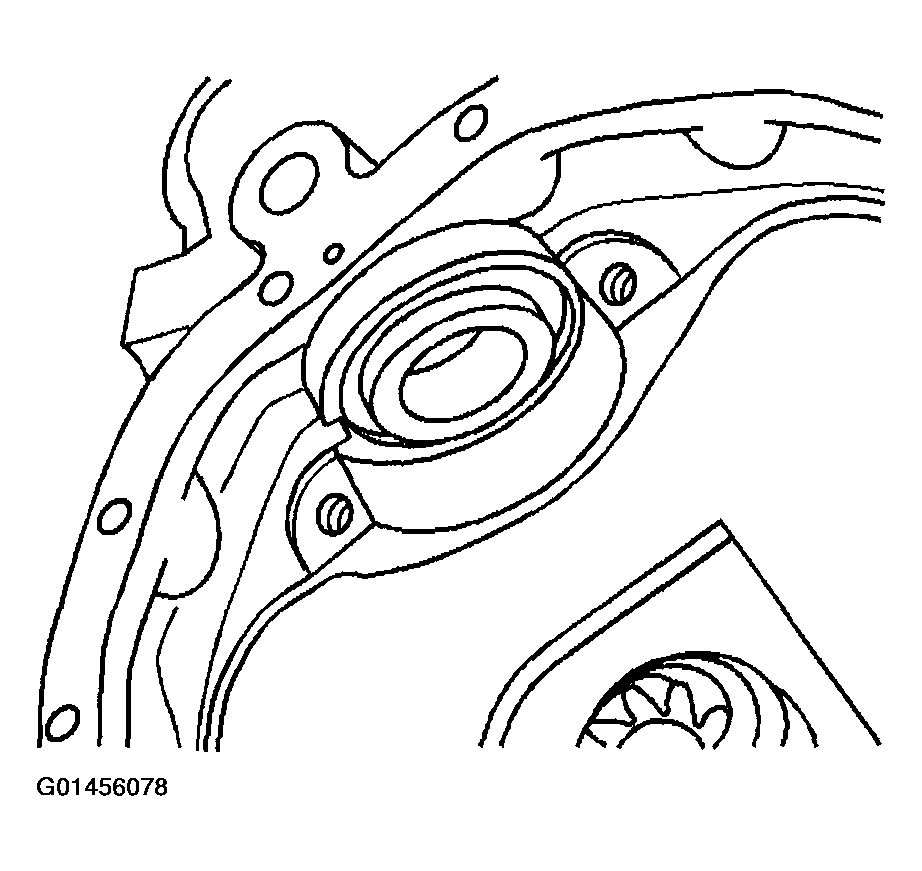

    Fig 1: Installing Rear Axle Shaft Seal - Inner (1 Of 2)
    G01456078Courtesy of GENERAL MOTORS CORP.
  5. Install the J 45177  (1) and the J 33049  (2) over the axle shaft seal.
  6. Drive the axle shaft seal into the axle tube using the J 45177  , the J 33049  and a hammer.
  7. Install the differential assembly. Refer to DIFFERENTIAL REPLACEMENT (8.6 INCH, 9.5 INCH AXLES)  or DIFFERENTIAL REPLACEMENT (9.75 INCH AXLE)  or DIFFERENTIAL REPLACEMENT (10.5 INCH AXLE)  .
  8. Install the axle shafts. Refer to REAR AXLE SHAFT REPLACEMENT (8.6 INCH AXLE W/O JL4, 9.5 INCH AXLE)  or REAR AXLE SHAFT REPLACEMENT (8.6 INCH AXLE W/JL4)  or REAR AXLE SHAFT REPLACEMENT (9.75 INCH AXLE)  .
  9. Install the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  10. Lower the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.

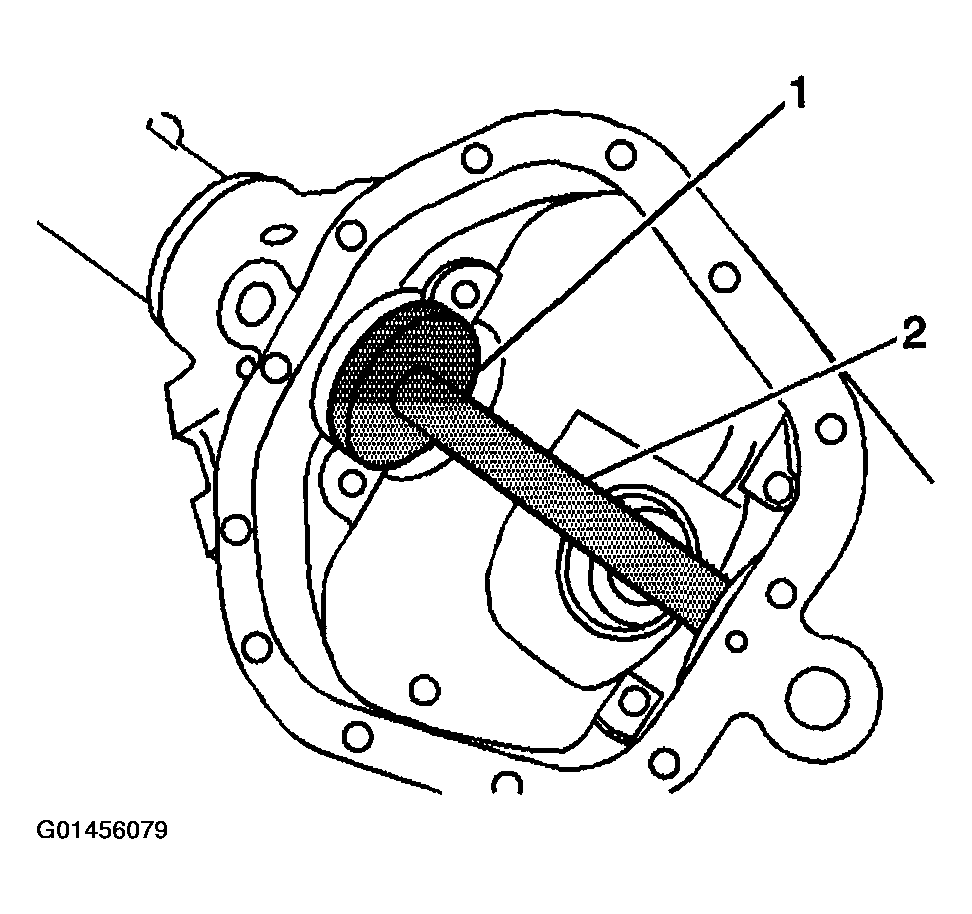

    Fig 2: Installing Rear Axle Shaft Seal - Inner (2 Of 2)
    G01456079Courtesy of GENERAL MOTORS CORP.
