Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the park brake.
  2. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  3. Remove the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  4. Remove the rear steering gear assembly. Refer to STEERING GEAR ACTUATOR AND COVER REPLACEMENT in Rear Wheel Steering.
  5. Remove the steering knuckle assembly. Refer to STEERING KNUCKLE REPLACEMENT in Rear Wheel Steering.
  6. Remove the lock clip from the axle shaft end. The lock clip is spring loaded and fits securely in the axle shaft slot and may need to be push off the shaft end with a screw driver or related tool. Pushing the axle shaft inwards towards the gears my help in removal of the lock clip.

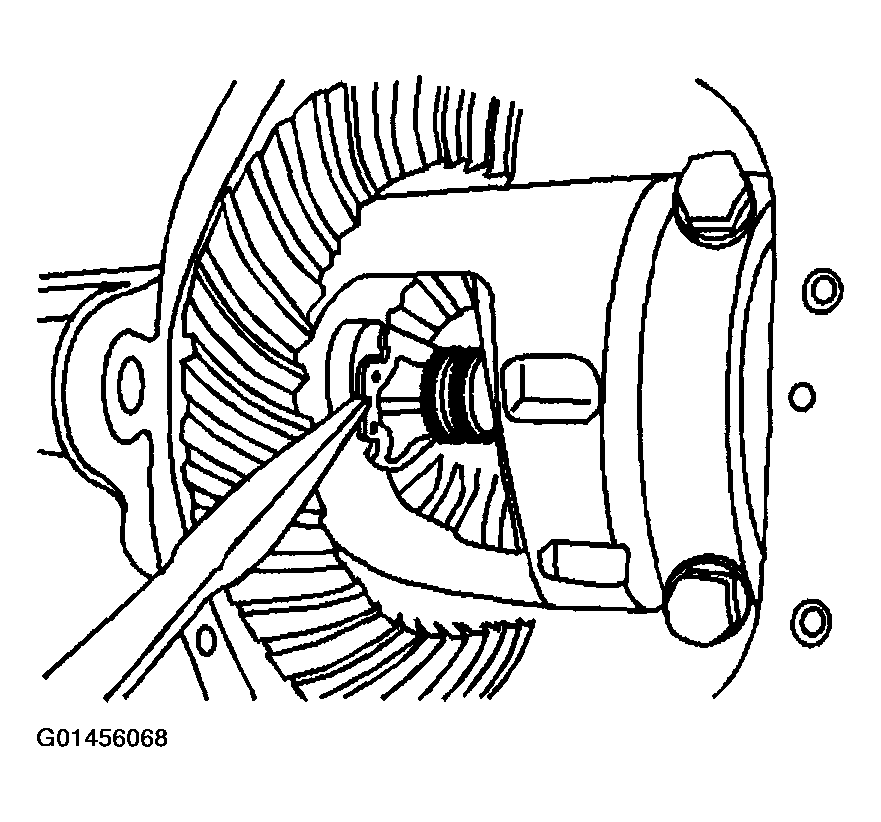

    Fig 1: Removing Rear Axle Shaft - 9.75 Inch Axle (1 Of 2)
    G01456068Courtesy of GENERAL MOTORS CORP.

    Important:  When removing the axle shaft do not rotate the shaft. Rotating the shaft will cause the gears to move. Misalignment of the gears will make the assembly difficult.

  7. Remove the axle shaft.

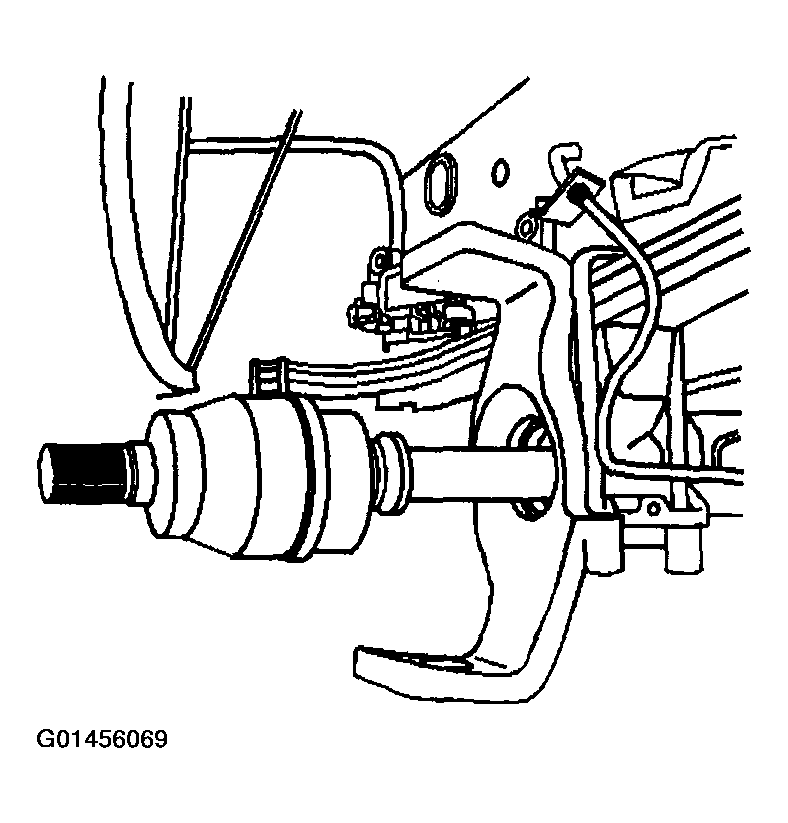

    Fig 2: Removing Rear Axle Shaft - 9.75 Inch Axle (2 Of 2)
    G01456069Courtesy of GENERAL MOTORS CORP.
