Installation Procedure
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Important: Carefully insert the axle shaft in order to not damage the seal.

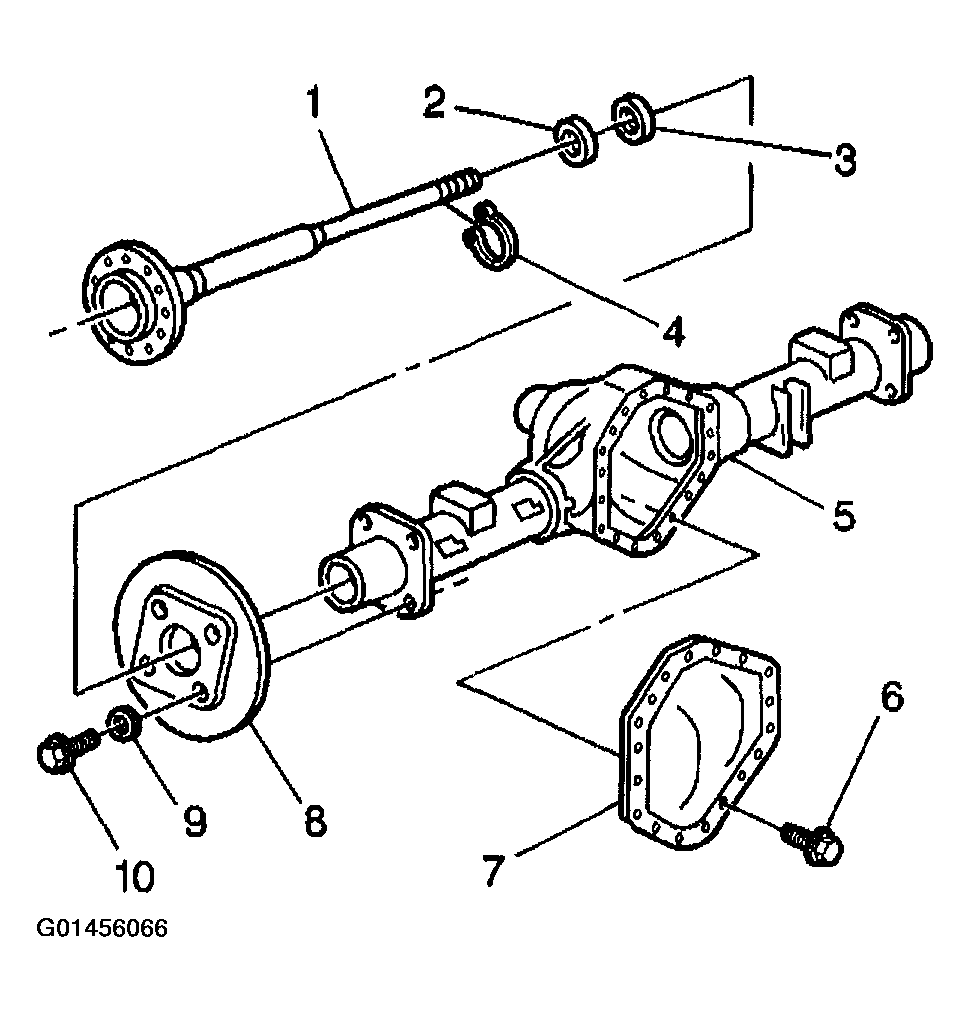

- Install the axle shaft (1) into the rear axle housing (5).
- Slide the axle shaft (1) into place allowing the splines to engage the differential side gear.
It may be necessary to tap the end of the axle shaft with a soft faced mallet as it is being installed to seat the wheel speed sensor ring on the axle.
- Place the lock (4) on the button end of the axle shaft (1).
- Pull the shaft flange outward in order to seat the lock in the differential gear.

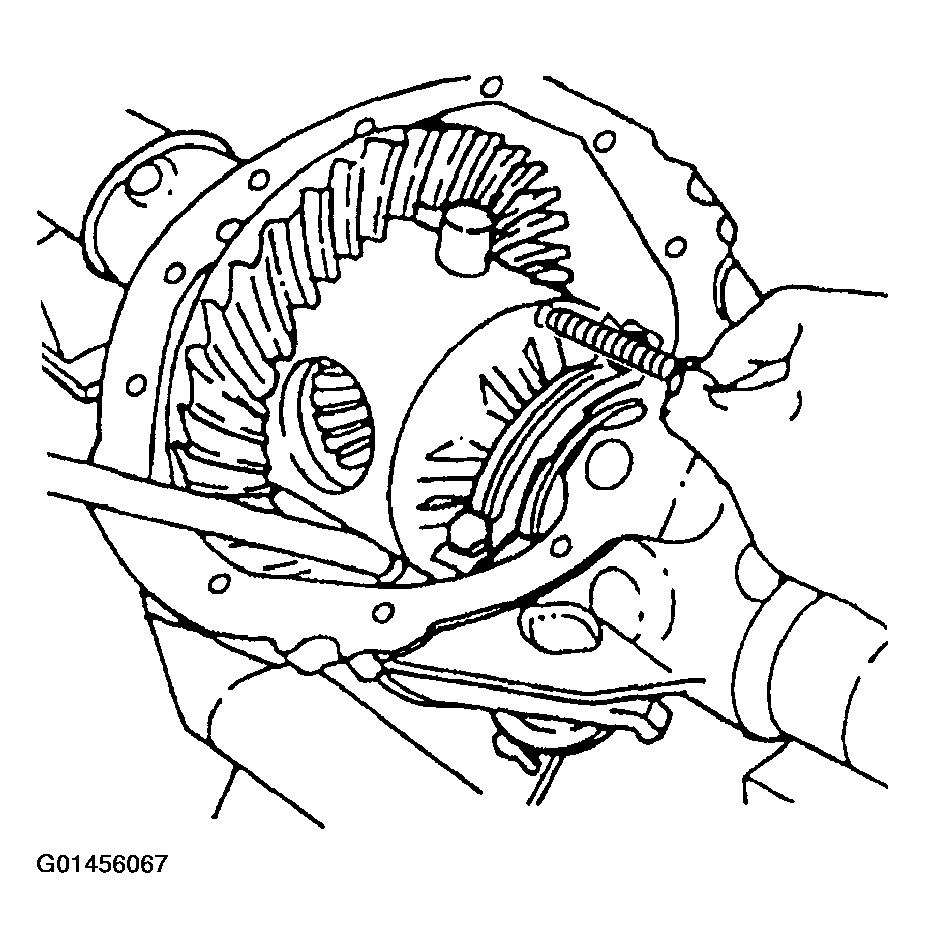

- Align the hole in the pinion shaft with the bolt hole in the differential case.NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Install the new pinion shaft locking bolt.
Tighten
Tighten the pinion shaft locking bolt to 36 N.m (27 lb ft).
- Install the rear cover and the gasket. Refer to REAR AXLE HOUSING COVER AND GASKET REPLACEMENT .
- Install the rear wheel speed sensor. Refer to WHEEL SPEED SENSOR REPLACEMENT -- REAR in Anti-lock Brake System.
- Install the brake caliper. Refer to BRAKE CALIPER in Disc Brakes.
- Install the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
- Fill the rear axle. Refer to LUBRICANT REPLACEMENT - REAR DRIVE AXLE (8.6 INCH AXLE) or LUBRICANT REPLACEMENT - REAR DRIVE AXLE (9.5, 10.5 INCH AXLE) or LUBRICANT REPLACEMENT - REAR DRIVE AXLE (9.75 INCH AXLE) .
- Lower the vehicle.
