Tools Required

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Make sure all of the tools, the differential side bearing bores, and the pinion bearing cups are clean before proceeding.

  1. Lubricate the pinion bearings with axle lubricant.
  2. Install the pinion bearings into the axle housing.
  3. Assemble the following components into the axle housing:
    • For the 8.6 in axle, assemble the J 21777-35 (1), the J 21777-43 (2), the J 21777-42 (3), and the J 21777-29 (4) as shown.
    • For the 9.5 in axle, assemble the J 21777-8 (1), the J 21777-43 (2), the J 21777-42 (3), and the J 21777-85 (4) as shown.

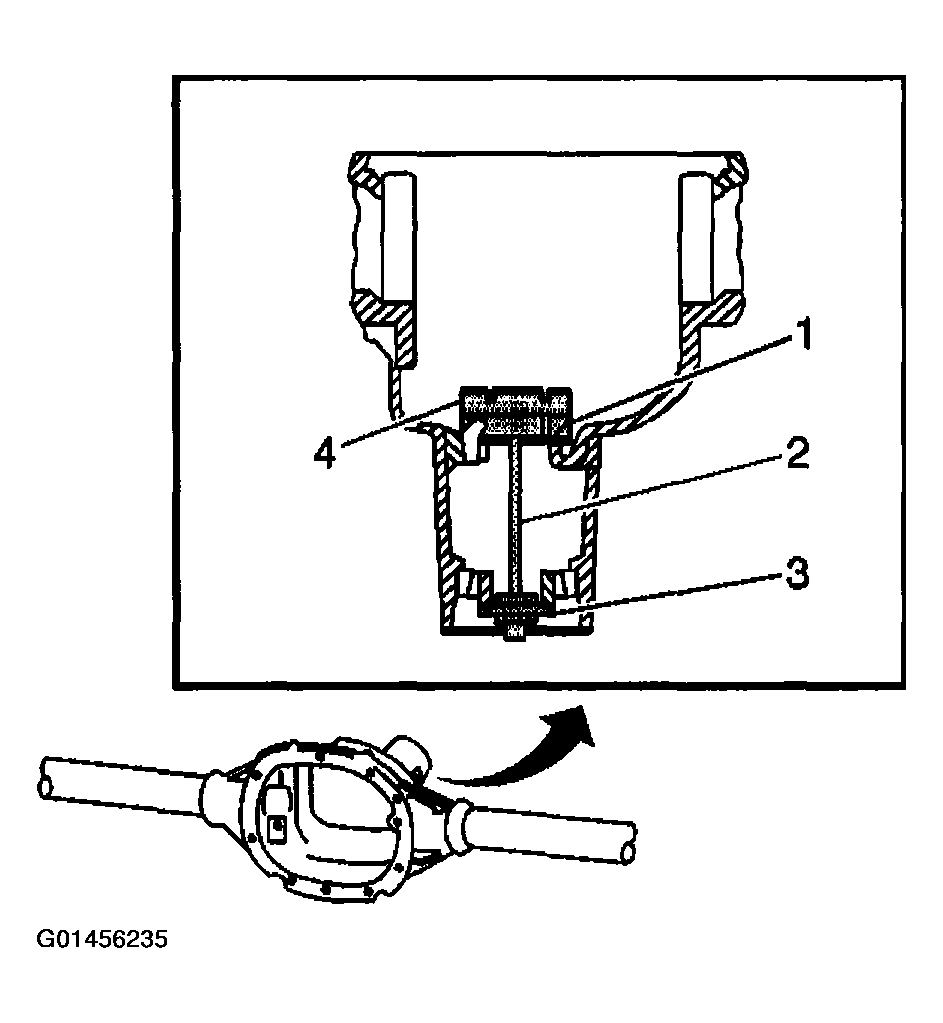

    Fig 1: Adjusting Pinion Depth - 8.6 Inch, 9.5 Inch Axles (1 Of 4)
    G01456235Courtesy of GENERAL MOTORS CORP.
  4. While holding the J 21777-43 stationary, install an inch-pound torque wrench on the nut of the J 21777-43 and tighten the nut until a rotating torque of 1.7 N.m (15 lb in) is obtained.

    Rotate the assembly several times in both directions in order to seat the pinion bearings.

  5. Check the rotating torque of the assembly. If the torque is less than 1.7 N.m (15 lb in), tighten the nut on the J 21777-43 until a rotating torque of 1.7-2.3 N.m (15-20 lb in) is obtained.
  6. Assemble the following components into the differential carrier bore of the axle housing:
    • For the 8.6 in axle, assemble the J 21777-45 (1, 2) to the J 21777-1 (3) as shown.
    • For the 9.5 in axle, assemble the J 21777-86 (1, 2) to the J 21777-1 (3) as shown.
  7. Install the bearing caps.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  8. Install the bearing cap bolts.

    Tighten:

    Tighten the bearing cap bolts to 75 N.m (55 lb ft).

  9. Rotate the J 21777-1 within the J 21777-45, 8.6 inch axle, or the J 21777-86  , 9.5 inch axle. The J 21777-1 must rotate back and forth freely within the discs. If the J 21777-1 does not rotate freely, disassemble the components, inspect for proper seating and/or mis-aligned components and re-assemble.

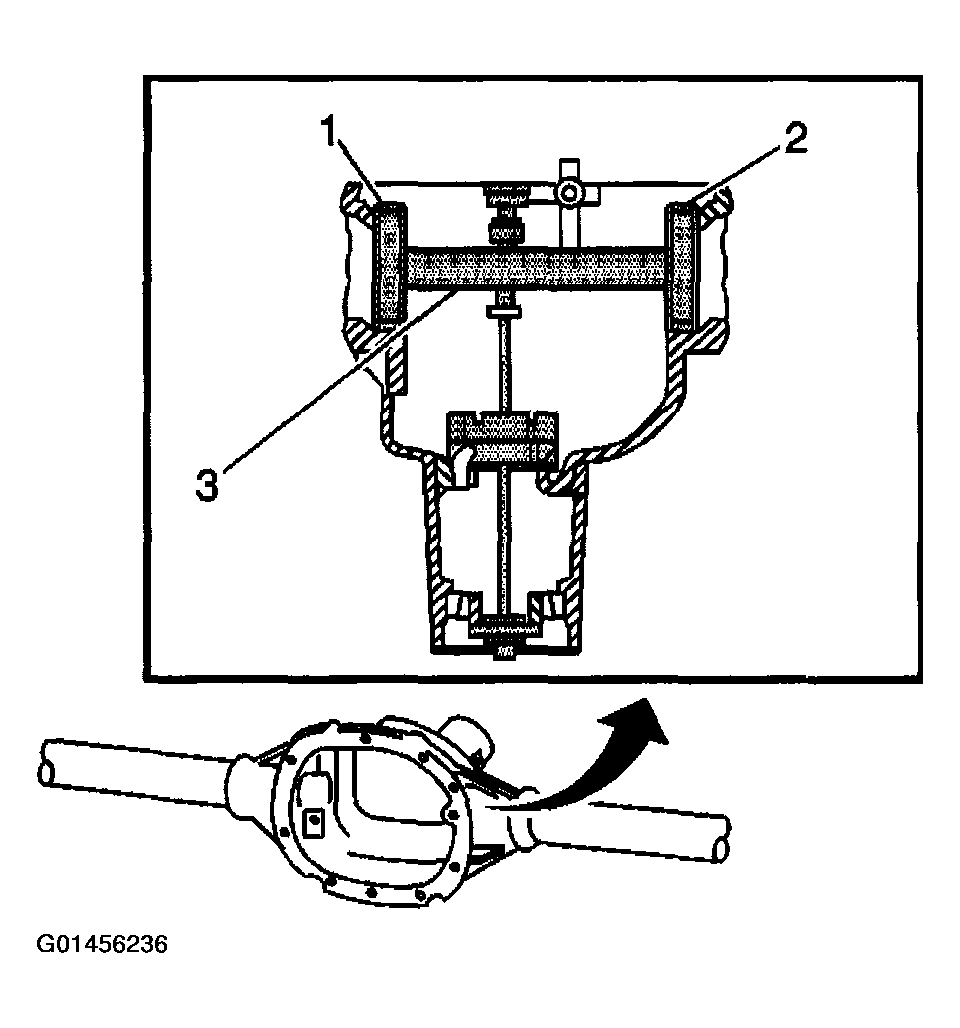

    Fig 2: Adjusting Pinion Depth - 8.6 Inch, 9.5 Inch Axles (2 Of 4)
    G01456236Courtesy of GENERAL MOTORS CORP.
  10. Align the plunger of the J 21777-1 (1) to the 8.5 in gage block setting of the J 21777-29, 8.6 inch axle, or the J 21777-85  , 9.5 inch axle (2).
  11. Install the J 8001  to the J 21777-1 as follows:
    1. Loosely clamp the J 8001  onto the stem on the J 21777-1.
    2. Place the contact pad of the J 8001  onto the mounting post of the J 21777-1.
    3. With the contact pad of the J 8001  touching the mounting post of the J 21777-1, loosen the lock nut on the J 8001  and push down on the J 8001  until the needle the J 8001  has turned 3/4 of a turn clockwise.
    4. Tighten the clamp on the J 8001  finger tight.

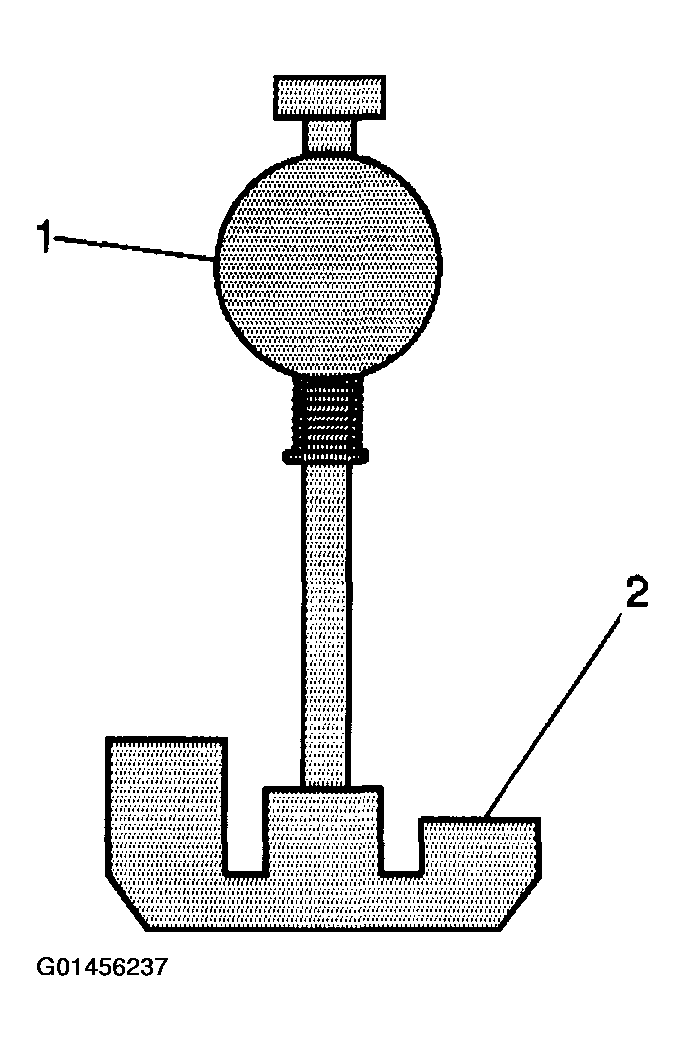

    Fig 3: Adjusting Pinion Depth - 8.6 Inch, 9.5 Inch Axles (3 Of 4)
    G01456237Courtesy of GENERAL MOTORS CORP.
  12. Move the plunger of the J 21777-1 back and forth until the needle of the J 8001  indicates the greatest deflection.

    The deflection is the point where the needle changes direction.

  13. At the greatest point of deflection, move the housing of the J 8001  until the needle indicates zero.
  14. Move the plunger of the J 21777-1 back and forth again to verify the zero setting. Adjust the housing of the J 8001  as necessary to set the needle to zero.
  15. Rotate the plunger of the J 21777-1 away from the J 21777-29, 8.6 inch axle, or the J 21777-85  , 9.5 inch axle, until it no longer touches the J 21777-29 or the J 21777-85  .
  16. The value indicated on the J 8001  is the thickness of the shim needed in order to set the depth of the pinion.
  17. Select the shim that indicates the proper thickness. Measure the shim with a micrometer in order to verify that the thickness is correct
  18. Remove the pinion depth setting tools.
  19. Remove the pinion bearings.
  20. Install the pinion shim between the pinion gear and the inner pinion bearing. Refer to DRIVE PINION BEARINGS REPLACEMENT (8.6, 9.5 INCH AXLES)  or DRIVE PINION BEARINGS REPLACEMENT (9.75 INCH AXLE)  or DRIVE PINION BEARINGS REPLACEMENT (10.5 INCH AXLE)  .

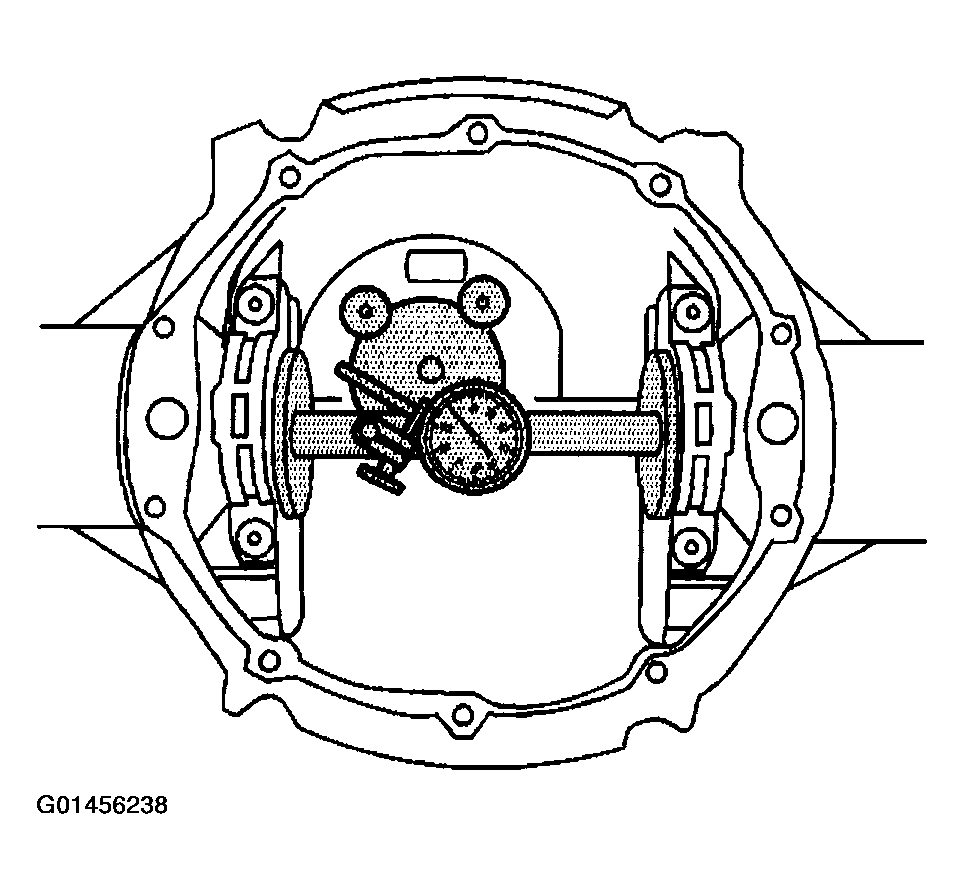

    Fig 4: Adjusting Pinion Depth - 8.6 Inch, 9.5 Inch Axles (4 Of 4)
    G01456238Courtesy of GENERAL MOTORS CORP.
