Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the differential assembly. Refer to DIFFERENTIAL REPLACEMENT (8.6 INCH, 9.5 INCH AXLES)  or DIFFERENTIAL REPLACEMENT (9.75 INCH AXLE)  or DIFFERENTIAL REPLACEMENT (10.5 INCH AXLE)  .
  3. Remove the differential side bearing by performing the following steps:
    1. Install the J 45711  (2) and the J 36597  (1) as shown.
    2. Remove the differential side bearing using the J 45711  and a hydraulic press.

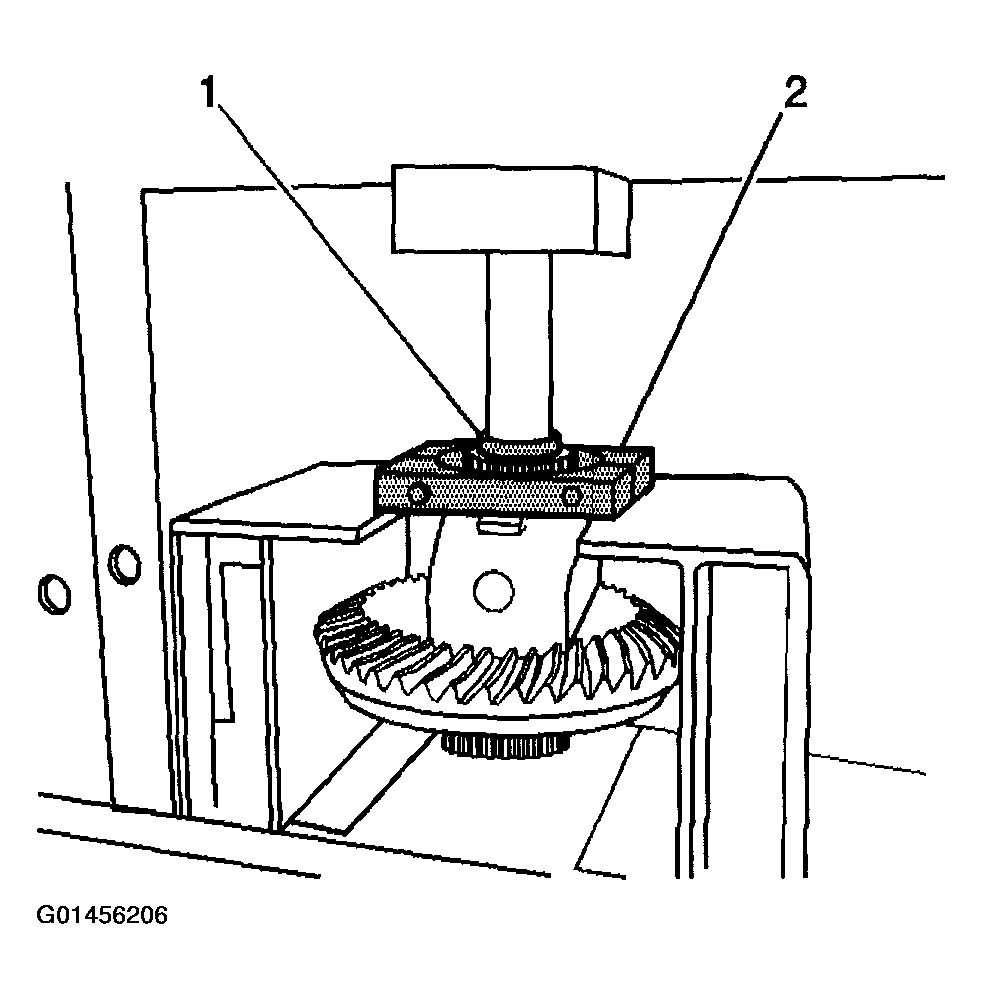

    Fig 1: Removing Differential Side Bearing (9.75 Inch Axle)
    G01456206Courtesy of GENERAL MOTORS CORP.

    Important:  Mark the inboard shims left or right.

  4. Remove the inboard shims.
