Disassembly Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Remove the differential side bearings by performing the following steps:
1. Place a block of wood on each side of the differential case before installing the differential case into the vise.
  Install the differential assembly into a vise.
2. Install the J 8107-3 (1) and the J 22888-20A (2) onto the differential side bearing.
3. Remove the differential side bearings using the J 22888-20A .
Important: The ring gear bolts have left-hand threads.
Remove the ring gear bolts.
NOTE: Refer to RING GEAR REMOVAL NOTICE in Cautions and Notices.
Remove the ring gear from the differential case.
Drive the ring gear off with a brass drift if necessary.
Separate the differential case assembly.

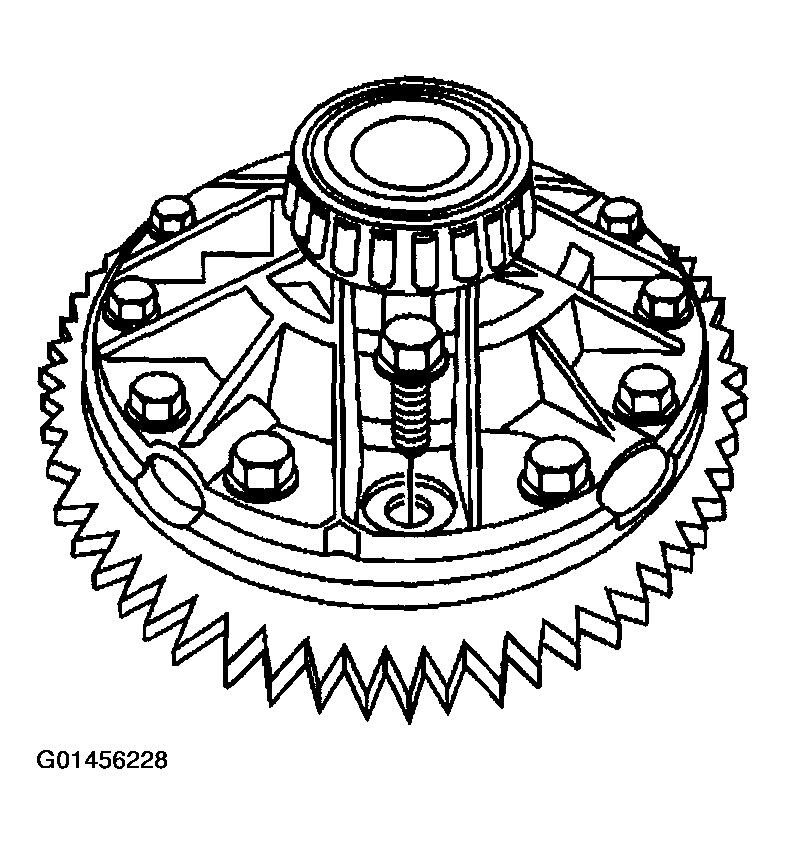

Fig 1: Disassembling Differential - 10.5 Inch Axle (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

Important: If the differential pinion gears, the differential side and the thrust washers are to be reused, mark the components so they can be re-installed in their original location in the differential case.
Remove the following from the differential case:
- The thrust washers
- The differential pinion gears
- The differential pinion spider

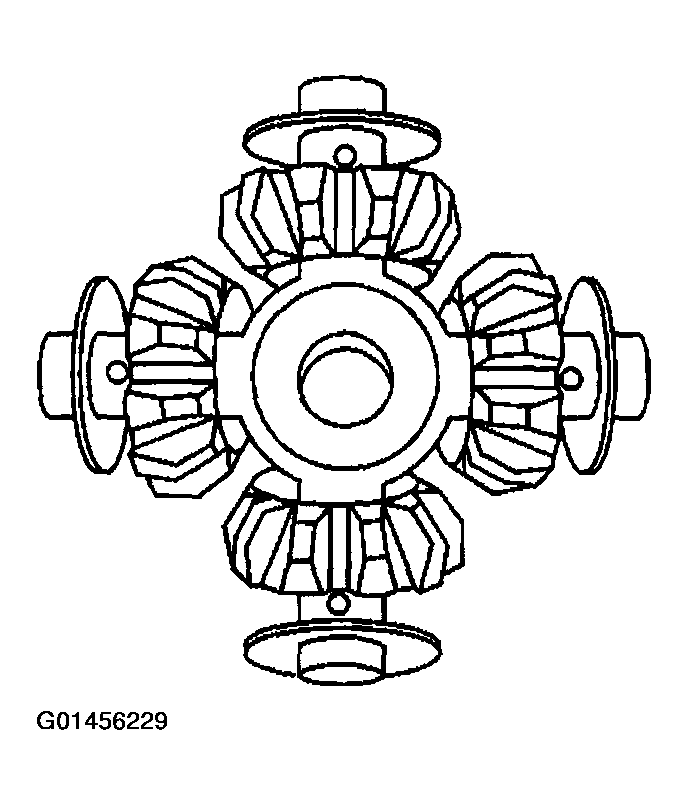

Fig 2: Disassembling Differential - 10.5 Inch Axle (2 Of 3)
Courtesy of GENERAL MOTORS CORP.
Remove the differential side gears.

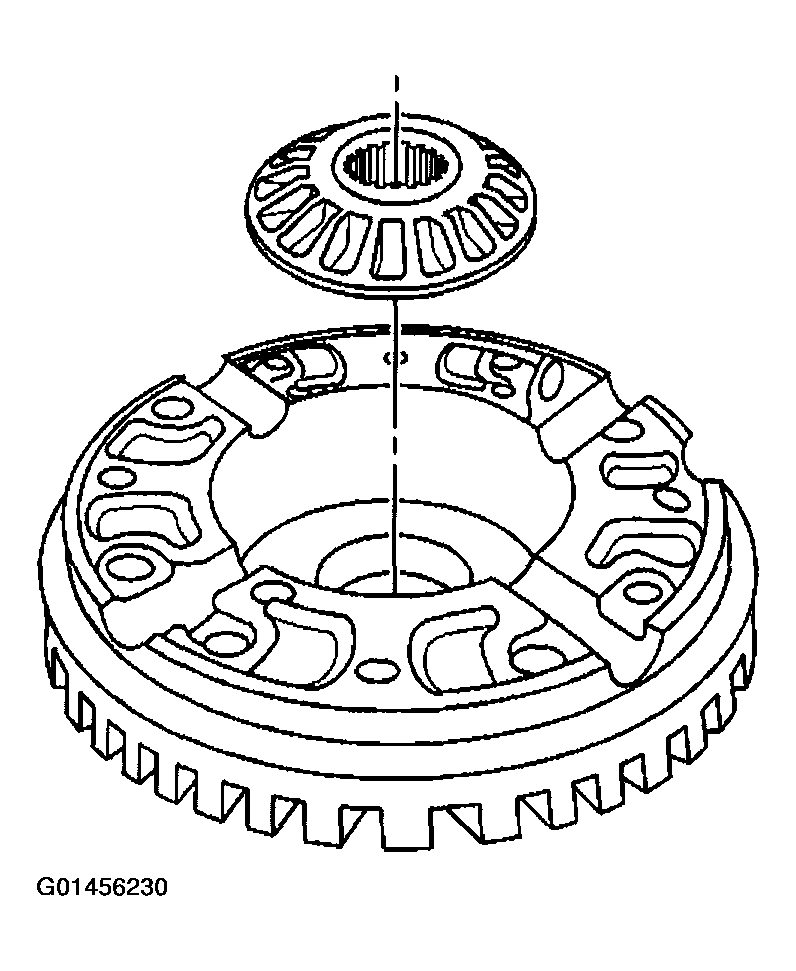

Fig 3: Disassembling Differential - 10.5 Inch Axle (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
