Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper trim panel. Refer to GARNISH MOLDING REPLACEMENT - REAR DOOR FRAME  .
  2. Slide the trim panel upward to disengage the mounting hooks.
  3. Remove the trim panel from the rear door.

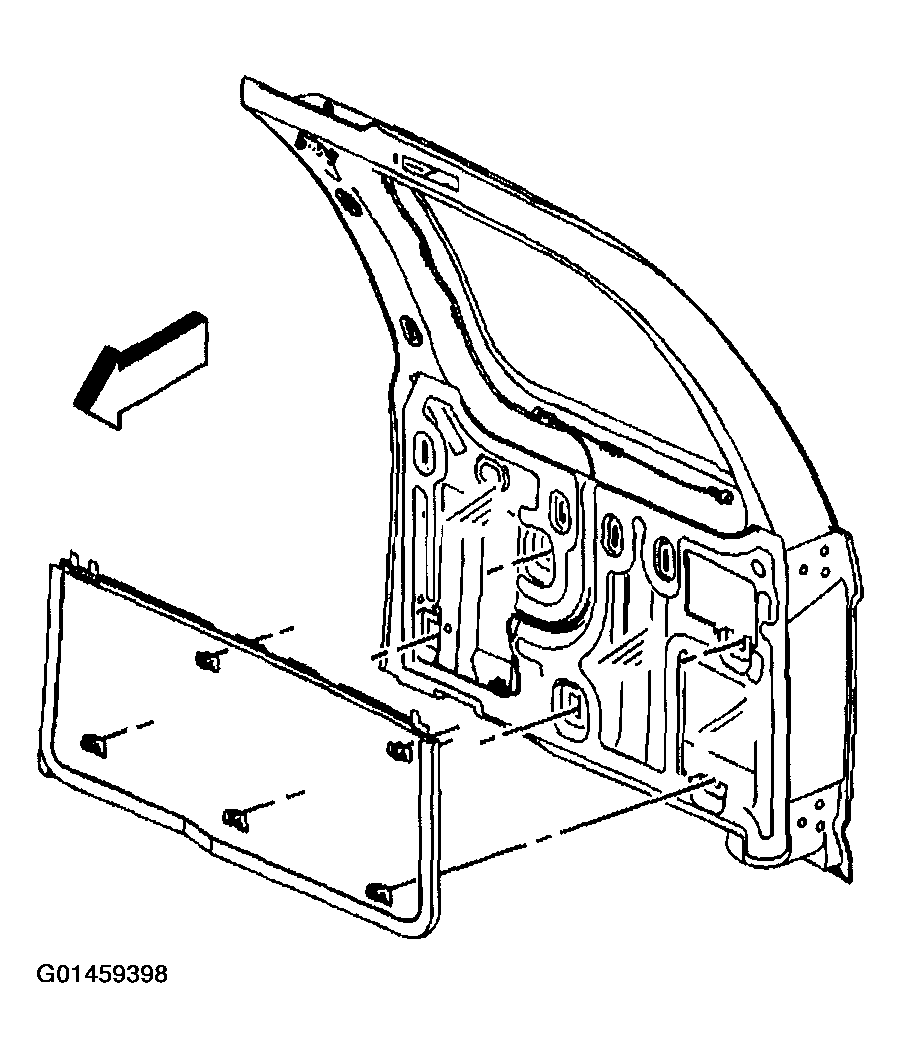

    4. Fig 1: Removing Trim Panel From Rear Door
    G01459398Courtesy of GENERAL MOTORS CORP.
